THE VELDURO PHANTOM

WHY E-GRAVEL?

E-gravel riding gives you the freedom to explore and navigate off-road terrain whilst still enjoying the geometry and speed that comes with a road/gravel frame set. With gravel and rail trails now stretching for long distances across increasingly challenging terrain, the team at Velduro wanted to create a light-weight, DJI powered, e-gravel machine that would allow riders of all skill and fitness levels the freedom to explore these trails with ease.

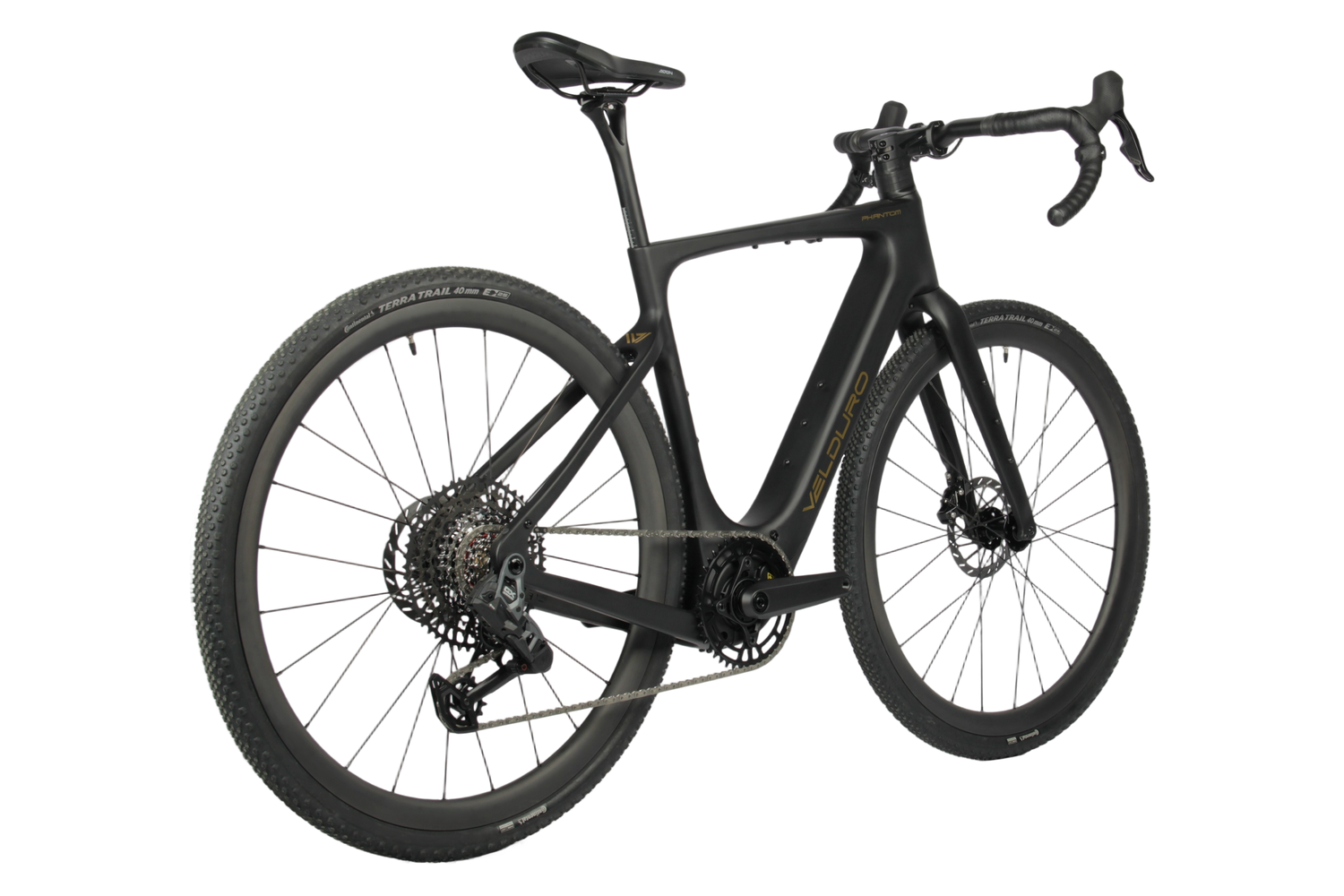

The Phantom is the ultimate e-gravel machine. Our e-gravel model has not compromised weight, strength, quality or tyre size. We have collaborated with gravel riders to create the ultimate ride - allowing the freedom to explore and conquer any terrain put in front of them. The combination of our light-weight carbon frame, gear set and the DJI powered Avinox motor system make the Phantom the fastest and most versatile e-gravel on the market.

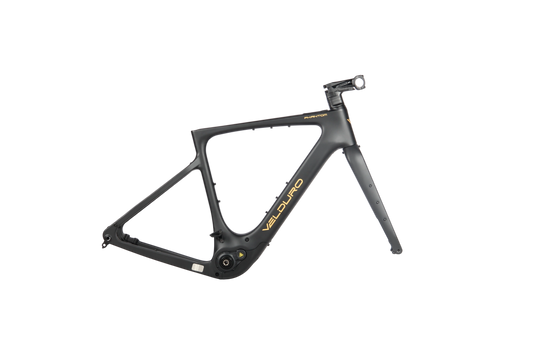

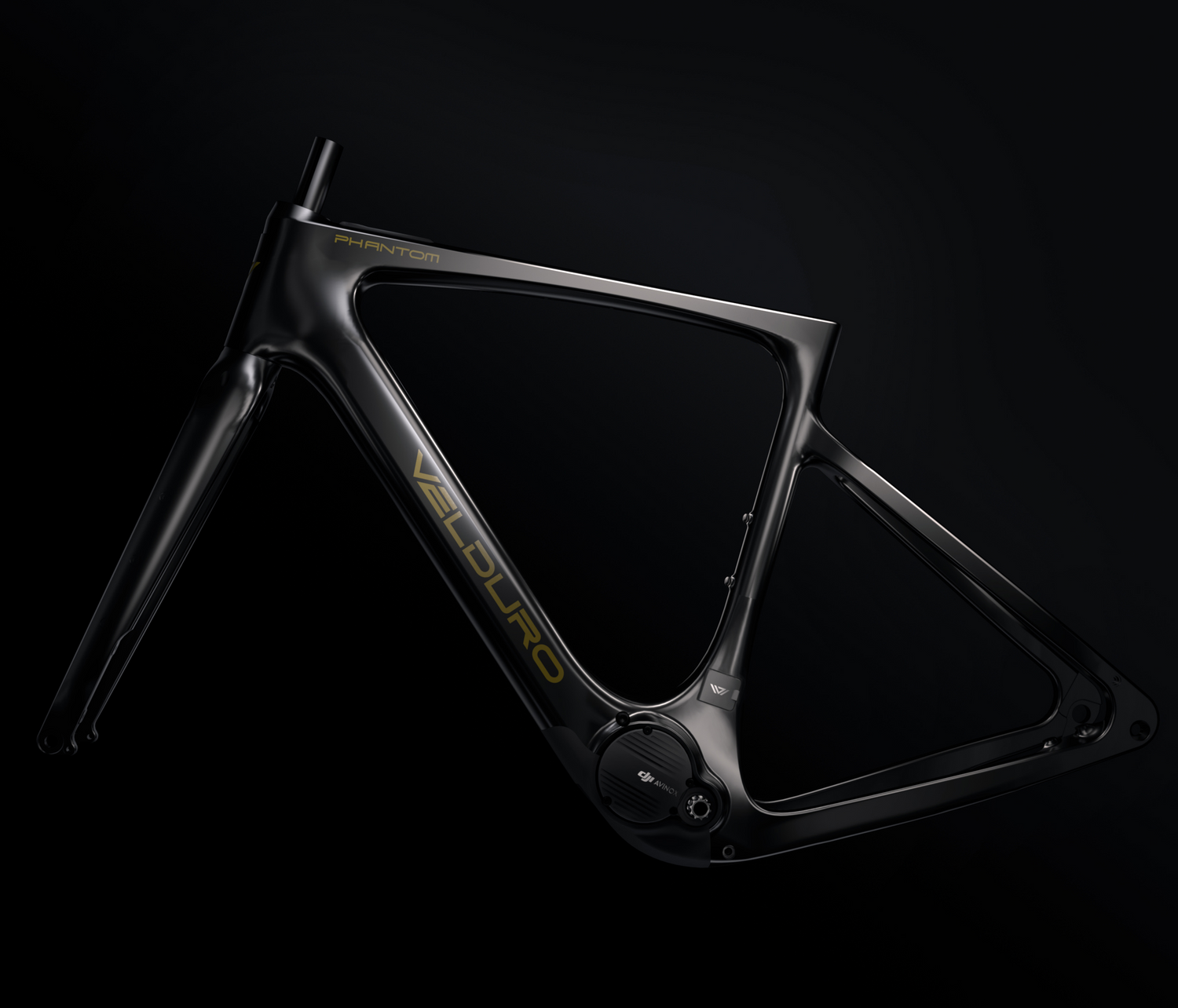

The Phantom's frame set and geometry was designed over two years and tested on some of New Zealand's most unforgiving trails. We abandoned glued carbon joints for monolith molding (a single giant mold that fuses the entire frame with precision). The EPS core tech eradicates all internal molds, leaving a pristine frame and eliminating weak points. This innovation slashes weight by 25% while boosting strength by 20%. Slack head angles for steep descents, shorter chainstays for agility, and the DJI Avinox motor system for stability and speed. The Phantom was built to conquer all terrain.

With bike packing taking off globally we added six fork mounts, eight main triangle mounts, and rear rack compatibility.
Each anchor is CNC-machined for durability and positioned to balance weight and avoid toe overlap. The Phantom is the ultimate all-rounder.
With SRAM's Universal Derailleur Hanger (UDH) this durable design can withstand rock strikes and simplifies replacements mid-ride. Paired with clearance for 50c tires, the Phantom dominates loose gravel, rocky trails and extreme climbs.

Powered by AVINOX

Velduro is powered by the DJI Avinox lightweight mid-drive system with up to 1000 Watts of power and 105nm of continuous torque (120nm in boost mode). The DJI Avinox system provides an unrivalled combination of power, range and intelligent control, all in an ultra-light motor system. With GaN fast charging taking the battery from 0% to 75% in approximately 1.5 hours

LEARN MORE ABOUT AVINOX TECHNOLOGY

Frame Specifications

Headset: IS52/28.6 | IS52/40

Fork: Suspension fork suitable

Seatpost: 27.2, max insertion depth medium frame 280mm, electronic and mechanical dropper compatible

Dropper cable length: approx. 1100mm

Brake mount: Rigid fork post mount 140mm, frame flat mount 160mm

Front brake hose length: approx. 900mm

Rear brake hose length: approx. 1500mm

Max chainring size: 44T

Cranks: recommended max length 165mm, 0mm offset suitable

Shifting: electronic or mechanical compatible, Sram or Shimano compatible

Mechanical shift cable length: approx. 1650mm

Deraillier hanger: UDH

Rear axle spacing: 12x142mm

Rear tyre clearance: 50C

Geometry

Section image
S M L XL
A Seat tube length (mm) 466 486 506 526
B Top Tube Horizontal (mm) 520 534 551 565
C Top Tube Actual (mm) 495 515 534 548
D Head Tube Angle 70° 70.5° 71° 71°
E Seat Tube Angle 74.4° 74.1° 73.6° 73.6°
F Standover (mm) 772 785 815 830
G Head Tube Length (mm) 135 147 159 179
H Wheelbase (mm) 1015 1019 1030 1040
I Front Center (mm) 600 605 606 620
J Chain Stay Length (mm) 425 425 430 430
K Bottom Bracket Drop (mm) 72.5 72.5 72.5 72.5
L Bottom Bracket Height (mm) 283 283 283 283
M Fork Rake (mm) 50 50 50 50
N Trail (mm) 64 63 63 63
O Stack (mm) 554 567 581 600
P Reach (mm) 366 372 377 385
Q Axle to Crown (mm) 395 395 395 395
Recommended rider height (cm) 160-170 172-182 180-188 185-195

WHY THREE PHANTOM MODELS?

We believe gravel isn't a one-size-fits-all pursuit. The Phantom is split into 3 models: S/X/R or frame only. Whether you're a commuter dodging traffic, an explorer riding forgotten trails, or a racer craving speed, there is a Phantom model that suits your riding style. With the DJI avinox motor and Velduro's design, the Phantom is unstoppable.
