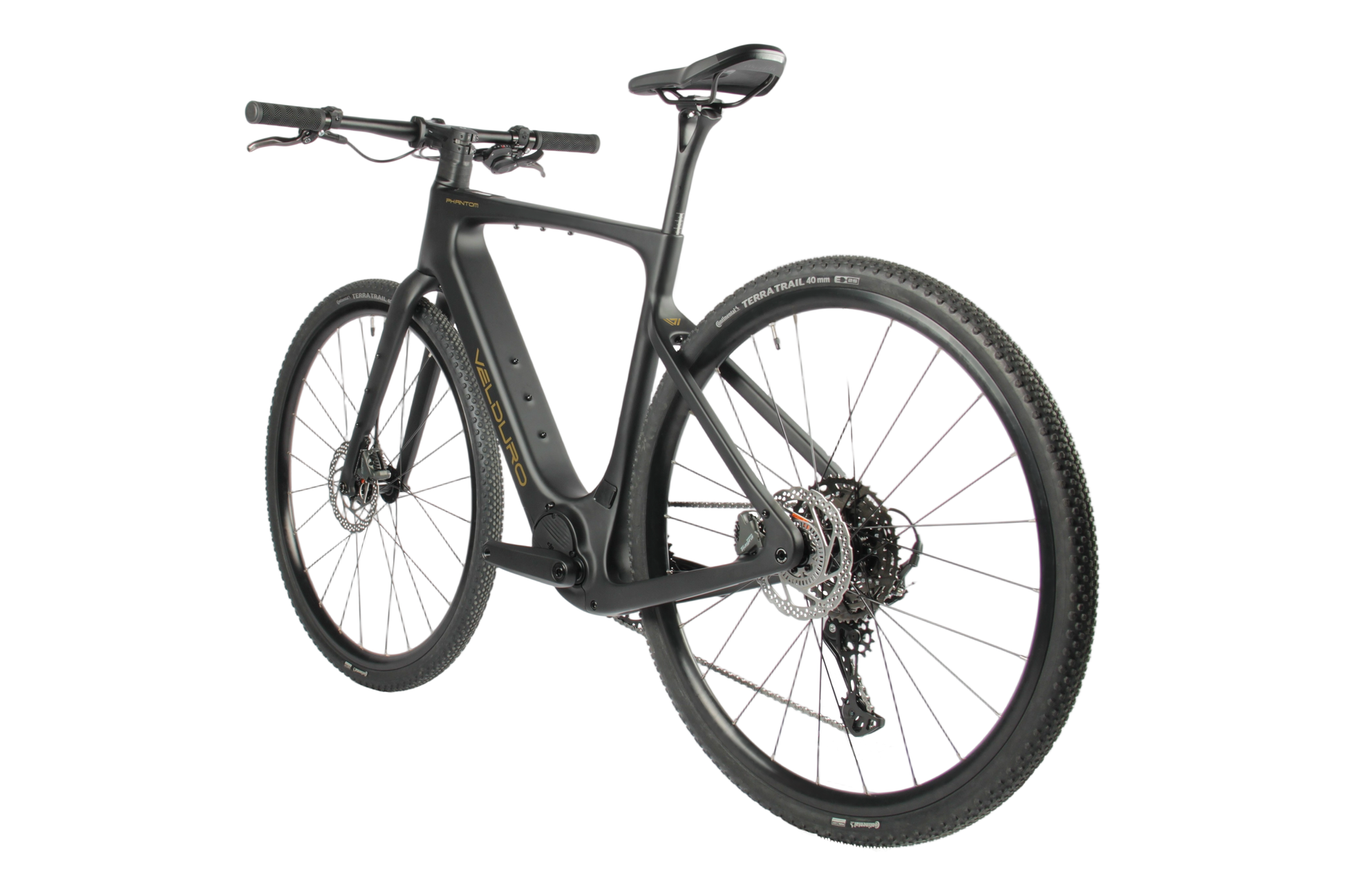

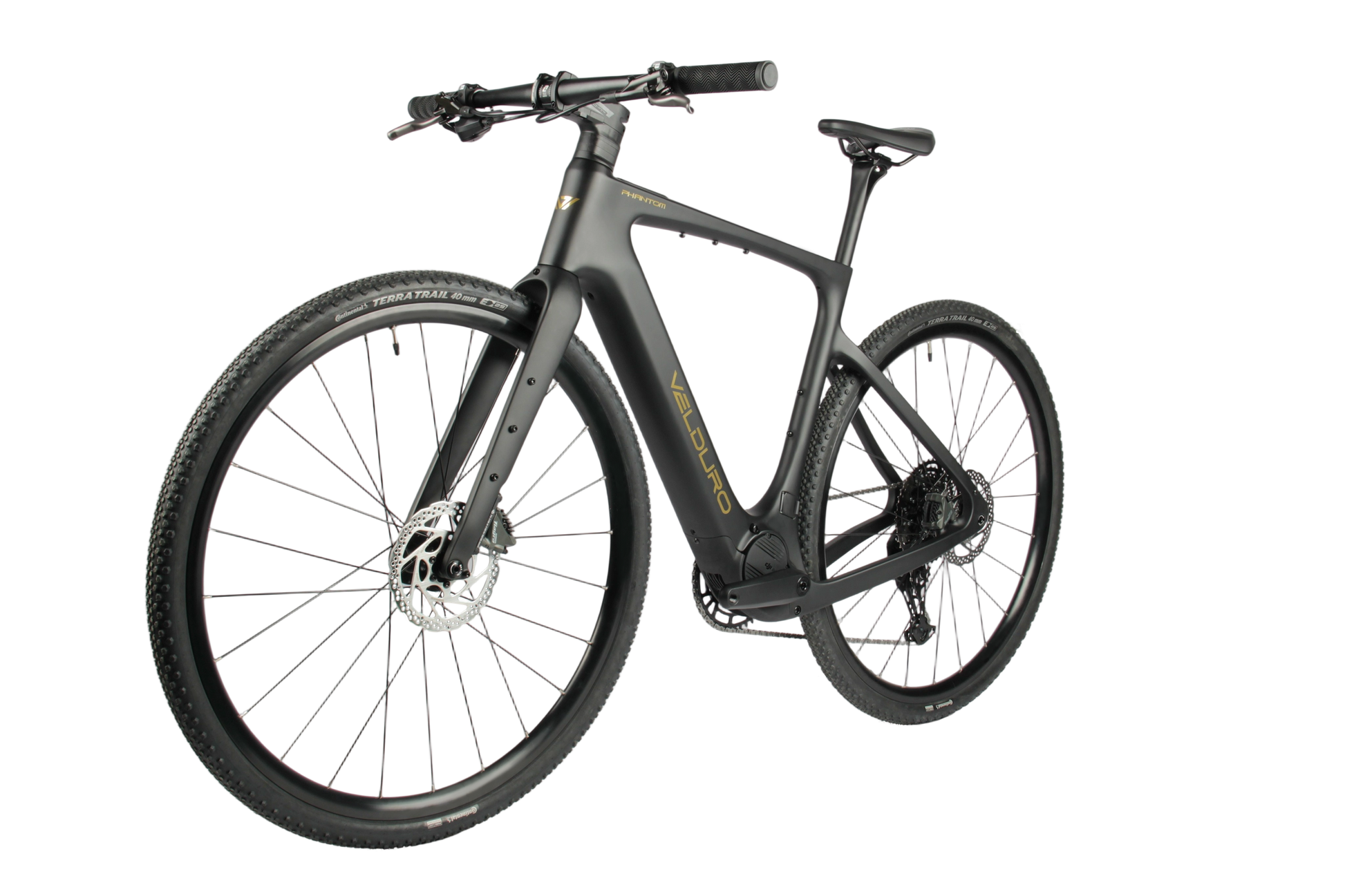

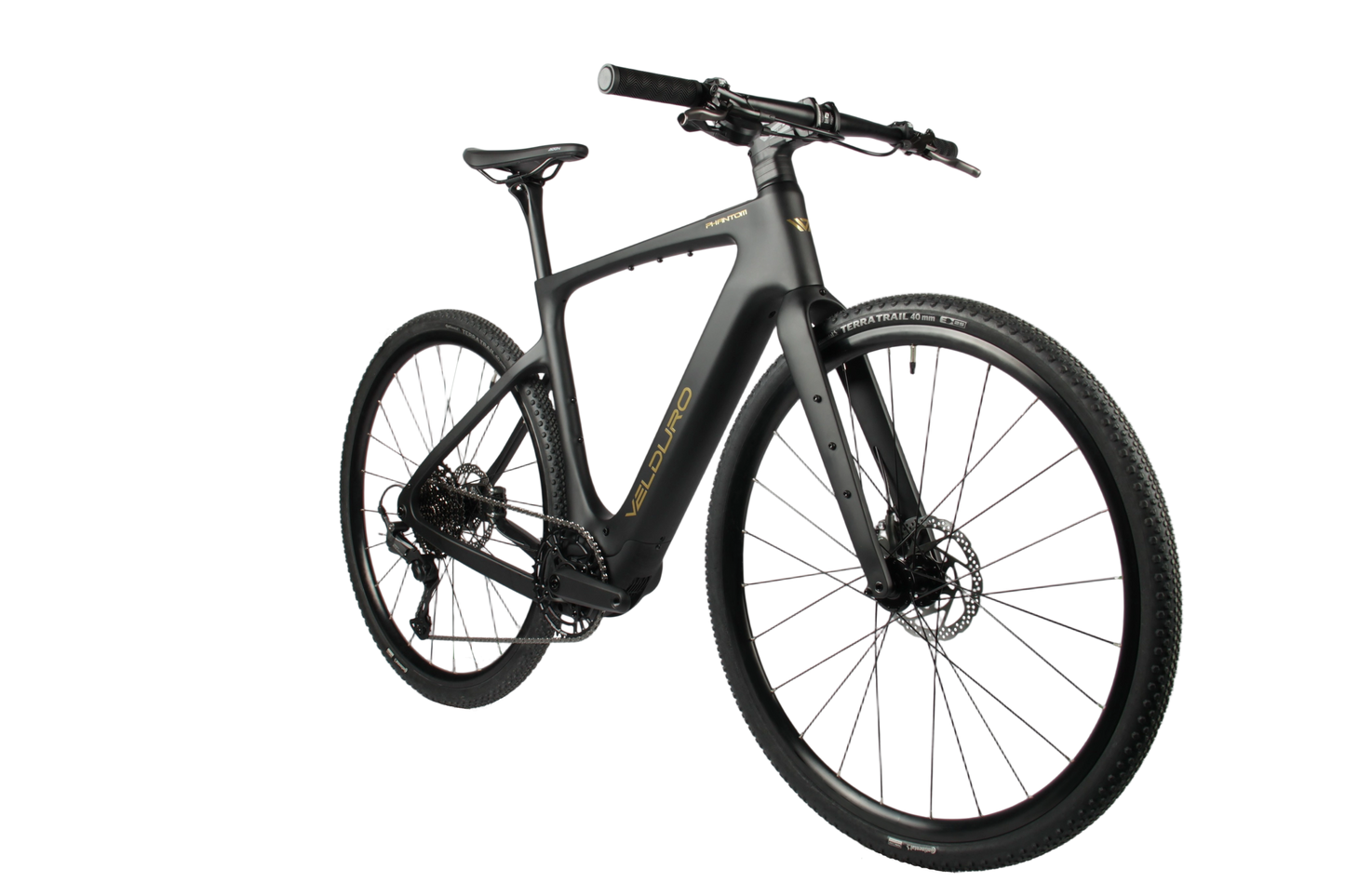

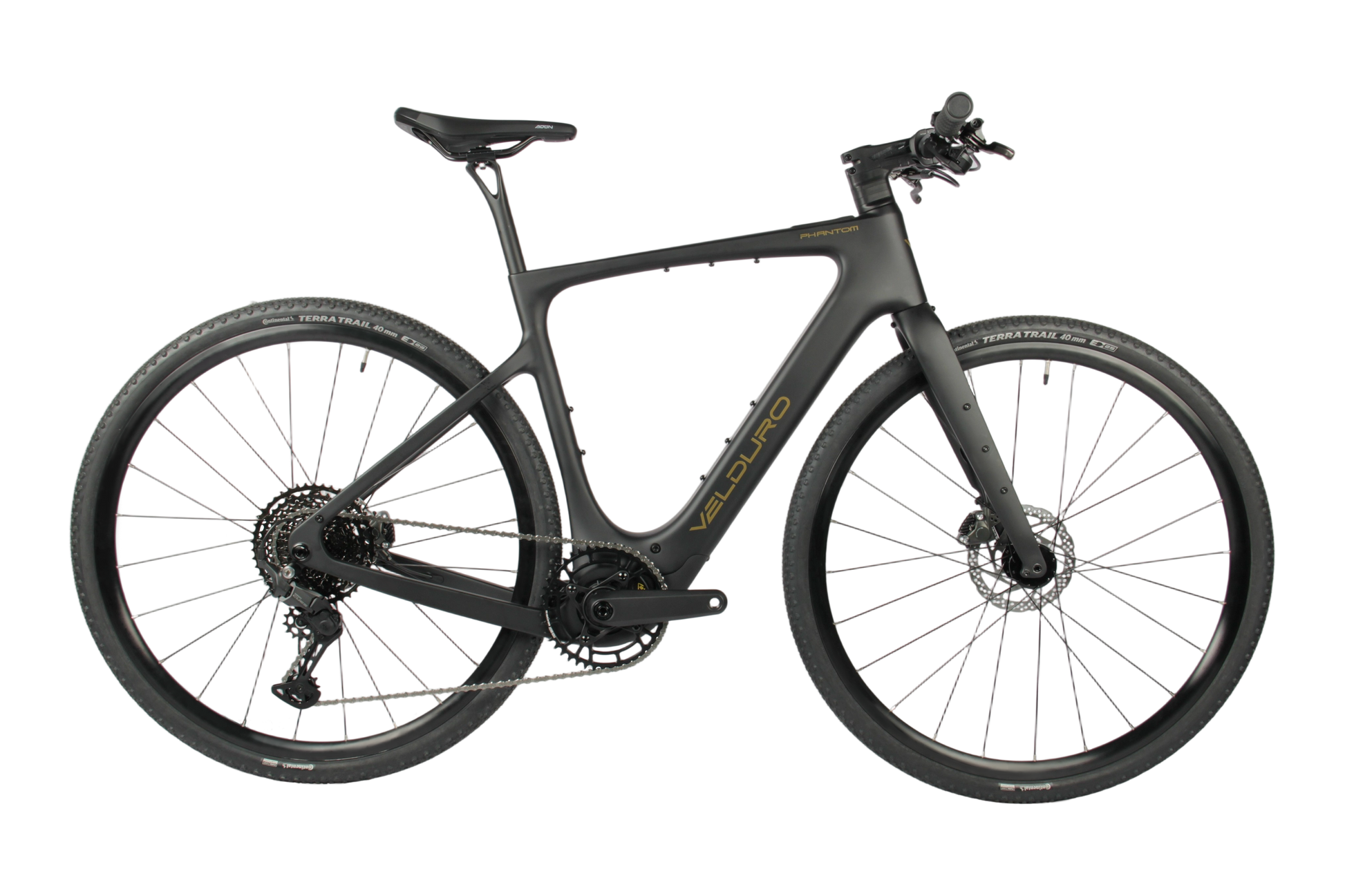

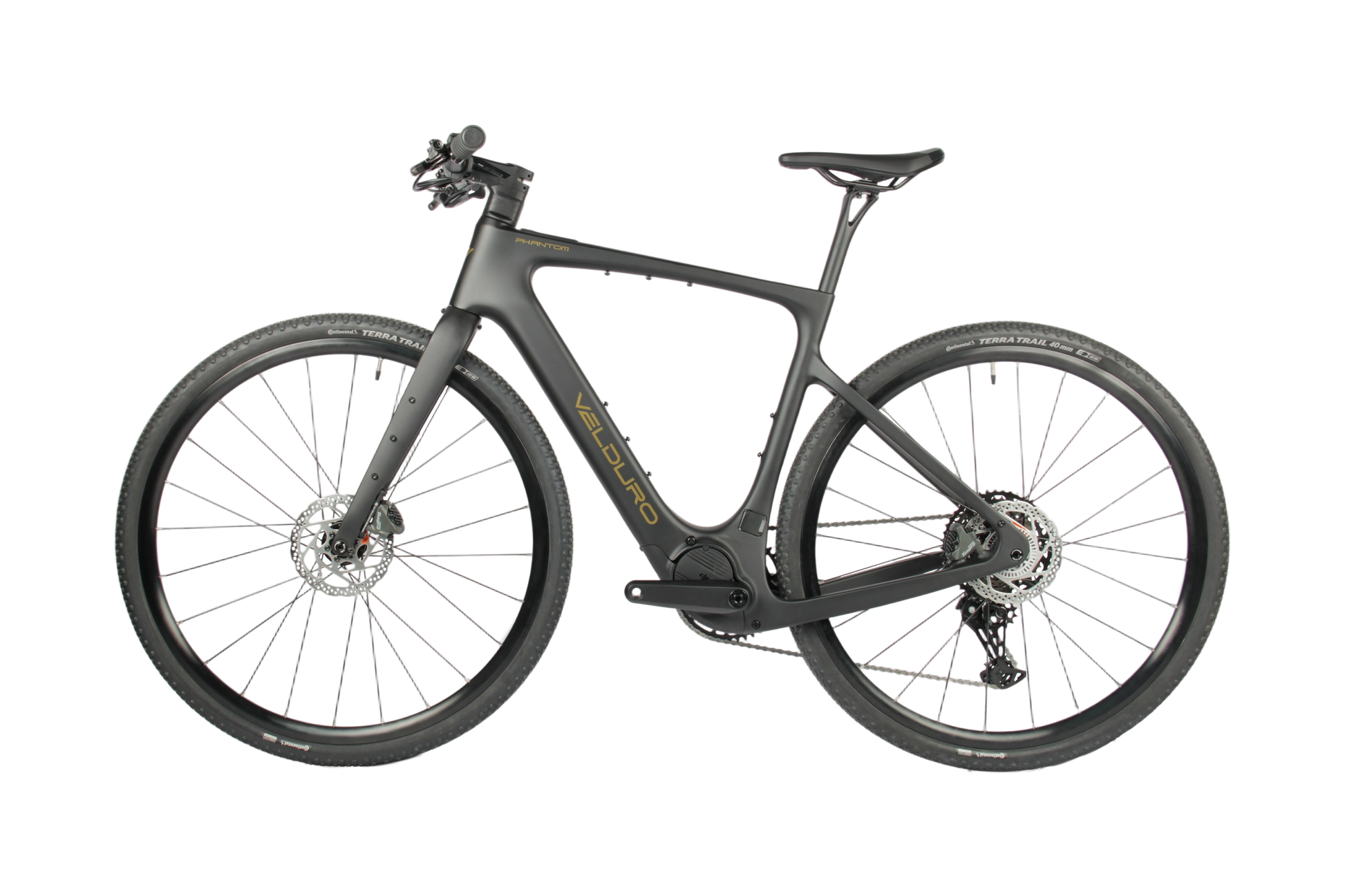

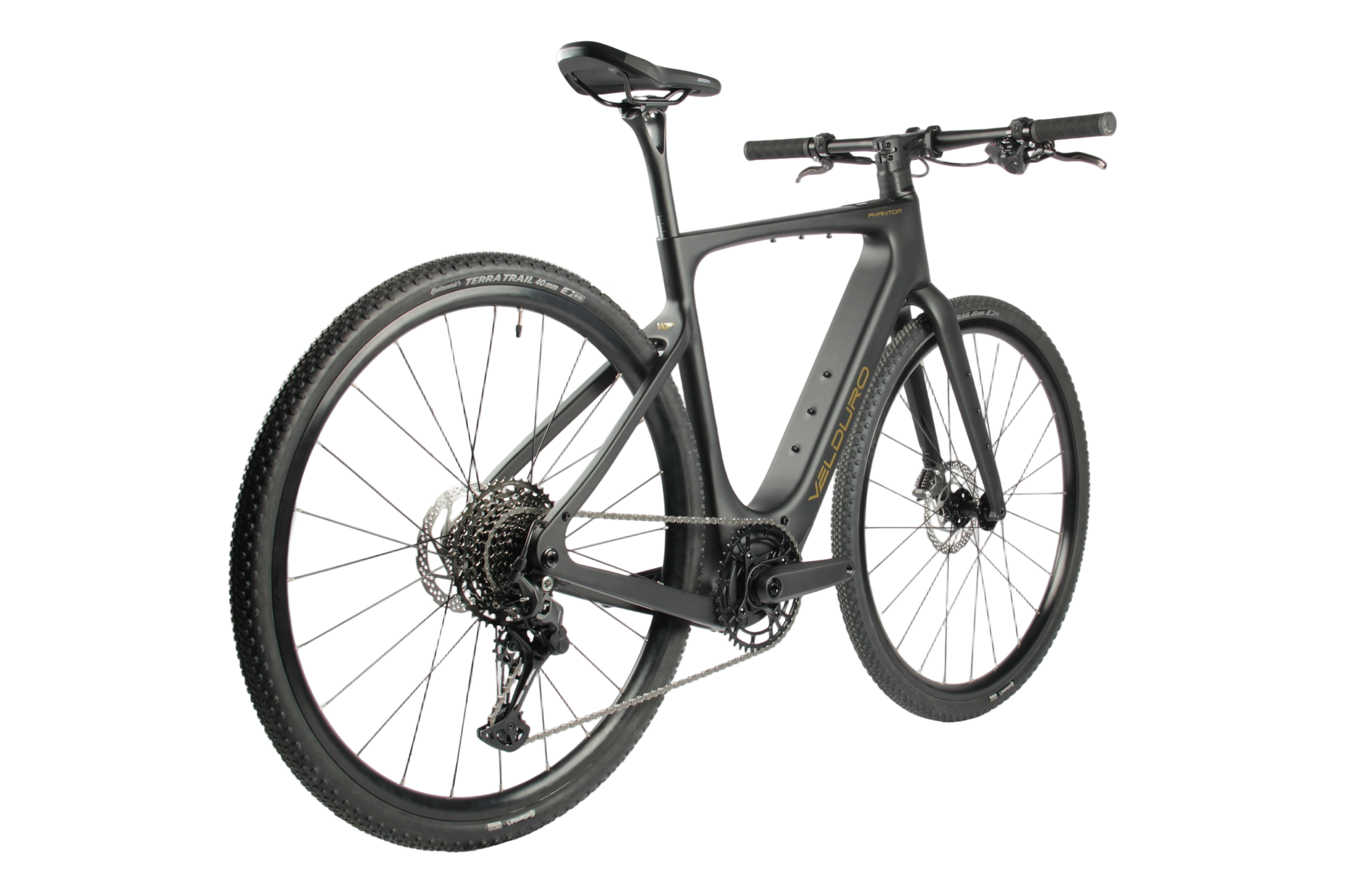

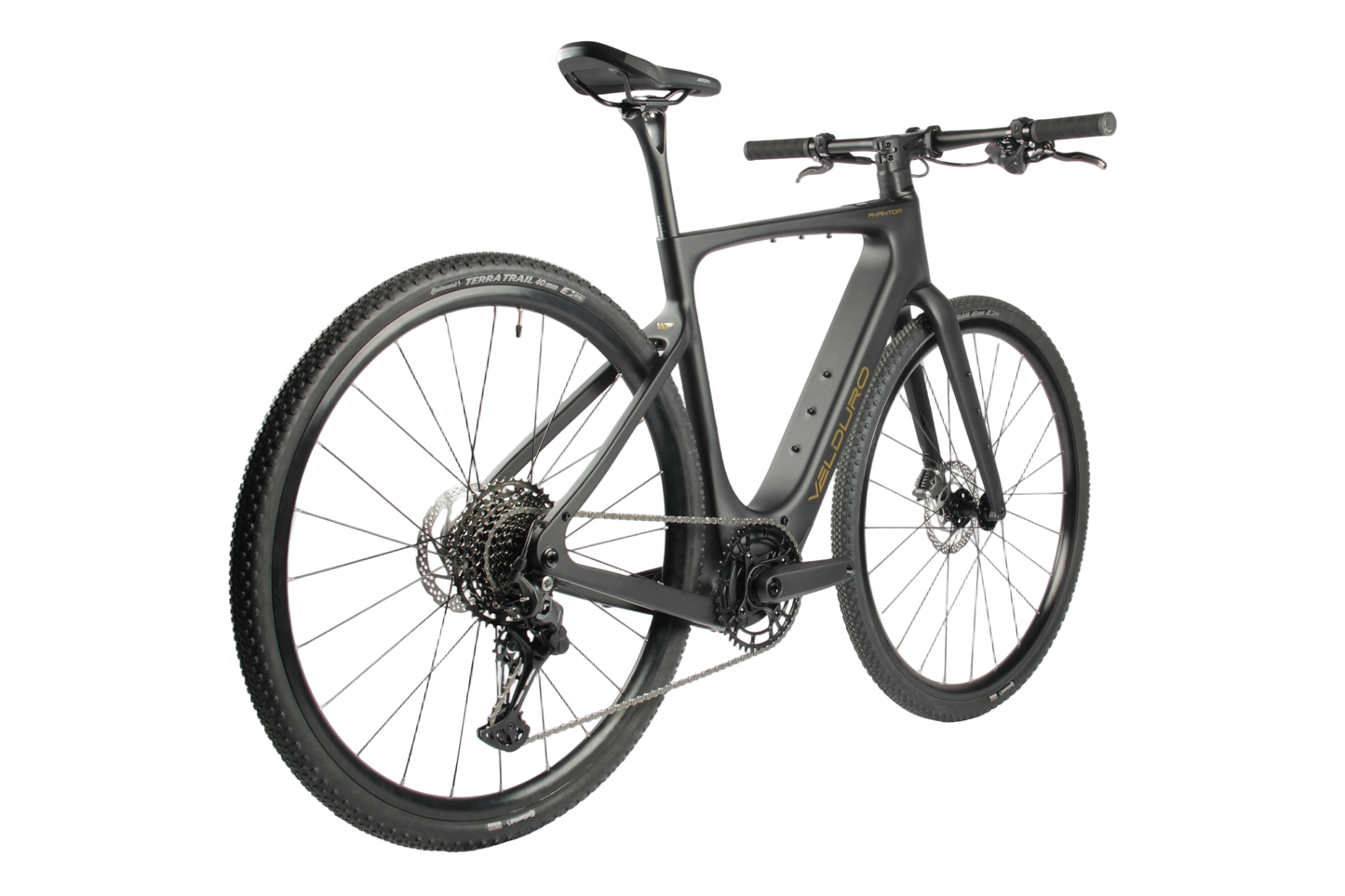

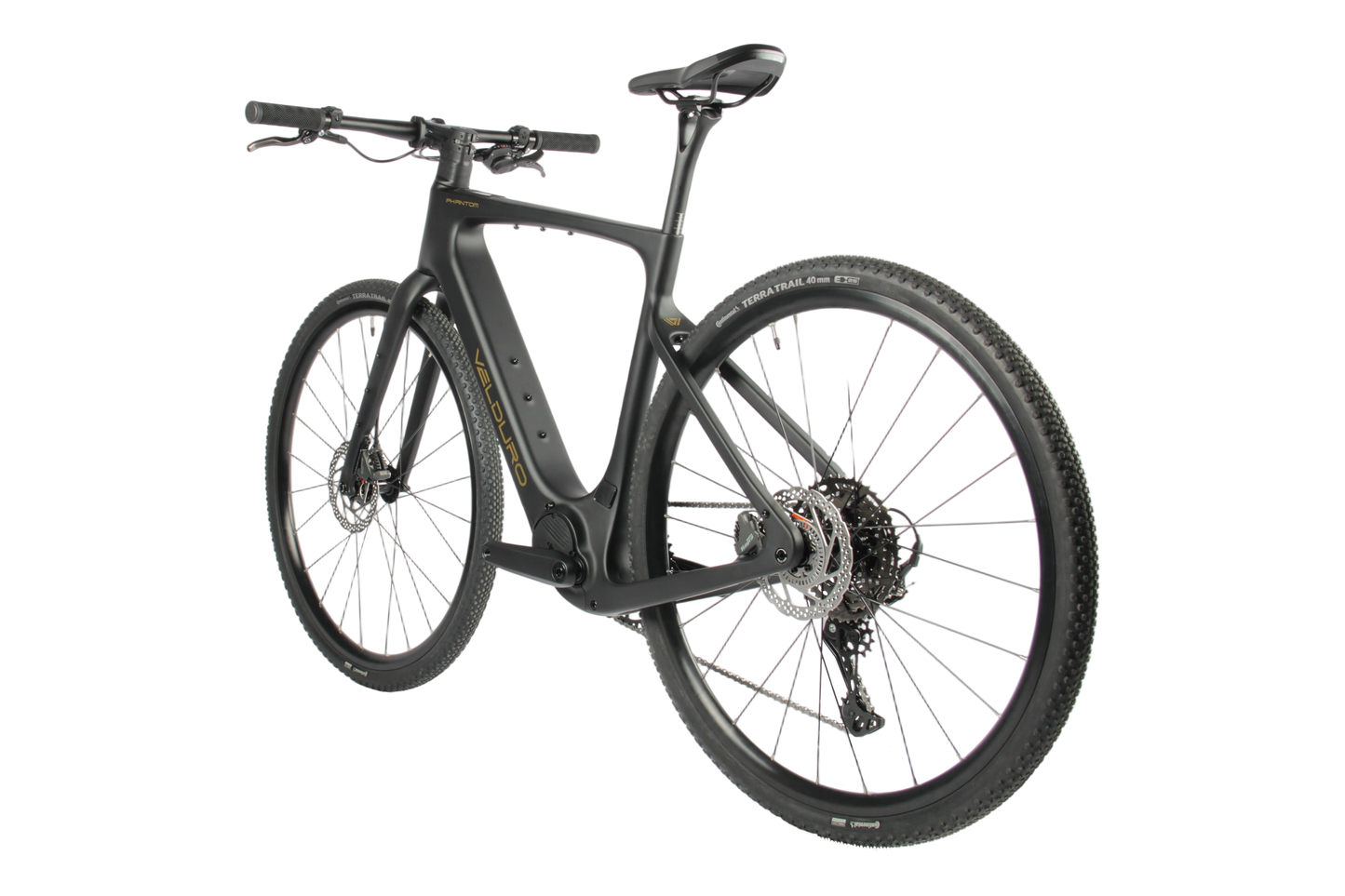

PHANTOM S COMPLETE

PHANTOM S COMPLETE

$7,279.00 AUD
$7,279.00 AUD
Sale Sold out
Taxes included.
Size

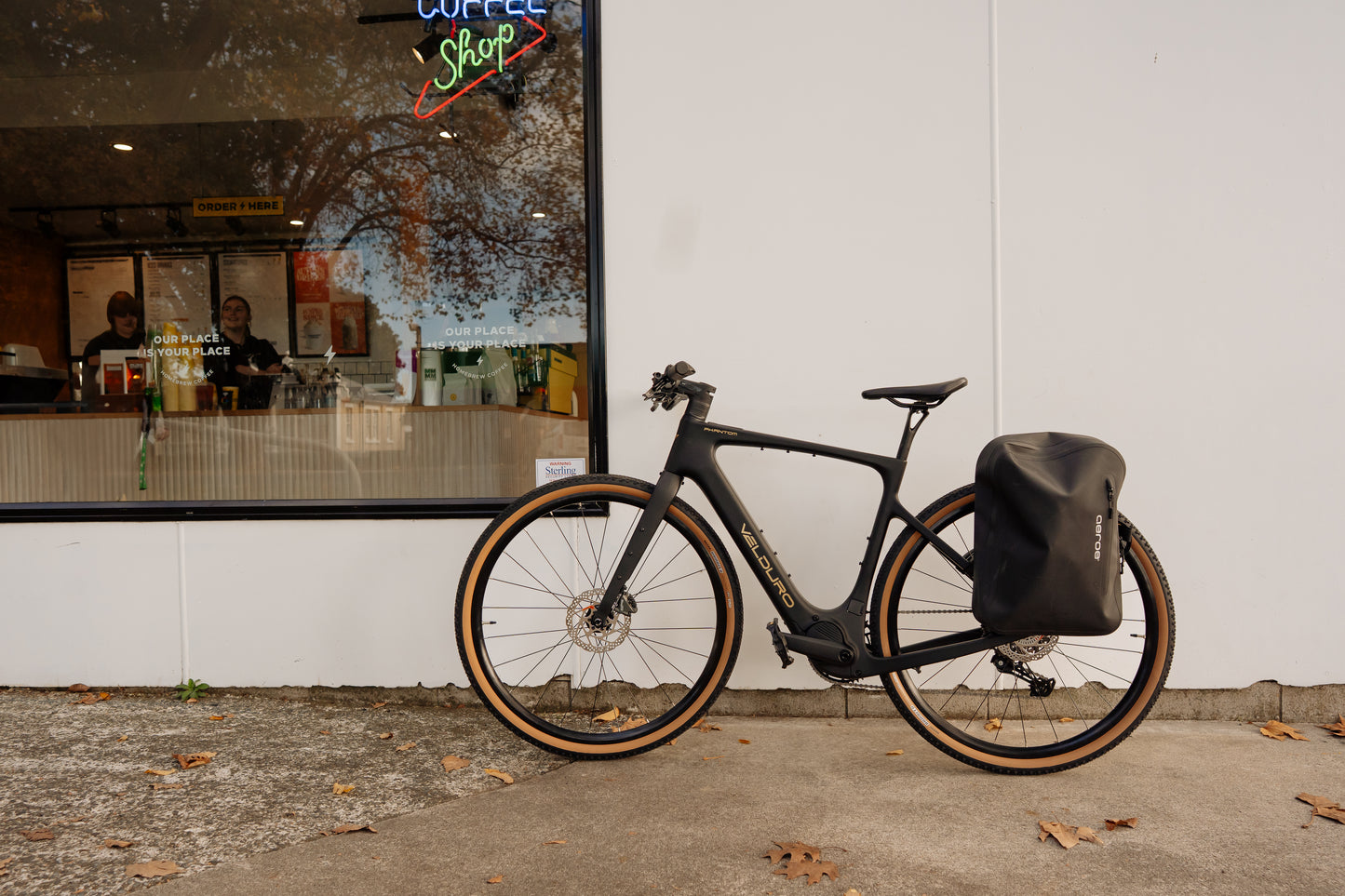

The Phantom S redefines urban adventure.

It's flat-bar design blends Shimano CUES buttery shifts with DJI's torque-sensing pedal assist, making hills feel flat and errands feel exhilarating. The relaxed geometry prioritizes comfort, while hidden cargo mounts let you strap a laptop bag or picnic blanket seamlessly. Puncture-resistant 45c tires ensure stress free miles - whether navigating city chaos or coastal bikeways.

This isn't just a bike, it's a gateway to rediscovering daily joy on two wheels.

Available in size small, medium, large and extra large.

Note: Due to worldwide component availability, specifications may change. All substitutions will be of equal quality and performance.

View full details
Pre-Order Here

SPECIFICATIONS

FRAME AND FORK

Frame: Carbon fibre monocoque e-gravel, 8 mounting points, rack mounts, maximum 50C tyre

Fork: Carbon gravel, 6 mounting points, 12x100, 50mm offset

Headset: Token TK155SP

Rear Axle: 12x142mm alloy, black

DRIVETRAIN

Shifters: Shimano CUES SL-U6000 11 speed

Derailleur: Shimano CUES RD-U6000 11 speed

Cranks: Avinox SL 165mm

Cassette: Shimano CUES LG400 11 speed 11-45T

Chain: Shimano CUES LG500 Linkglide

Chainring: Velduro alloy 44T, 104 BCD, 3mm inward offset

BRAKES

Brakes: Sram S300

Rotors: Sram Centreline 160mm 6 bolt

WHEELS AND TYRES

Rims: Velduro alloy 700C 24H black

Hubs: Velduro, R: 4 bearing HG, F: 2 bearing

Spokes: Velduro black

Tyres: Continental Terra Trail 700x45C

CONTROLS

Stem: Velduro alloy road stem S/M:75mm L/XL:95mm

Handlerbar: Velduro alloy MTB 680mm wide

Grips: Velo MTB comfort

Seatpost: Velduro alloy 27.2, 350mm

Saddle: Velo comfort seat

MOTOR AND BATTERY

Motor: DJI Avinox M1 250W 105Nm, boost to 1000W 120Nm

Battery: DJI Avinox 36V 600Wh

Display: DJI AVinox 2" OLED

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W

GEOMETRY

Section image
S M L XL
A Seat tube length (mm) 466 486 506 526
B Top Tube Horizontal (mm) 520 534 551 565
C Top Tube Actual (mm) 495 515 534 548
D Head Tube Angle 70° 70.5° 71° 71°
E Seat Tube Angle 74.4° 74.1° 73.6° 73.6°
F Standover (mm) 772 785 815 830
G Head Tube Length (mm) 135 147 159 179
H Wheelbase (mm) 1015 1019 1030 1040
I Front Center (mm) 600 605 606 620
J Chain Stay Length (mm) 425 425 430 430
K Bottom Bracket Drop (mm) 72.5 72.5 72.5 72.5
L Bottom Bracket Height (mm) 283 283 283 283
M Fork Rake (mm) 50 50 50 50
N Trail (mm) 64 63 63 63
O Stack (mm) 554 567 581 600
P Reach (mm) 366 372 377 385
Q Axle to Crown (mm) 395 395 395 395
Recommended rider height (cm) 160-170 172-182 180-188 185-195
