PHANTOM X COMPLETE

PHANTOM X COMPLETE

$12,499.00 AUD
$12,499.00 AUD
Taxes included.
Size

Low stock: 1 left

Gold Award Winner

IF YOUR SIZE IS SOLD OUT PRE ORDER WITH ETA HERE

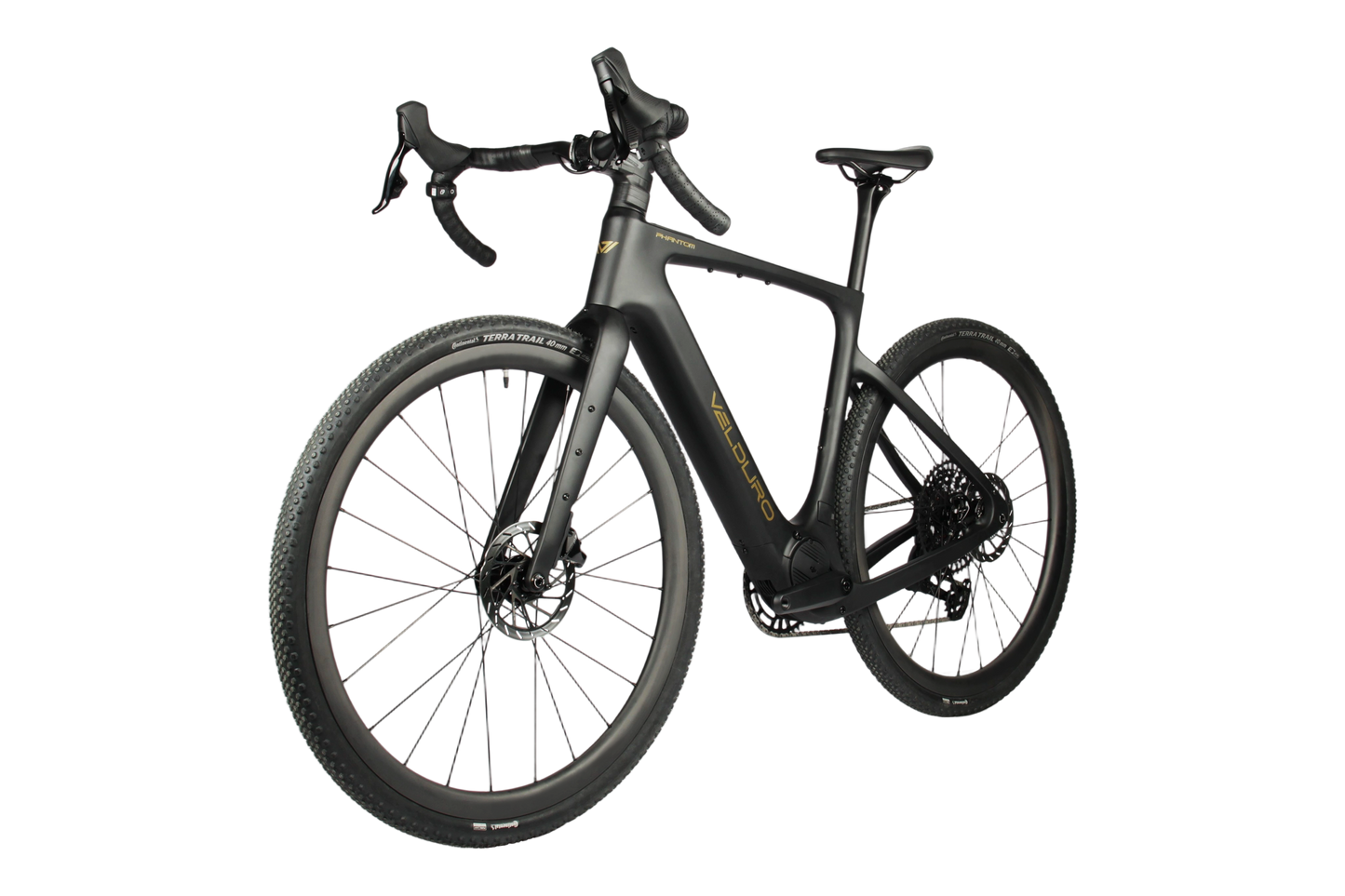

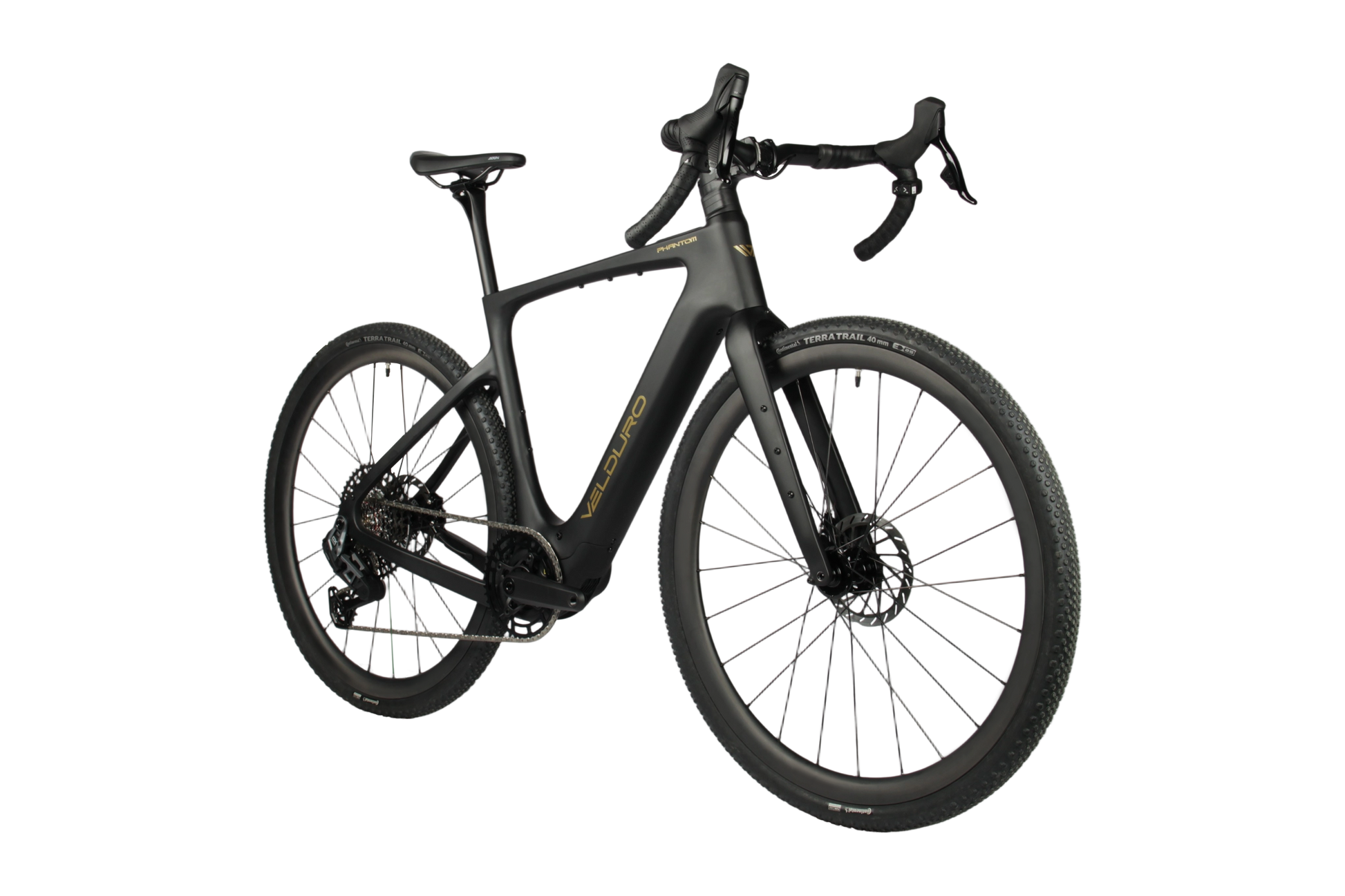

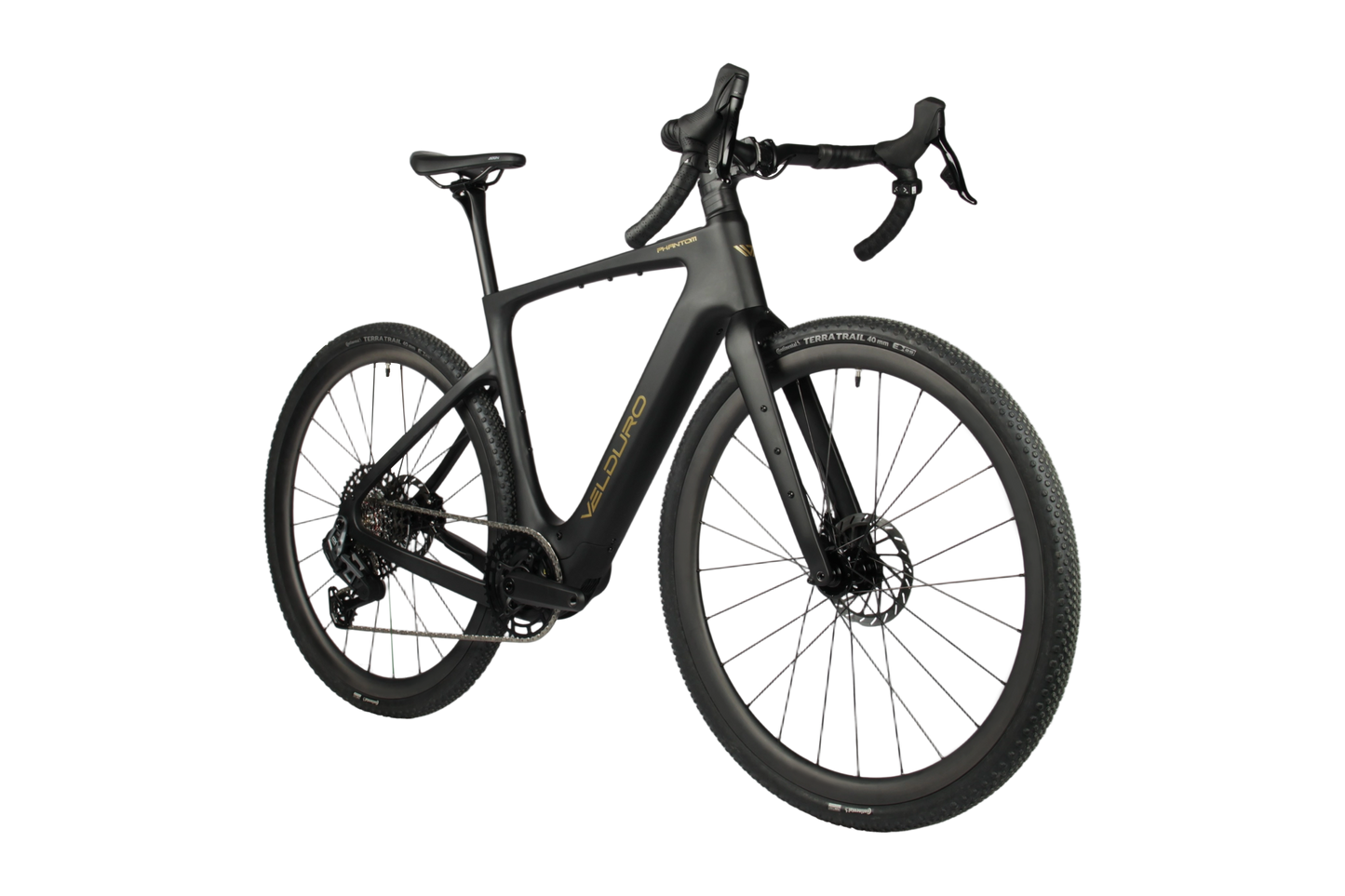

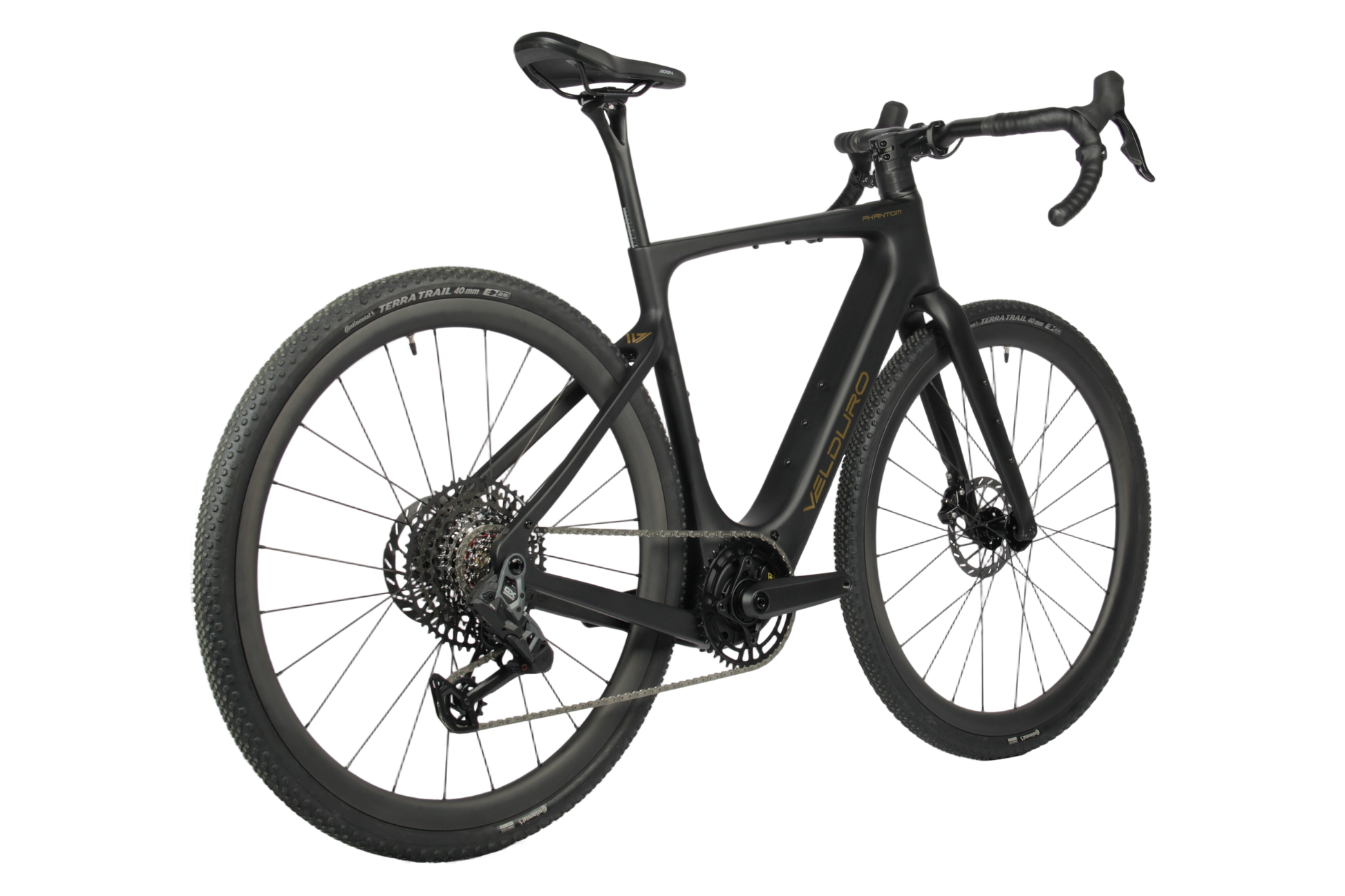

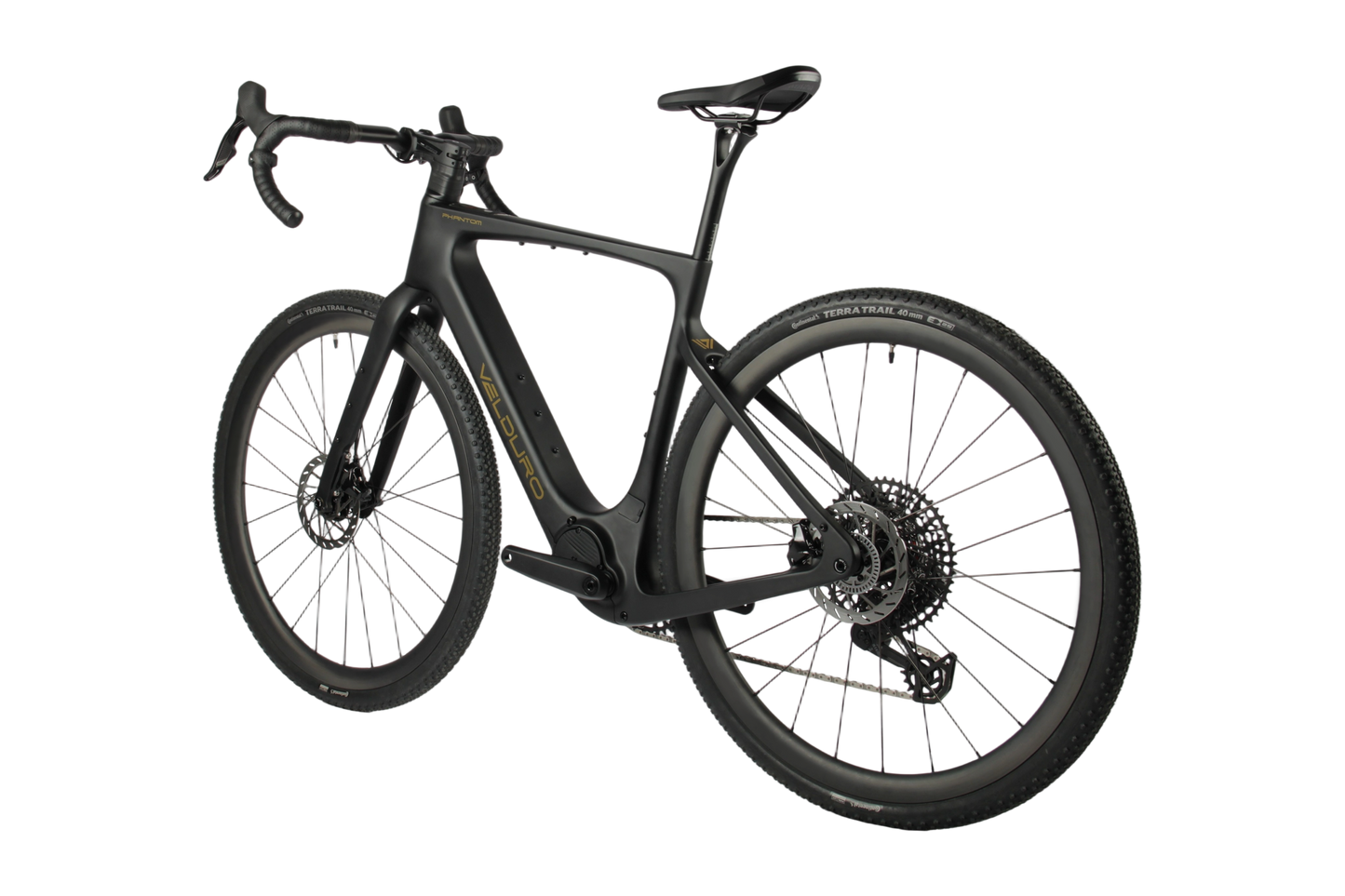

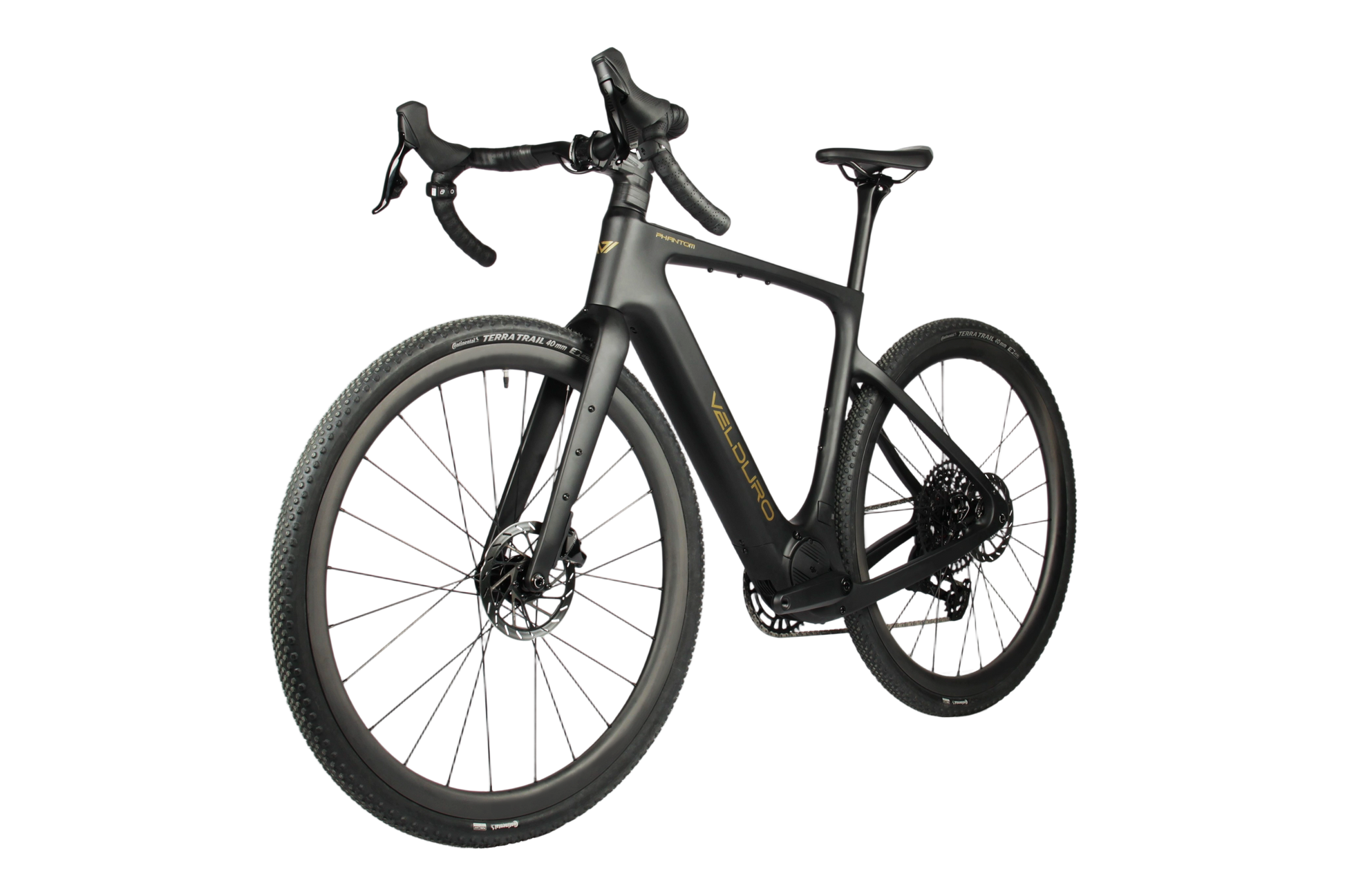

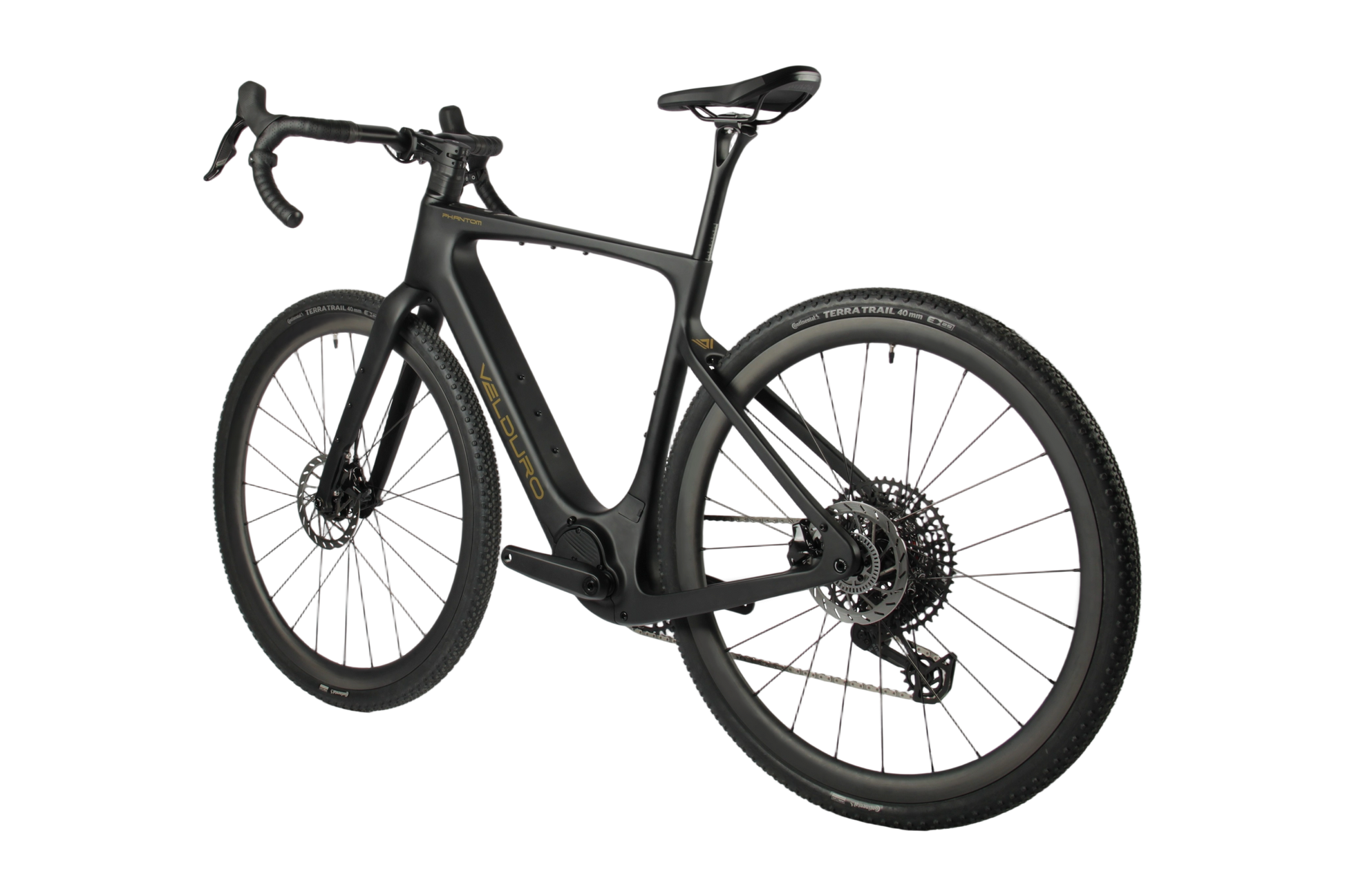

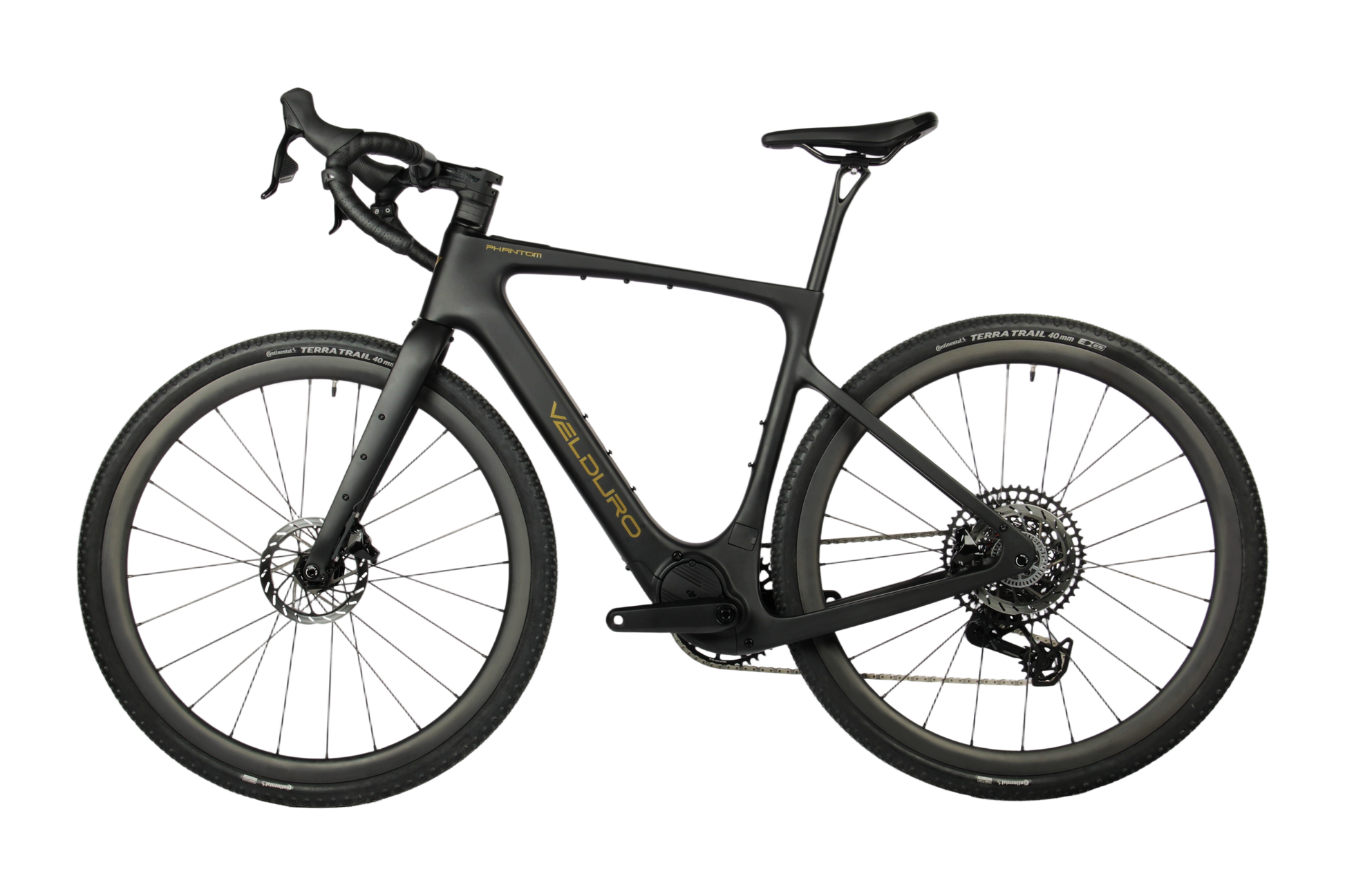

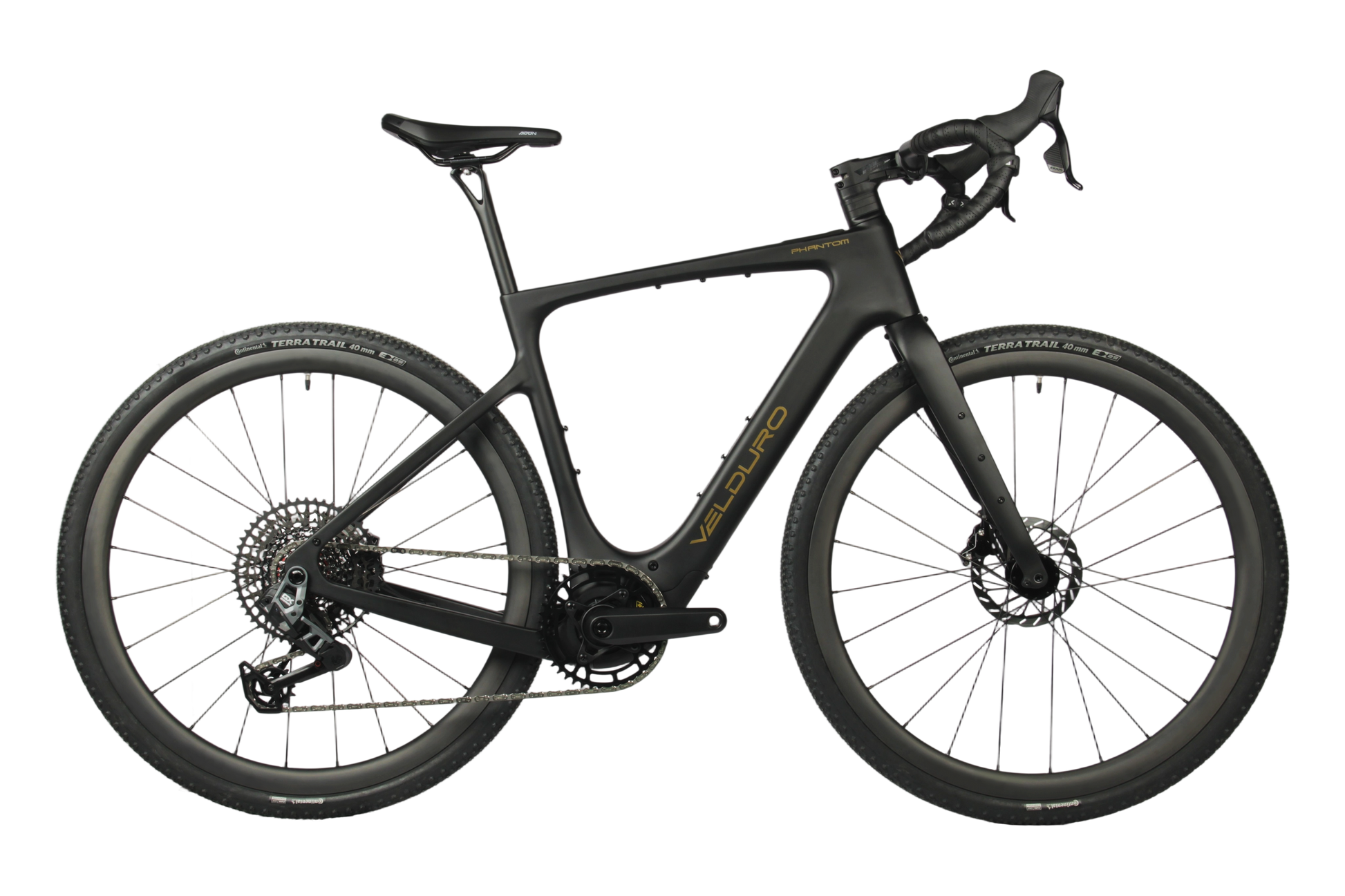

The ultimate e-gravel machine. An ultra-lightweight carbon e-gravel bike powered by DJI Avinox.

Weighing in at 14.9kg, powered by DJI Avinox and 600Wh battery, the Phantom X is the ultimate e-gravel machine.

Available in size small, medium, large and extra large.

Note: Due to worldwide component availability, specifications may change. All substitutions will be of equal quality and performance.

View full details

  • This bike has been approved as a declared article pursuant to Section 16 (1) of the Gas and Electricity (Consumer Safety) Act 2017
    Certificate Number: NSW29843

  • Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas
Pre-order and see next availability here

SPECIFICATIONS

FRAME AND FORK

Frame: Carbon fibre monocoque e-gravel, 8 mounting points, rack mounts, maximum 50C tyre

Fork: Carbon gravel, 6 mounting points, 12x100, 50mm offset

Headset: FSA NO.55R 1.5" / ACE-2 Alloy

Rear Axle: 12x142mm alloy, black

DRIVETRAIN

Shifters: Sram Rival AXS E1

Derailleur: Sram Rival XPLR 13 speed with power cable

Cranks: Avinox SL 165mm

Cassette: Sram XG-1351-E1 10-46T

Chain: Sram Rival E1 Flattop

Chainring: Velduro alloy 44T, 104 BCD, 3mm inward offset

BRAKES

Brakes: Sram Rival

Rotors: Sram HS2 160mm

WHEELS AND TYRES

Rims: Velduro carbon 700C 24H black

Hubs: Velduro, R: 4 bearing XDR, F: 2 bearing

Spokes: Sapim race double butted

Tyres: Maxxis Rambler 700x45C

CONTROLS

Stem: FSA SMR Alloy -6° S:70mm M:80mm L:90mm XL:100mm

Handlerbar: Velduro carbon, 31.8, 15° flare, S/M:420mm L/XL: 440mm

Tape: Velduro black

Seatpost: Velduro carbon 27.2, 380mm

Saddle: Fizik Terra Aidon X5 145mm

MOTOR AND BATTERY

Motor: DJI Avinox M2 1100W 110Nm (125Nm boost)

Battery: DJI Avinox 36V 600Wh

Display: DJI AVinox 2"

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W

GEOMETRY

Section image
S M L XL
A Seat tube length (mm) 466 486 506 526
B Top Tube Horizontal (mm) 520 534 551 565
C Top Tube Actual (mm) 495 515 534 548
D Head Tube Angle 70° 70.5° 71° 71°
E Seat Tube Angle 74.4° 74.1° 73.6° 73.6°
F Standover (mm) 772 785 815 830
G Head Tube Length (mm) 135 147 159 179
H Wheelbase (mm) 1015 1019 1030 1040
I Front Center (mm) 600 605 606 620
J Chain Stay Length (mm) 425 425 430 430
K Bottom Bracket Drop (mm) 72.5 72.5 72.5 72.5
L Bottom Bracket Height (mm) 283 283 283 283
M Fork Rake (mm) 50 50 50 50
N Trail (mm) 64 63 63 63
O Stack (mm) 554 567 581 600
P Reach (mm) 366 372 377 385
Q Axle to Crown (mm) 395 395 395 395
Recommended rider height (cm) 160-170 172-182 180-188 185-195
