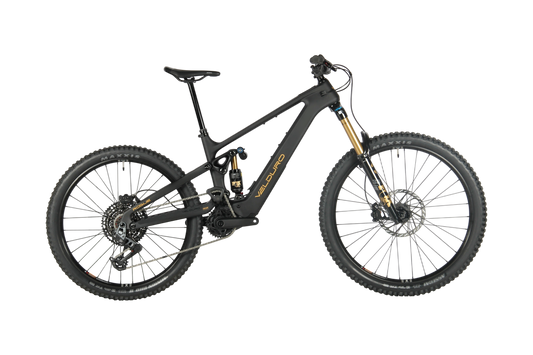

ROGUE

For enduro riders who refuse to choose between climbing efficiency and descending performance, Rogue is the ultimate ride.

The Rogue isn't confined to a single identity. In Standard Mode (170mm fork/165mm rear), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear) for flowy precision, or unleash Enduro Mode (180mm front/170mm rear) to dominate brake-burning descents. DJI's 120 Nm Avinox drive binds these personas into one unstoppable force. Its torque isn't just raw power - it's intelligent aggression, syncing with suspension kinematics to float over roots or claw up 40% grades. No more "uphill vs. downhill" dilemmas. The Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customize your ride to create your Dream Machine.

i-track suspension

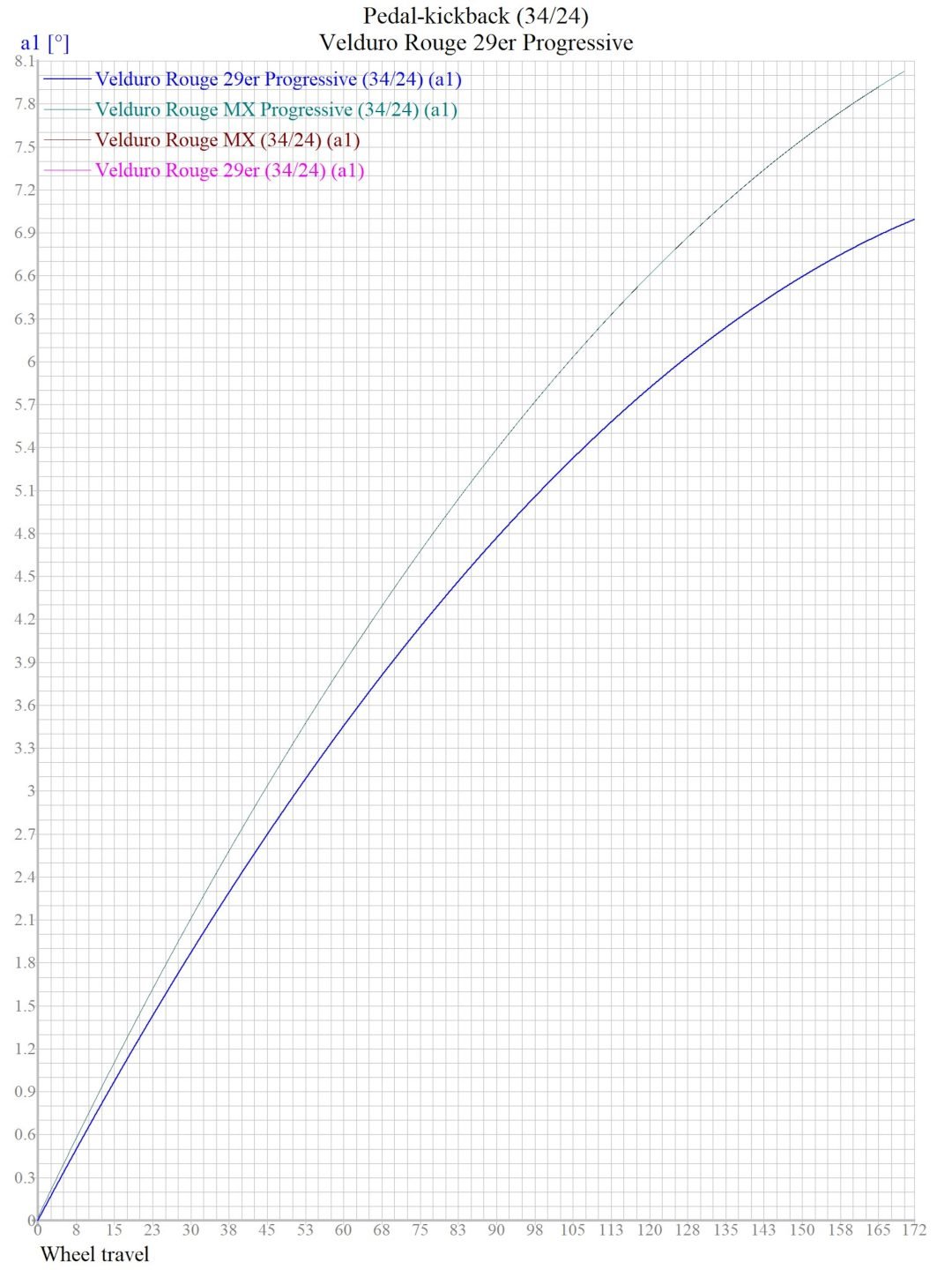

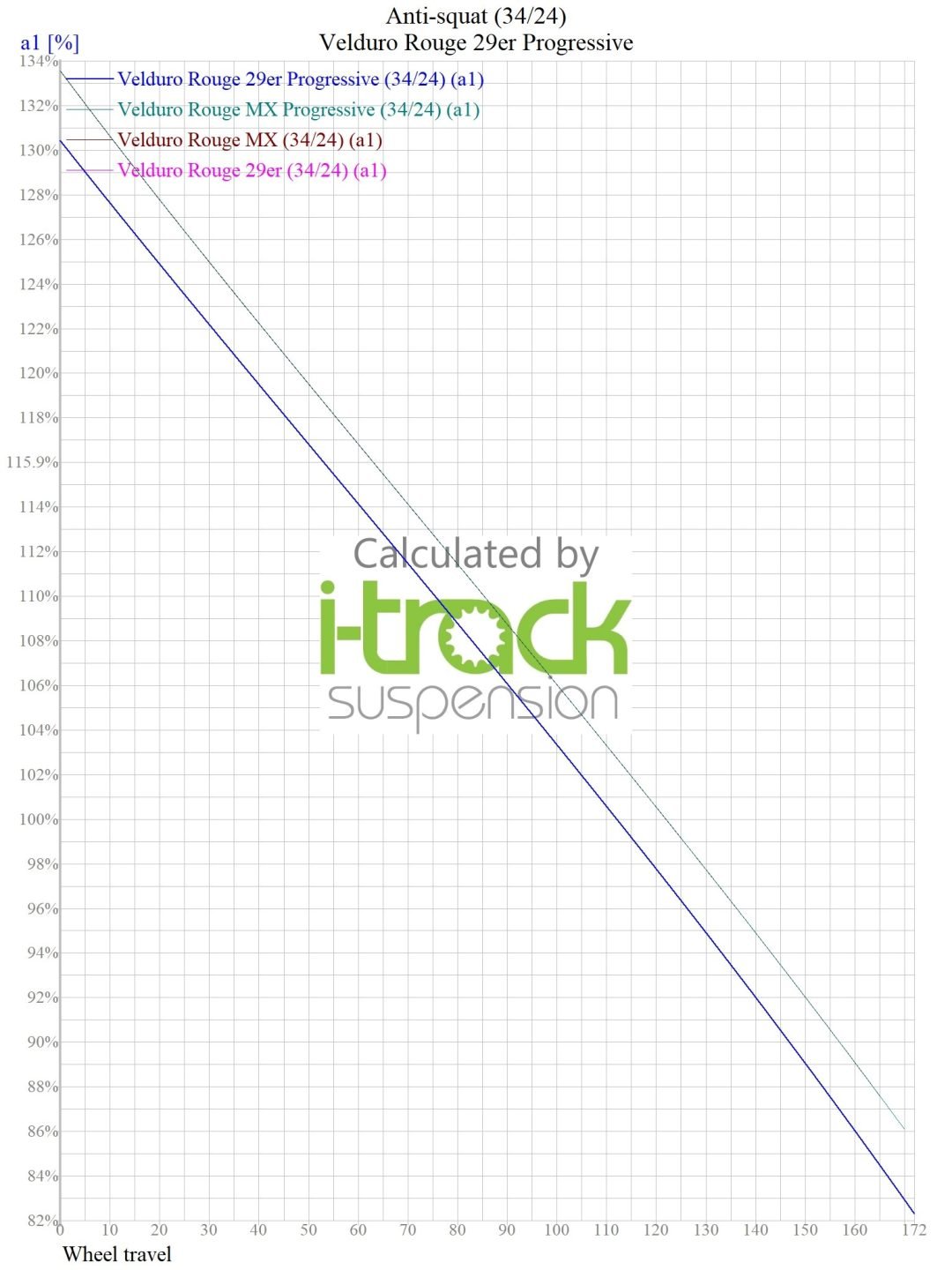

Lower kick back + optimised anti-squat

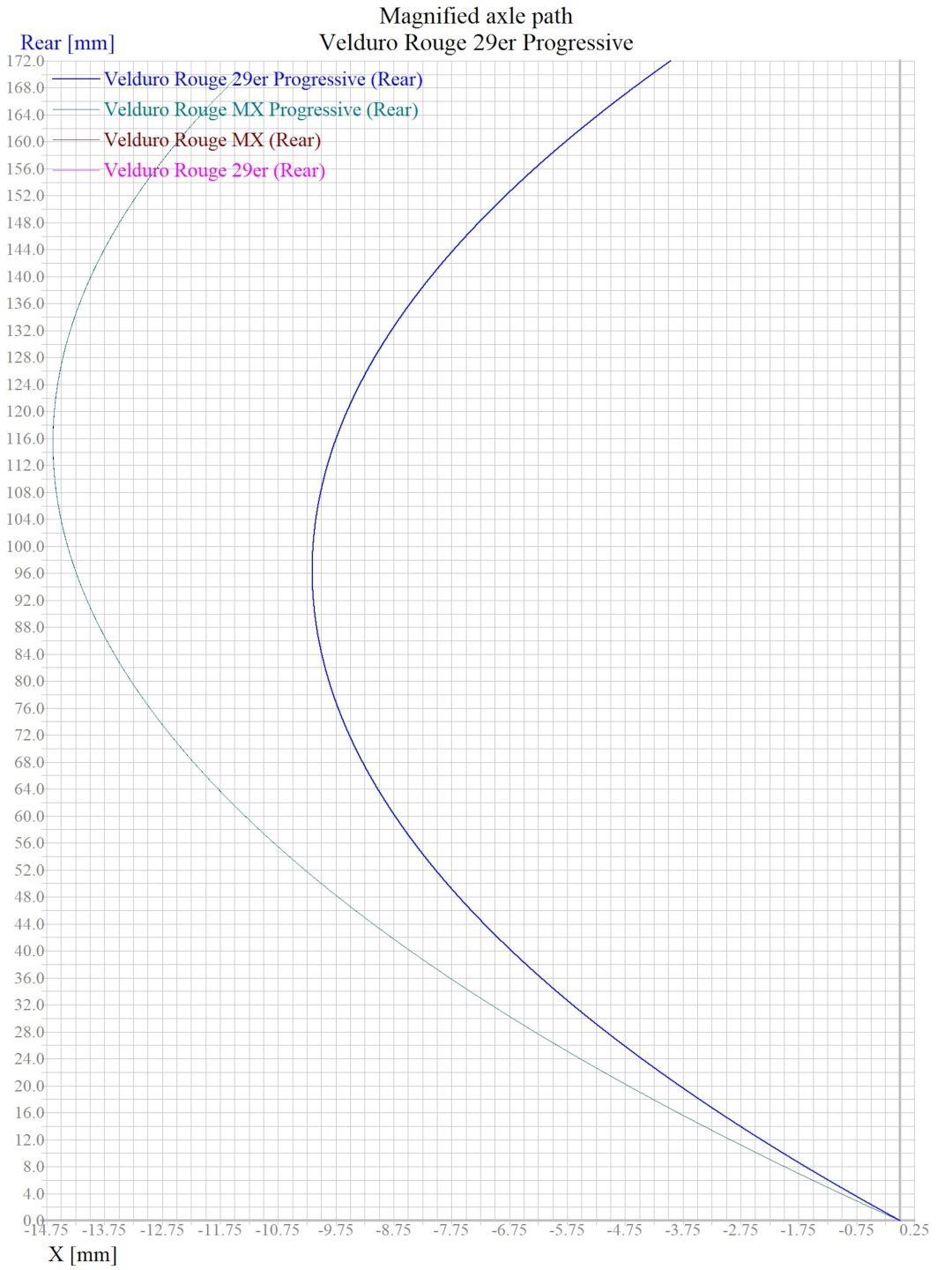

The i-track suspension has multiple benefits. By repositioning the rear axle path, Rogue's rear wheel tracks terrain, creating stability on chaotic descents. The idler pulley silences chain slap, eliminates pedal kickback and it's ingenious patented chainstay position enables precision optimisation of antisquat kinematics.

Learn more about i-track

Shock Flip Chip

Flick the AM/Enduro chip at the shock mount, and Rogue morphs. STD mode prioritizes pedaling efficiency; flip to PRO to unlock 5mm extra travel (up to 170mm with 27.5" and 172mm with 29" wheel).

Mullet or 29er

Switch between 27.5" agility and 29" roll-over dominance in minutes. Our GeoLock module keeps head tube angle, chainstay length and BB height identical across wheel sizes with no compromises. Tested in Rotorua and Queenstown, New Zealand, the Rogue was built to conquer anything in its path.

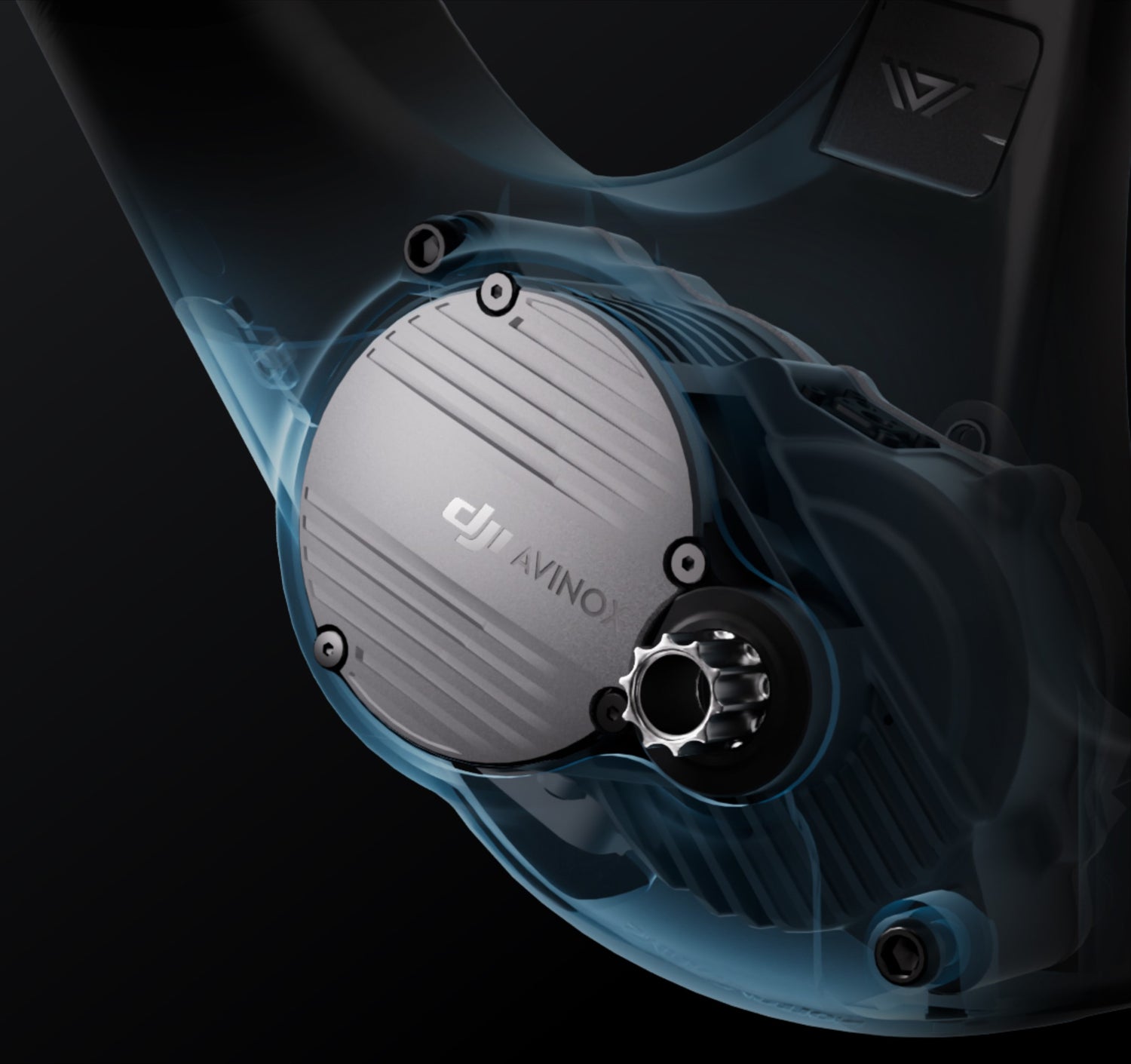

Powered by AVINOX

Velduro is powered by the DJI Avinox lightweight mid-drive system with up to 1000 Watts of power and 105nm of continuous torque (120nm in boost mode). The DJI Avinox system provides an unrivalled combination of power, range and intelligent control, all in an ultra-light motor system. With GaN fast charging taking the battery from 0% to 75% in approximately 1.5 hours

LEARN MORE ABOUT AVINOX TECHNOLOGY

ROGUE Features

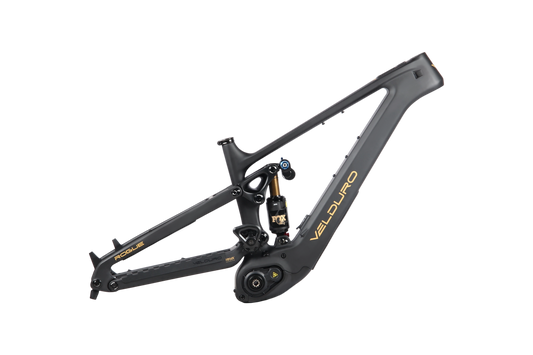

FRAME

Carbon fibre, weight 3.5kg

Oversize bearings - greater durability

Straight seat tube allows longer droppers

16T idler

SUSPENSION

Mid pivot - rearward axle path

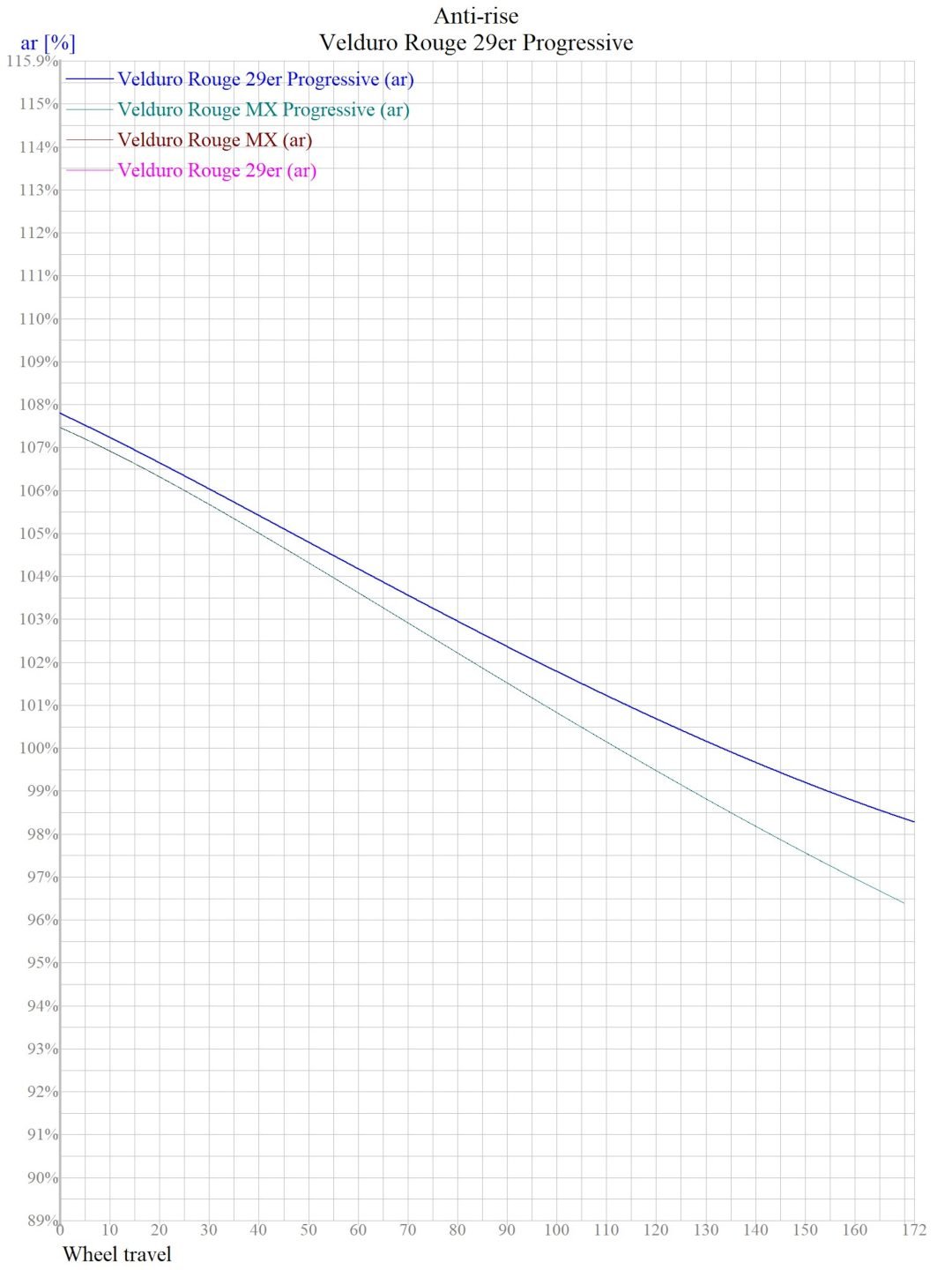

Anti-rise 90-110%

POWER

DJI Avinox drive unit

weight 2.52kg

250W, 105Nm, 1000W peak power, 120NM in boost mode

RANGE

Light weight high capacity battery

600Wh/800Wh battery compatible

GaN fast charging - from 0% to 75% in approximately 1.5 hours

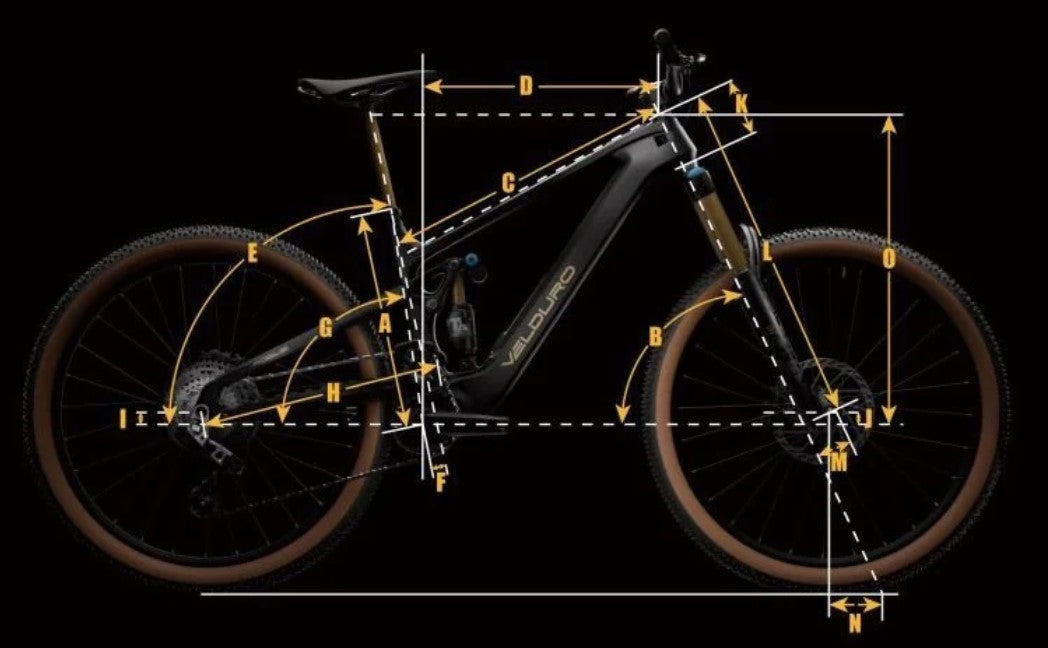

Geometry

Section image
29" or MX wheels, standard shock position S M L XL
A Seat tube length (mm) 390 410 430 465
B Head tube angle 63.5° 63.5° 63.5° 63.5°
C Top tube length (mm) 573.5 599.5 624 652
D Reach (mm) 440 466 485 515
E Actual seat tube angle 75.5° 75.5° 75.5° 75.5°
F Seat tube offset (mm) 30 30 30 30
G Effective seat tube angle 78° 78° 78° 78°
H Chainstay length unsagged (mm) 440 440 440 440
H Chainstay length MX at 30% sag (mm) 450 450 450 450
H Chainstay length 29" at 30% sag (mm) 448 448 448 448
I BB drop from MX rear wheel (mm) 12 12 12 12
J BB drop from front wheel (mm) 31 31 31 31
K Head tube length (mm) 110 110 120 125
L Axle to crown (mm) 584 584 584 584
M Fork offset (mm) 44 44 44 44
N Trail (mm) 140.1 140.1 140.1 140.1
O Stack (mm) 632.5 632.5 641.4 645.9
P Wheelbase (mm) 1230 1265 1300 1335
Recommended rider height (cm) 160-172 172-182 180-188 185-195

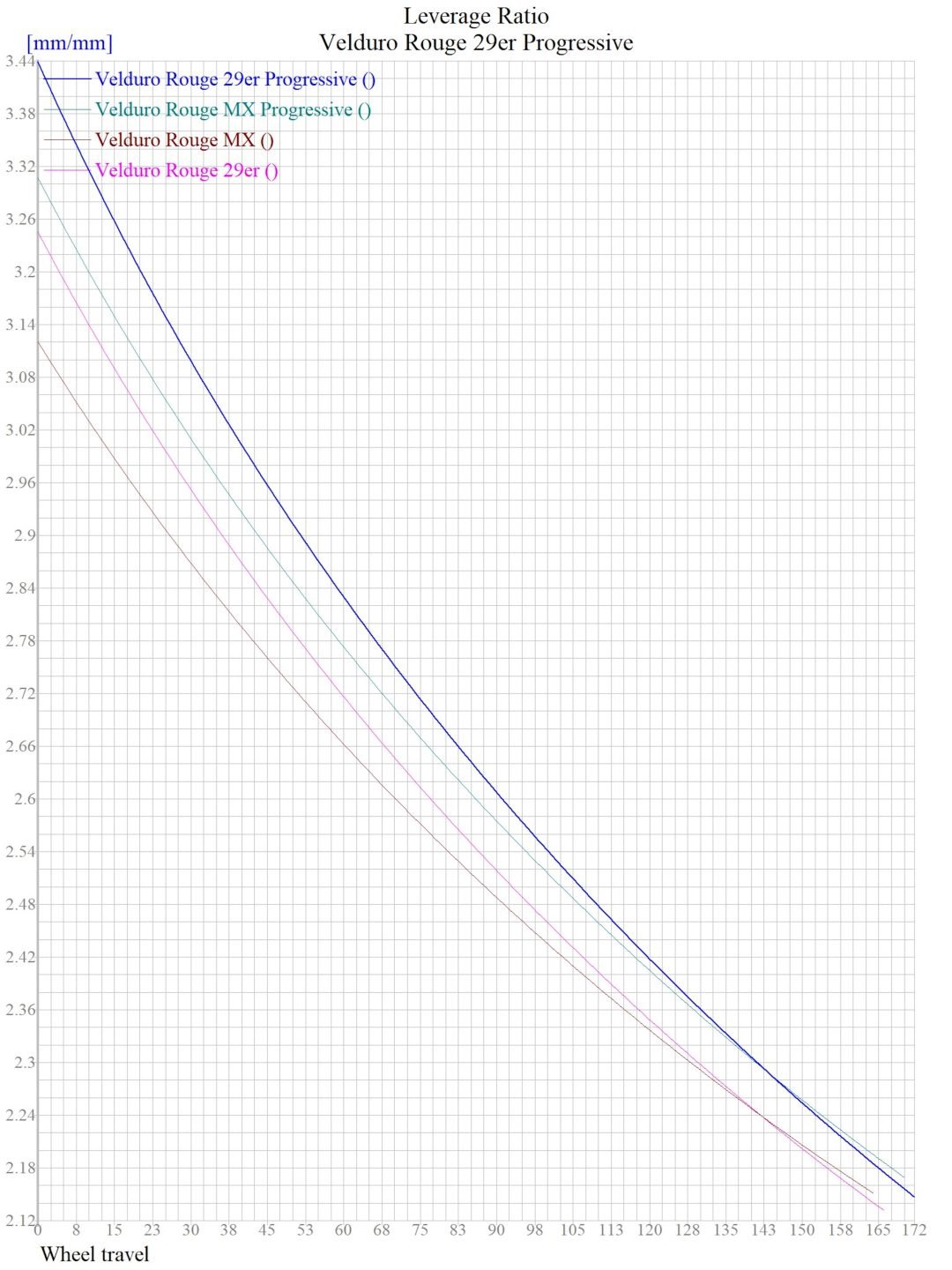

Kinematics and Travel Options

  • Shock Stroke and Flip Chip Options

    29" Rear Wheel

    • 65mm stroke shock + STD flip chip = 167mm travel
    • 65mm stroke shock + PRO flip chip = 172mm travel
    • 60mm stroke shock + STD flip chip = 162mm travel
    • 60mm stroke shock + PRO flip chip = 167mm travel

    27.5" Rear Wheel

    • 65mm stroke shock + STD flip chip = 165mm travel
    • 65mm stroke shock + PRO flip chip = 170mm travel
    • 60mm stroke shock + STD flip chip = 160mm travel
    • 60mm stroke shock + PRO flip chip = 165mm travel
    Geolock module set to 27.5 for 27.5" wheel, 29 for 29" wheel.
    Bottom bracket height and head angle do not change with shock stroke or flip chip orientation.

Frame Specifications

Headset: ZS44/ZS56

Fork: 1.5 taper, 160-180mm travel

Shock: Trunnion, M8x30mm, 205x65mm max travel 172mm, 205x62.5 max travel 160mm

Seatpost: 31.6mm diameter, suggested travel S:180mm, M/L:210mm, XL:240mm; max insertion depth S: 260mm, M: 280mm, L: 300mm, XL: 325mm

Dropper cable length: approx. 1200mm

Frame brake mount: 200mm direct mount

Front brake hose length: approx. 950mm

Rear brake hose length: approx. 1700mm

Max chainring size: 34T

Cranks: recommended max length 165mm, minimum offset 25mm

Shifting: electronic or mechanical compatible, Sram or Shimano compatible

Mechanical shift cable length: approx. 2000mm

Derailleur hanger: UDH

Rear axle spacing: 12x148mm

Rear tyre clearance: 29x2.4, 27.5x2.4
