PHANTOM FRAME

PHANTOM FRAME

$6,369.00 AUD
$6,369.00 AUD
Taxes included.
Size

Low stock: 1 left

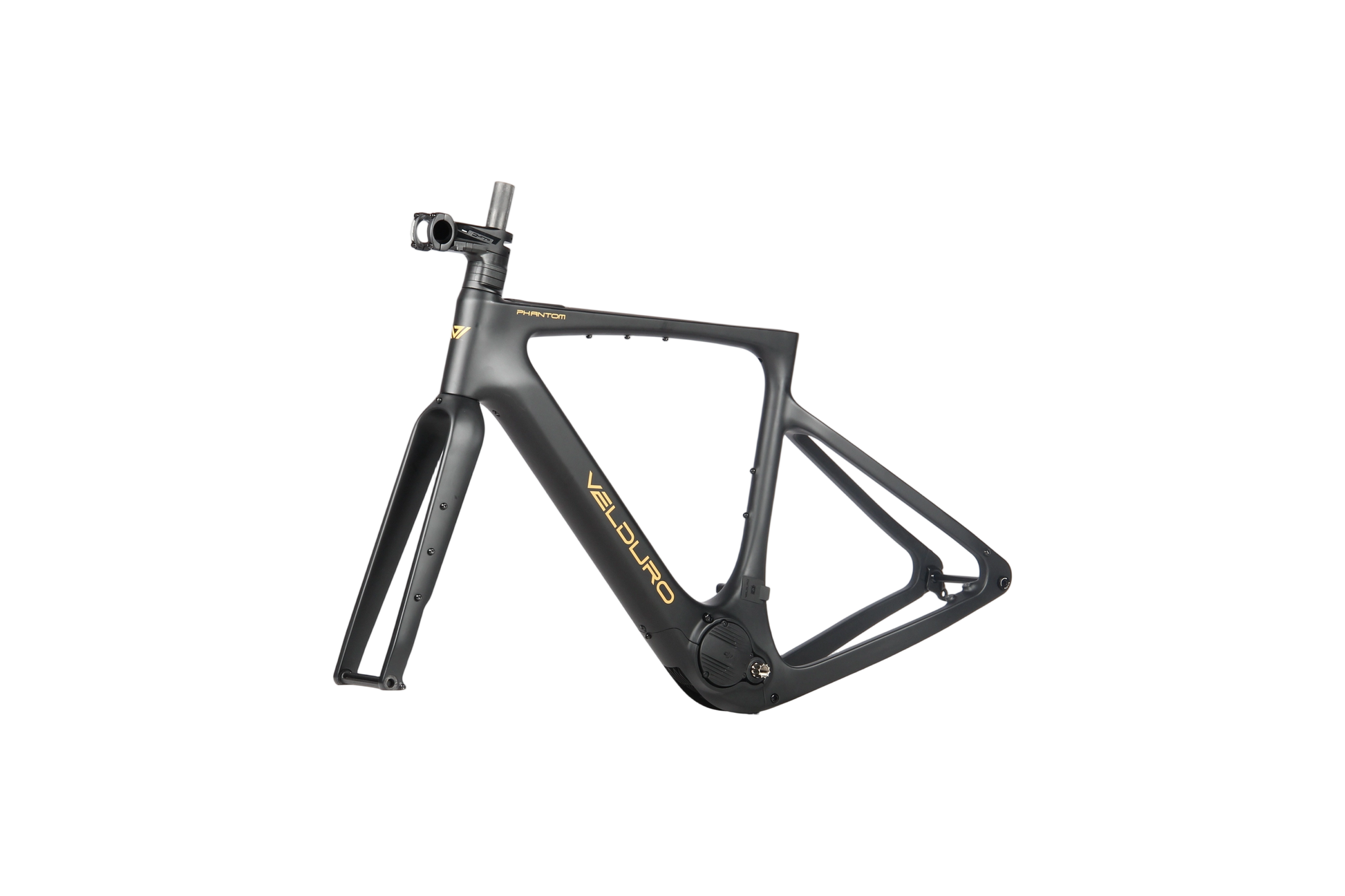

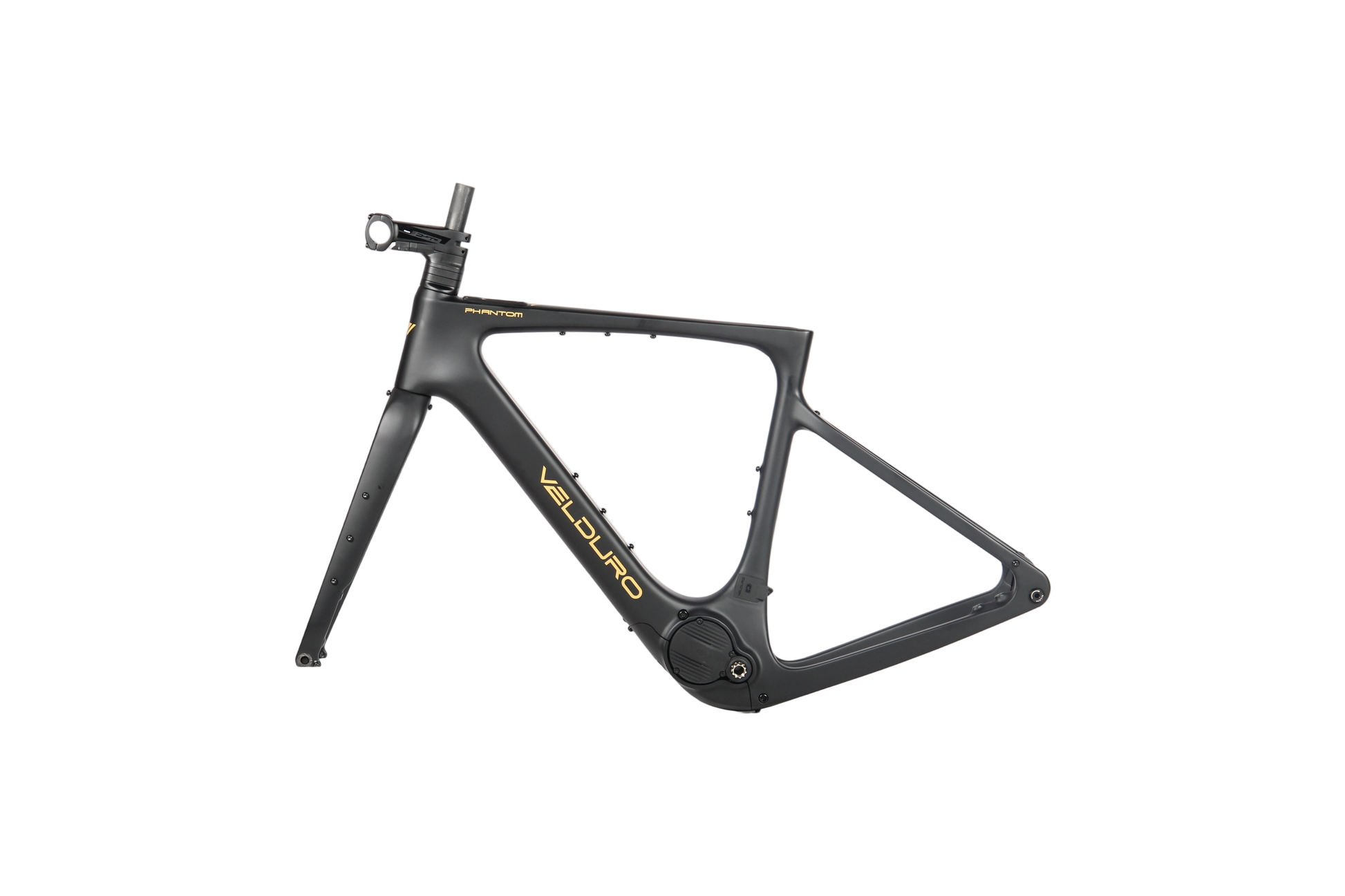

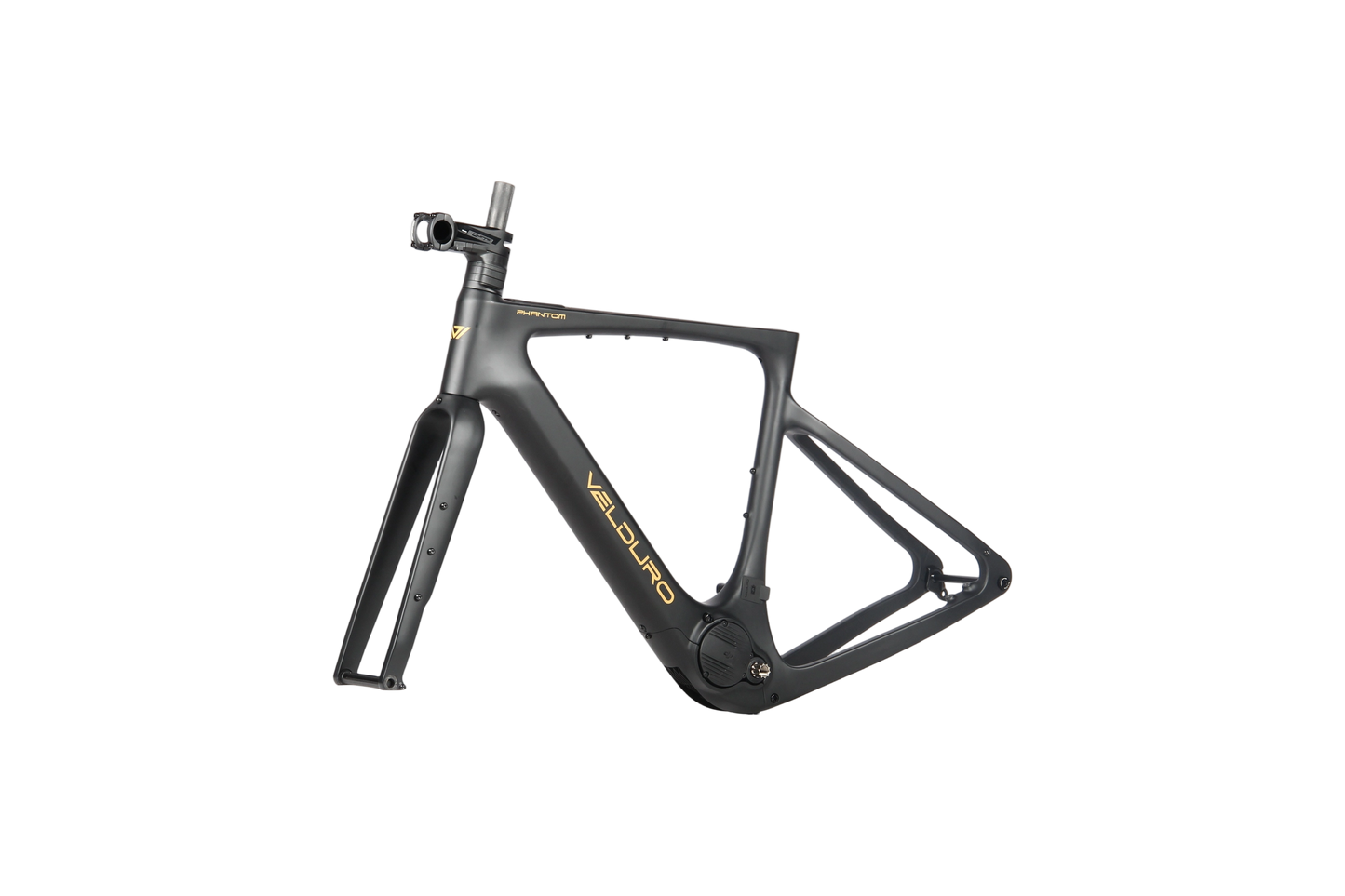

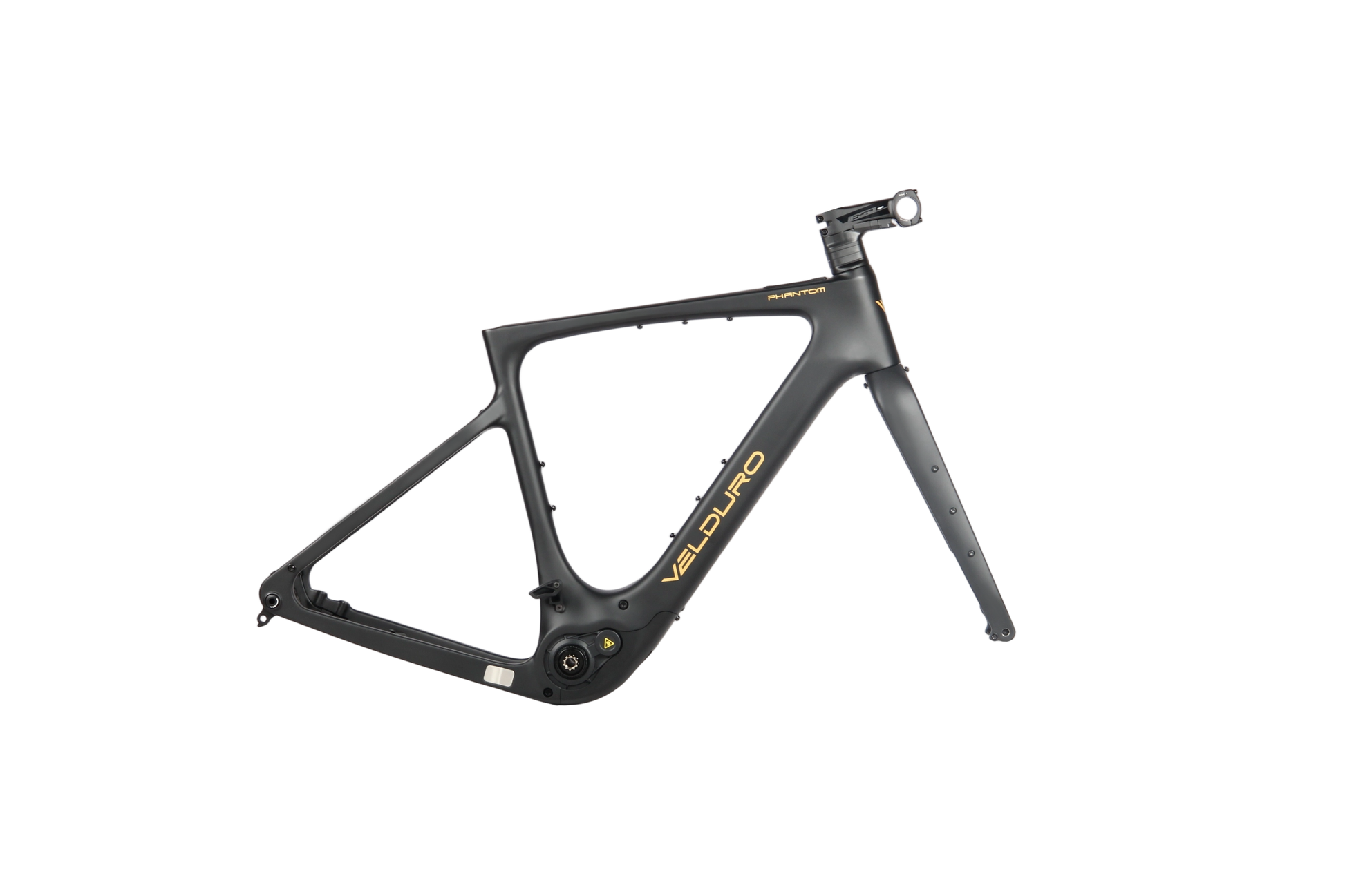

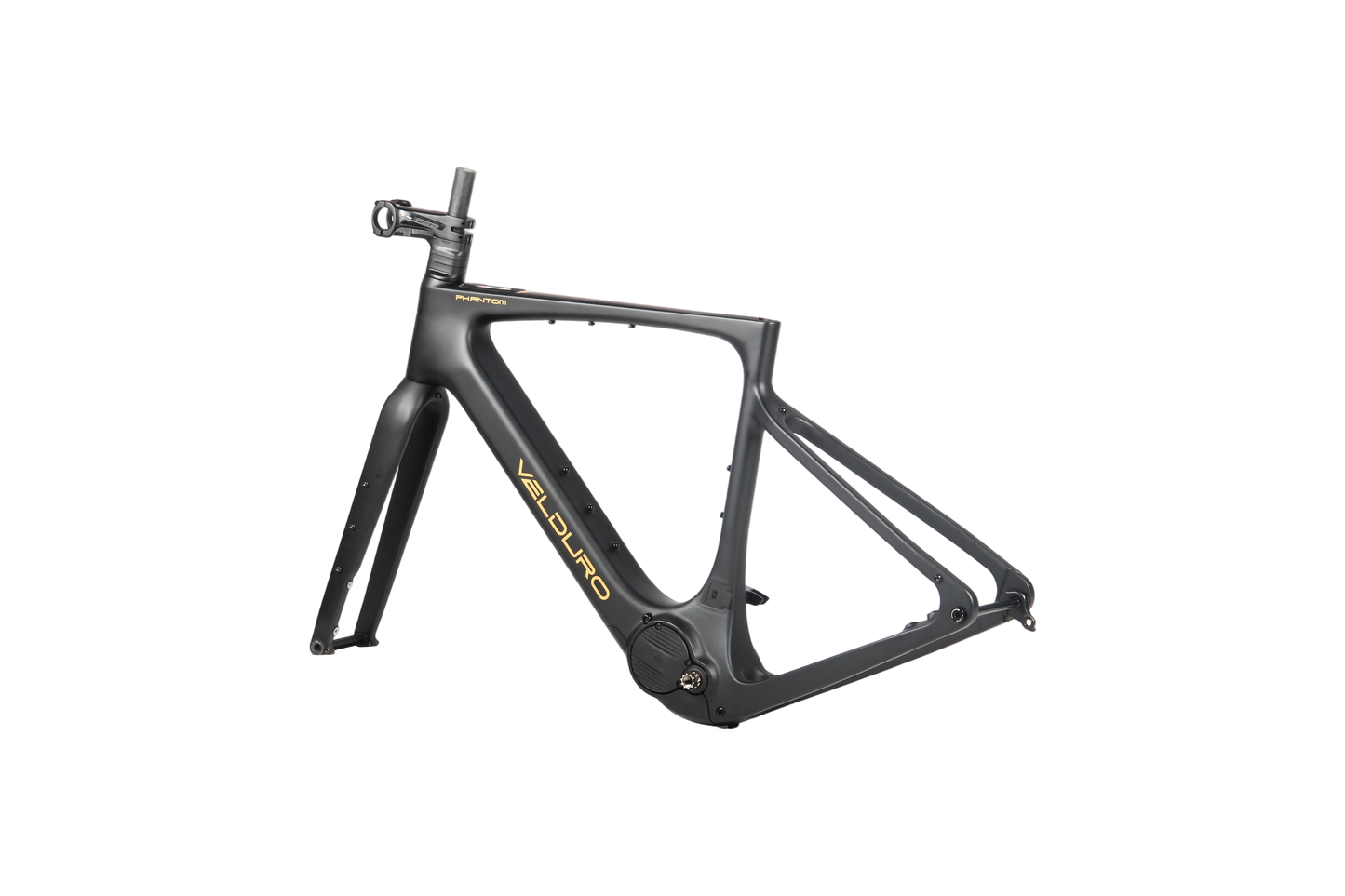

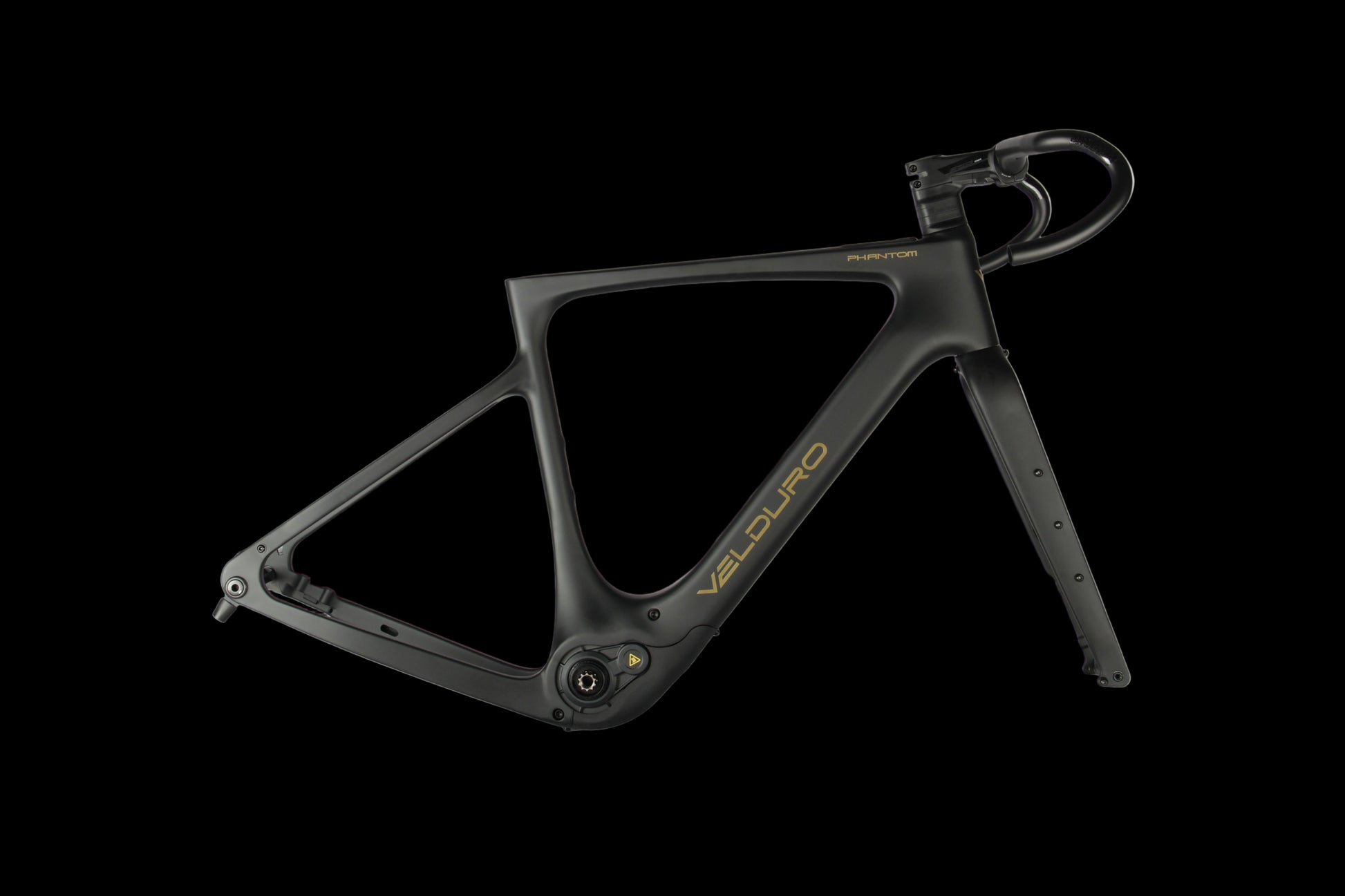

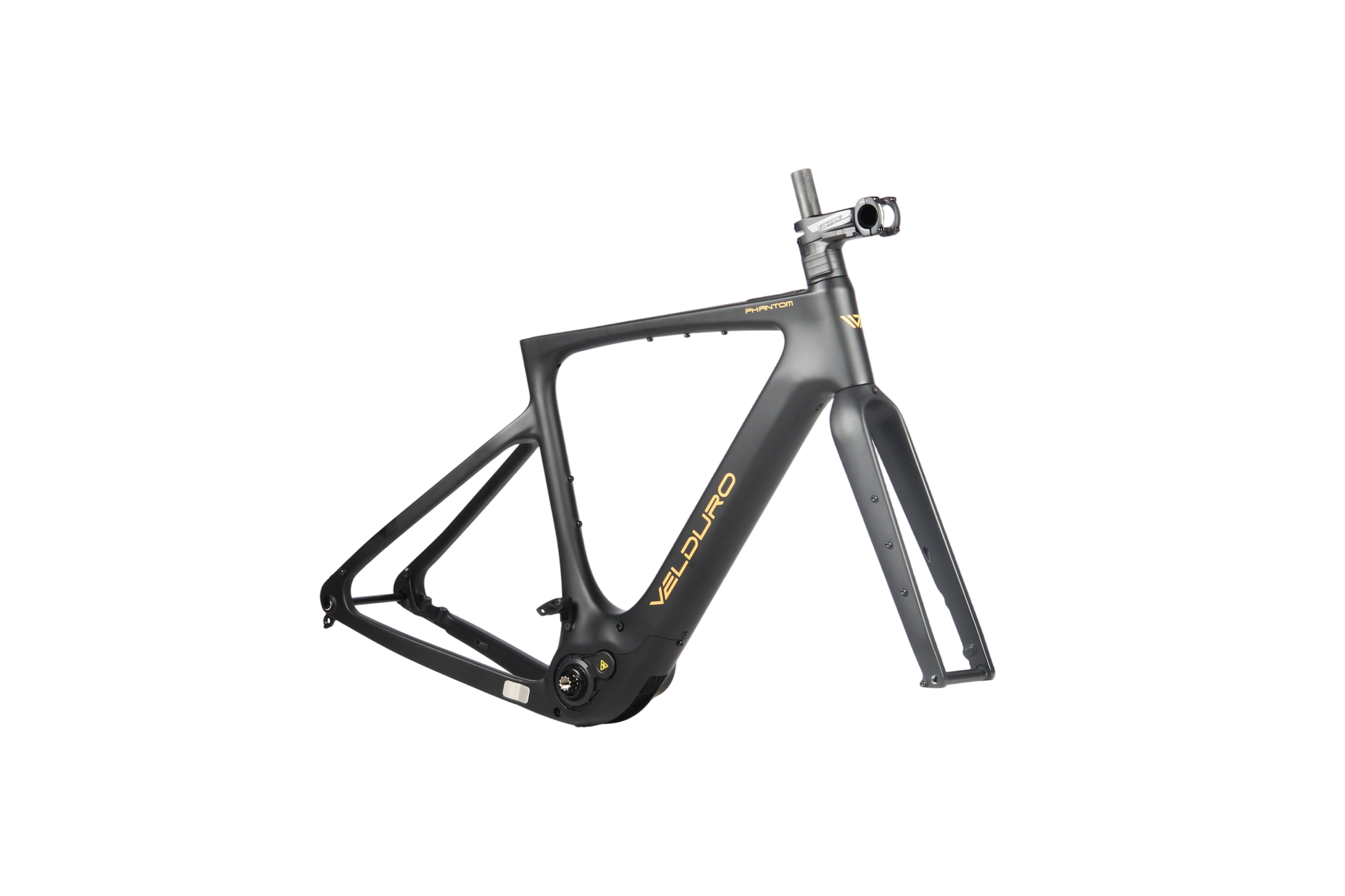

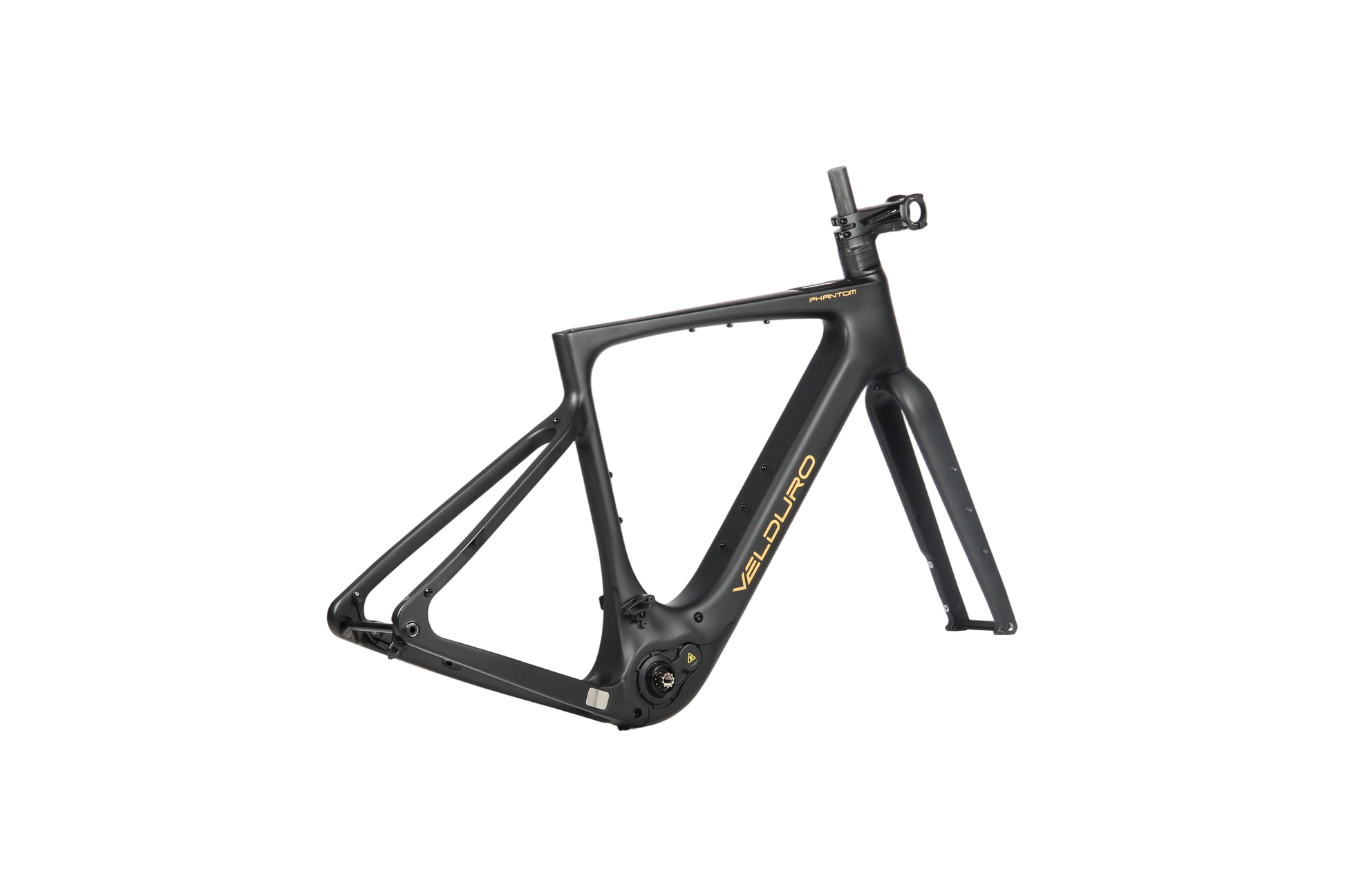

Phantom frame and fork

IF YOUR SIZE IS SOLD OUT PRE ORDER WITH ETA HERE

A blank canvas for you to build your dream e-gravel rig.

Comes with frame, fork, headset, stem, cranks, chainring, UDH, bottle cage bolts and a full DJI motor system

Available in size small, medium, large and extra large

View full details

  • This bike has been approved as a declared article pursuant to Section 16 (1) of the Gas and Electricity (Consumer Safety) Act 2017
    Certificate Number: NSW29843

  • Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas
Pre-order and see next availability here

SPECIFICATIONS

FRAME AND FORK

Frame: Carbon fibre monocoque e-gravel, 8 mounting points, rack mounts, maximum 50C tyre

Fork: Carbon gravel, 6 mounting points, 12x100, 50mm offset

Headset: FSA NO.55R 1.5" / ACE-2 Alloy

Rear Axle: 12x142mm alloy, black

DRIVETRAIN

Cranks: Avinox 165mm

Chainring: Velduro alloy 44T, 104 BCD, 3mm inward offset

BRAKES

WHEELS AND TYRES

CONTROLS

Stem: FSA SMR Alloy -6° S:70mm M:80mm L:90mm XL:100mm

MOTOR AND BATTERY

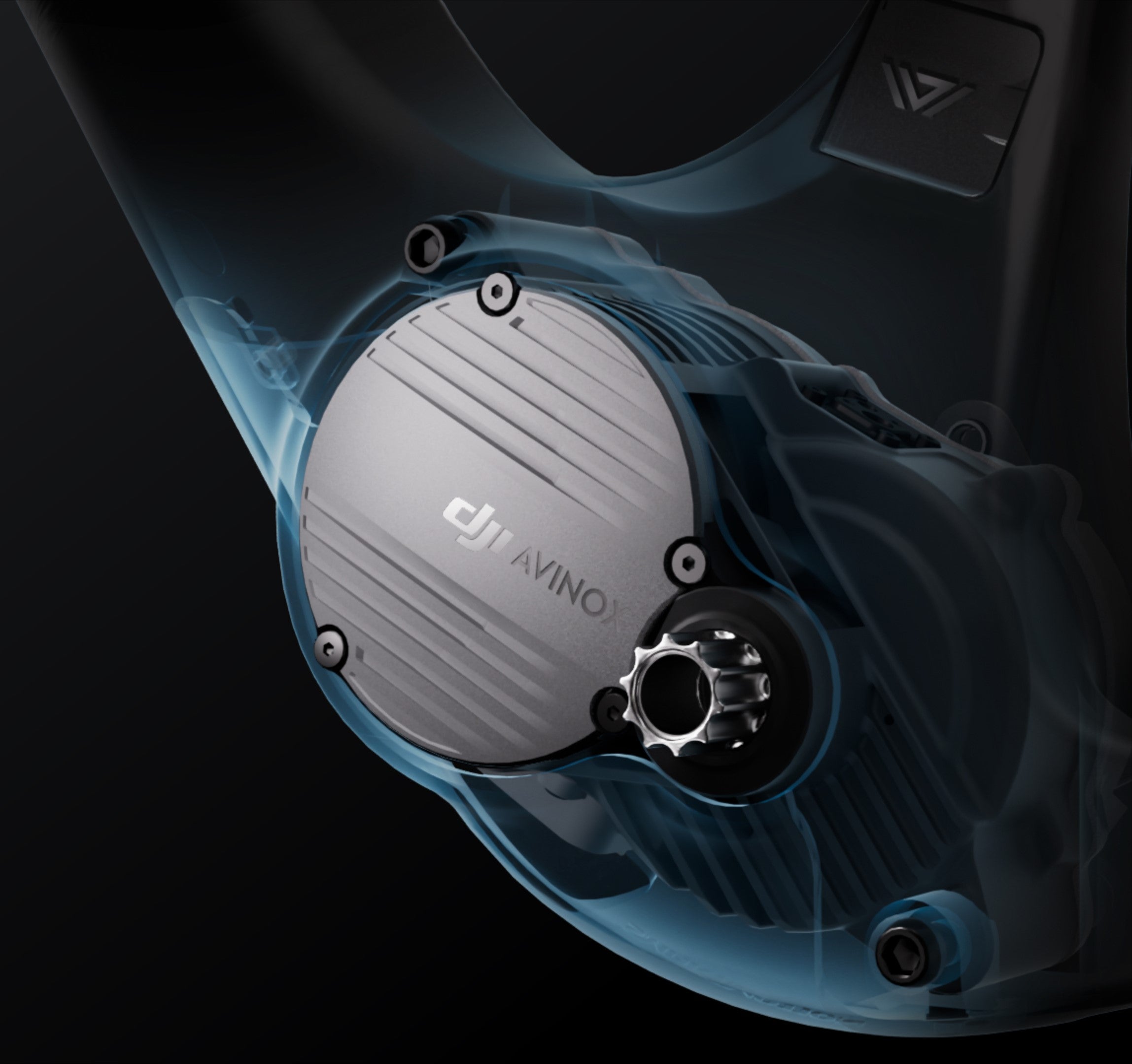

Motor: DJI Avinox M2 1100W 110Nm (125Nm boost)

Battery: DJI Avinox 36V 600Wh

Display: DJI AVinox 2"

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W

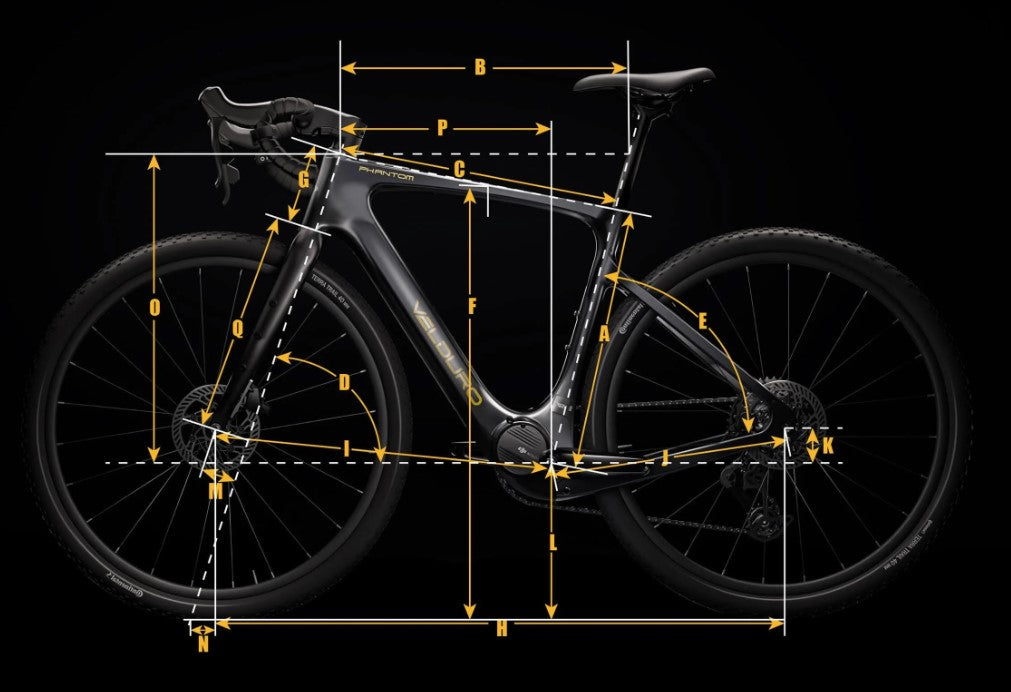

GEOMETRY

Section image
S M L XL
A Seat tube length (mm) 466 486 506 526
B Top Tube Horizontal (mm) 520 534 551 565
C Top Tube Actual (mm) 495 515 534 548
D Head Tube Angle 70° 70.5° 71° 71°
E Seat Tube Angle 74.4° 74.1° 73.6° 73.6°
F Standover (mm) 772 785 815 830
G Head Tube Length (mm) 135 147 159 179
H Wheelbase (mm) 1015 1019 1030 1040
I Front Center (mm) 600 605 606 620
J Chain Stay Length (mm) 425 425 430 430
K Bottom Bracket Drop (mm) 72.5 72.5 72.5 72.5
L Bottom Bracket Height (mm) 283 283 283 283
M Fork Rake (mm) 50 50 50 50
N Trail (mm) 64 63 63 63
O Stack (mm) 554 567 581 600
P Reach (mm) 366 372 377 385
Q Axle to Crown (mm) 395 395 395 395
Recommended rider height (cm) 160-170 172-182 180-188 185-195
