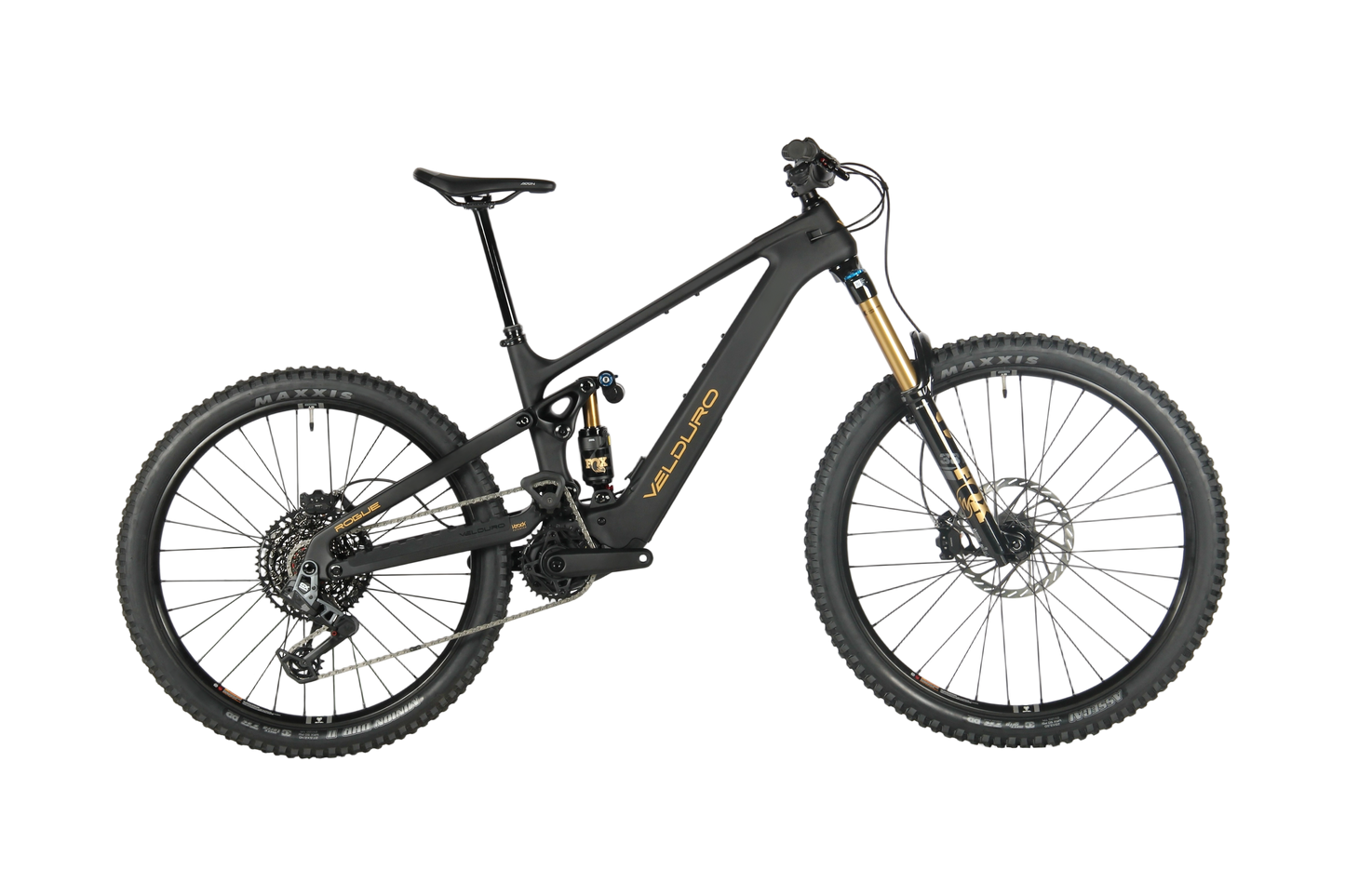

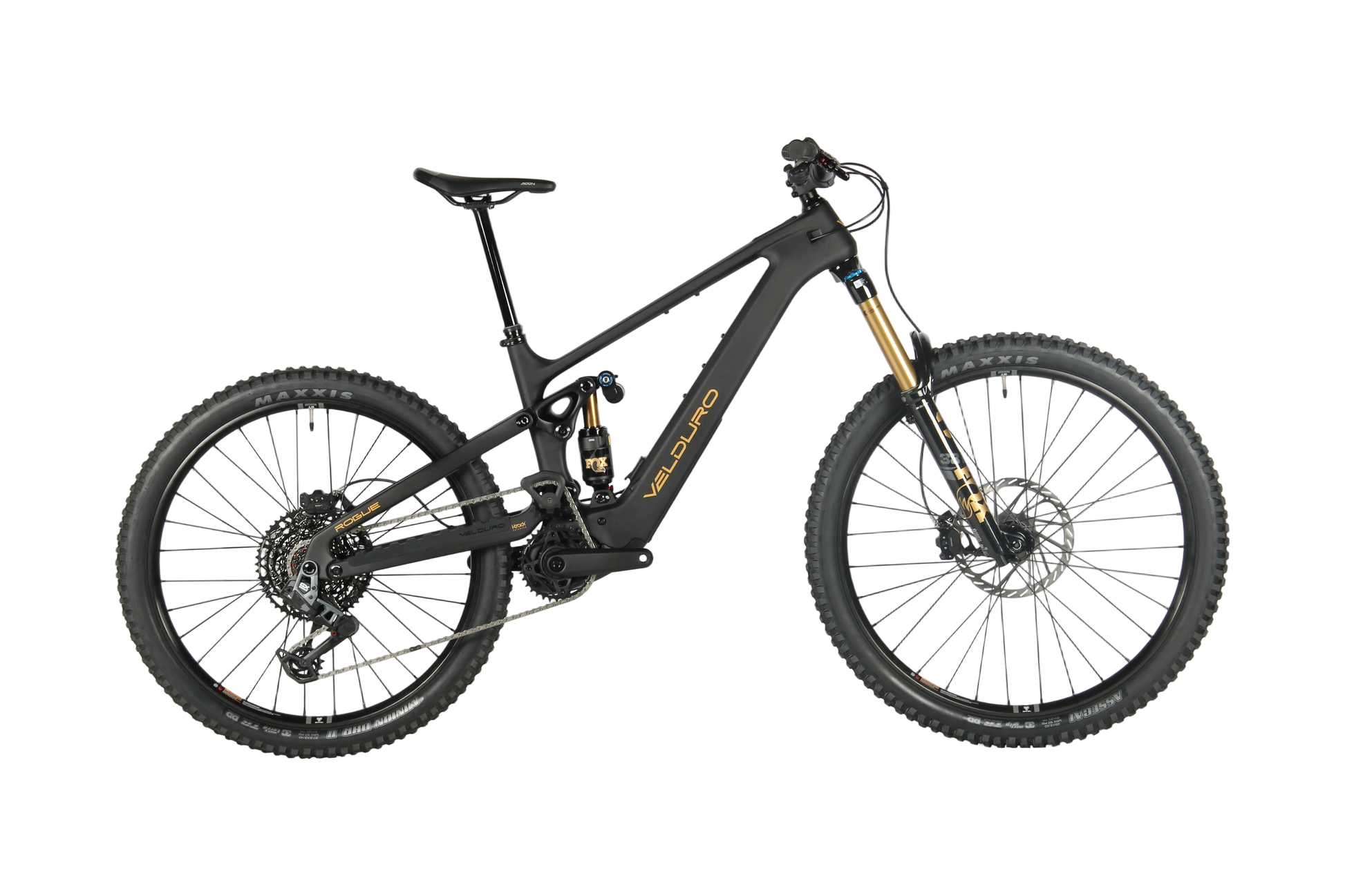

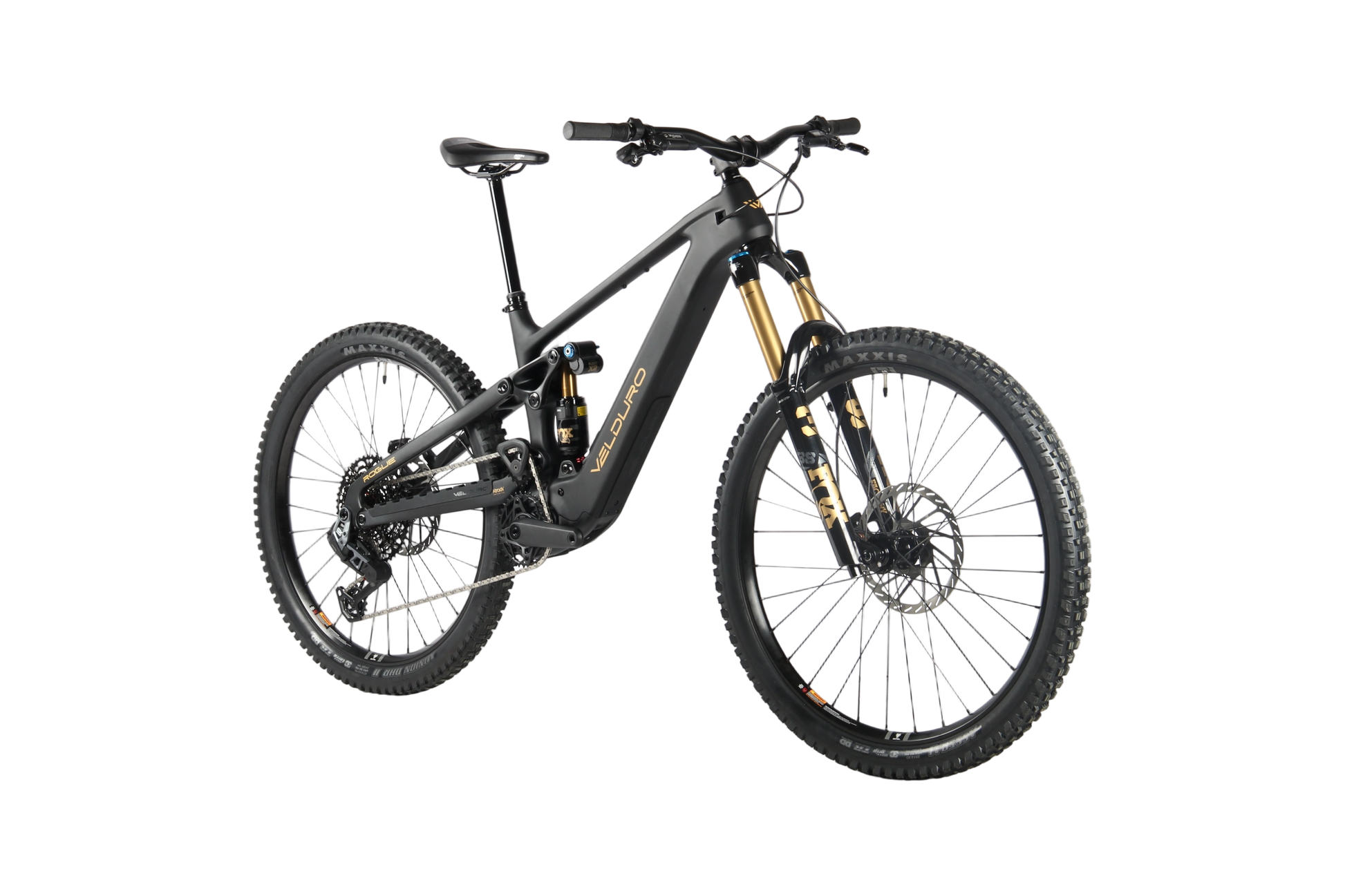

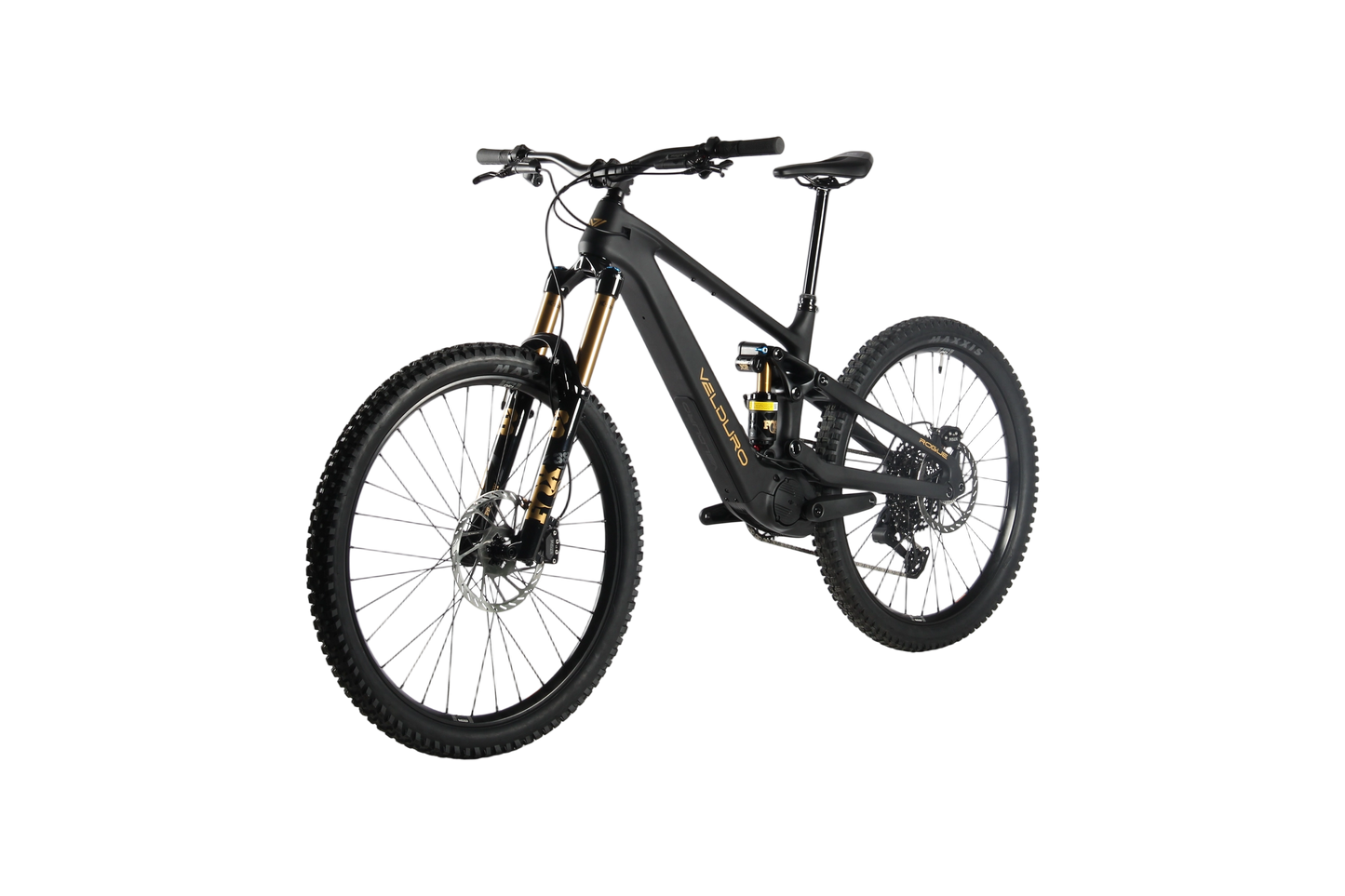

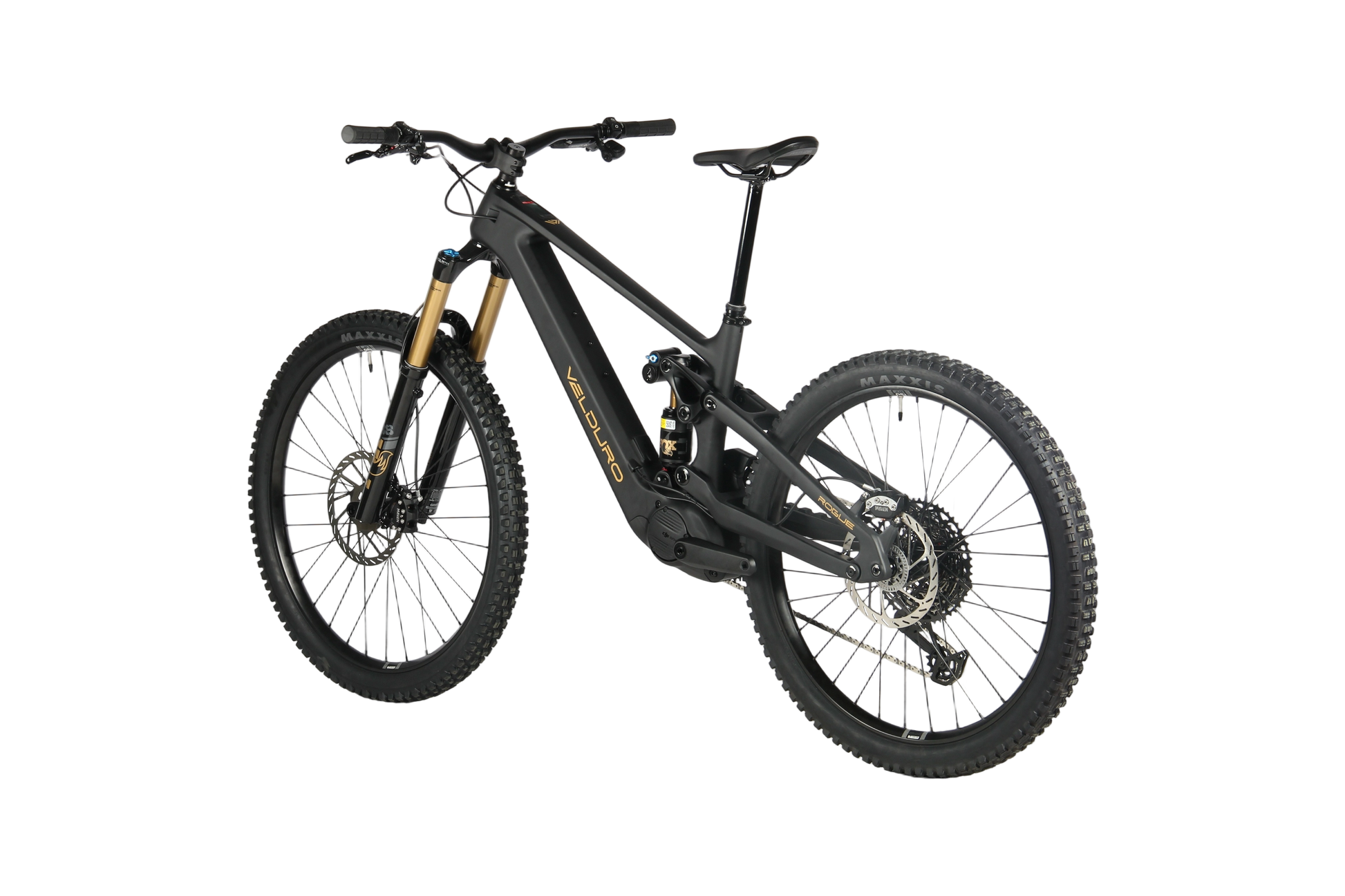

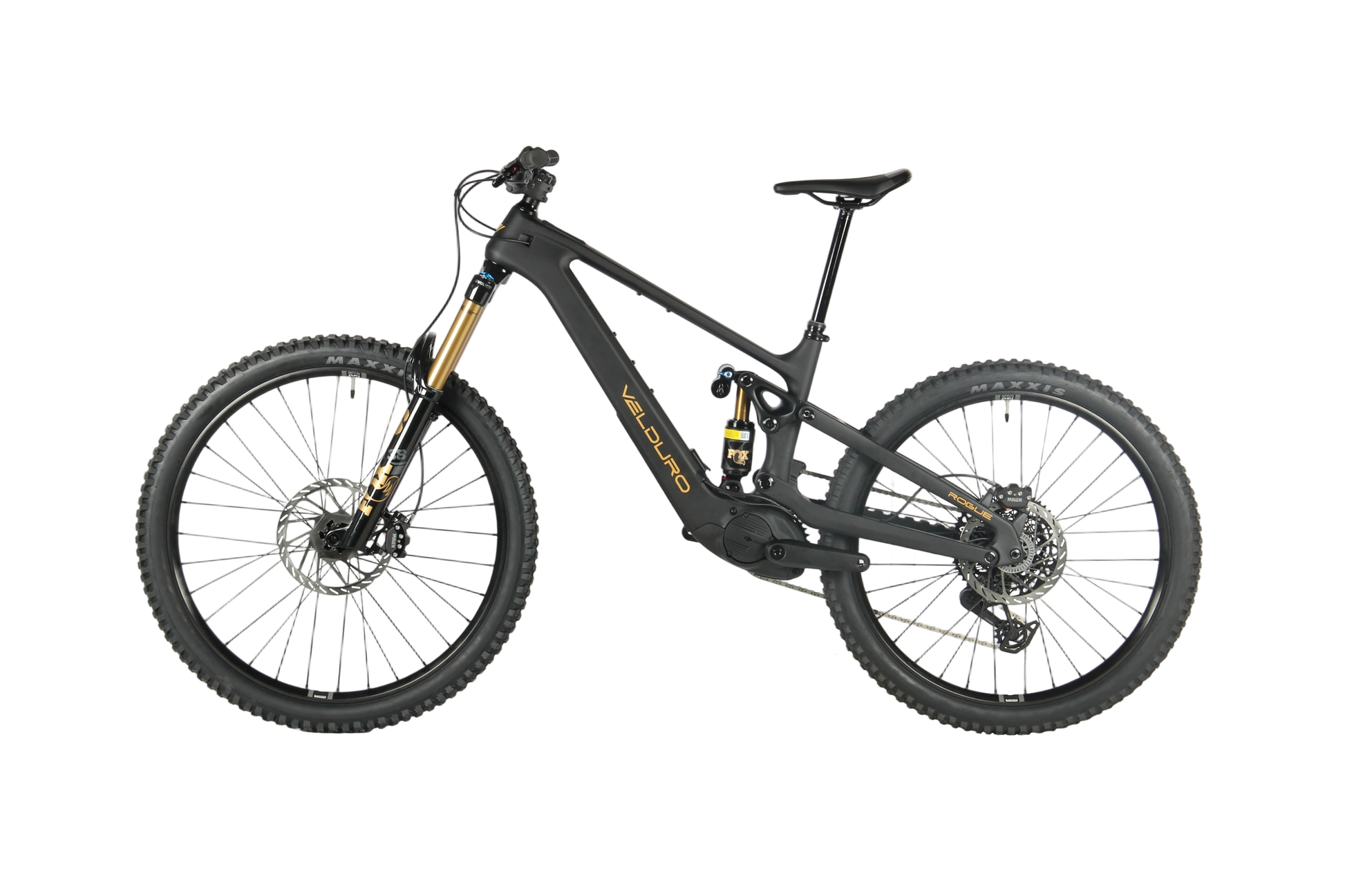

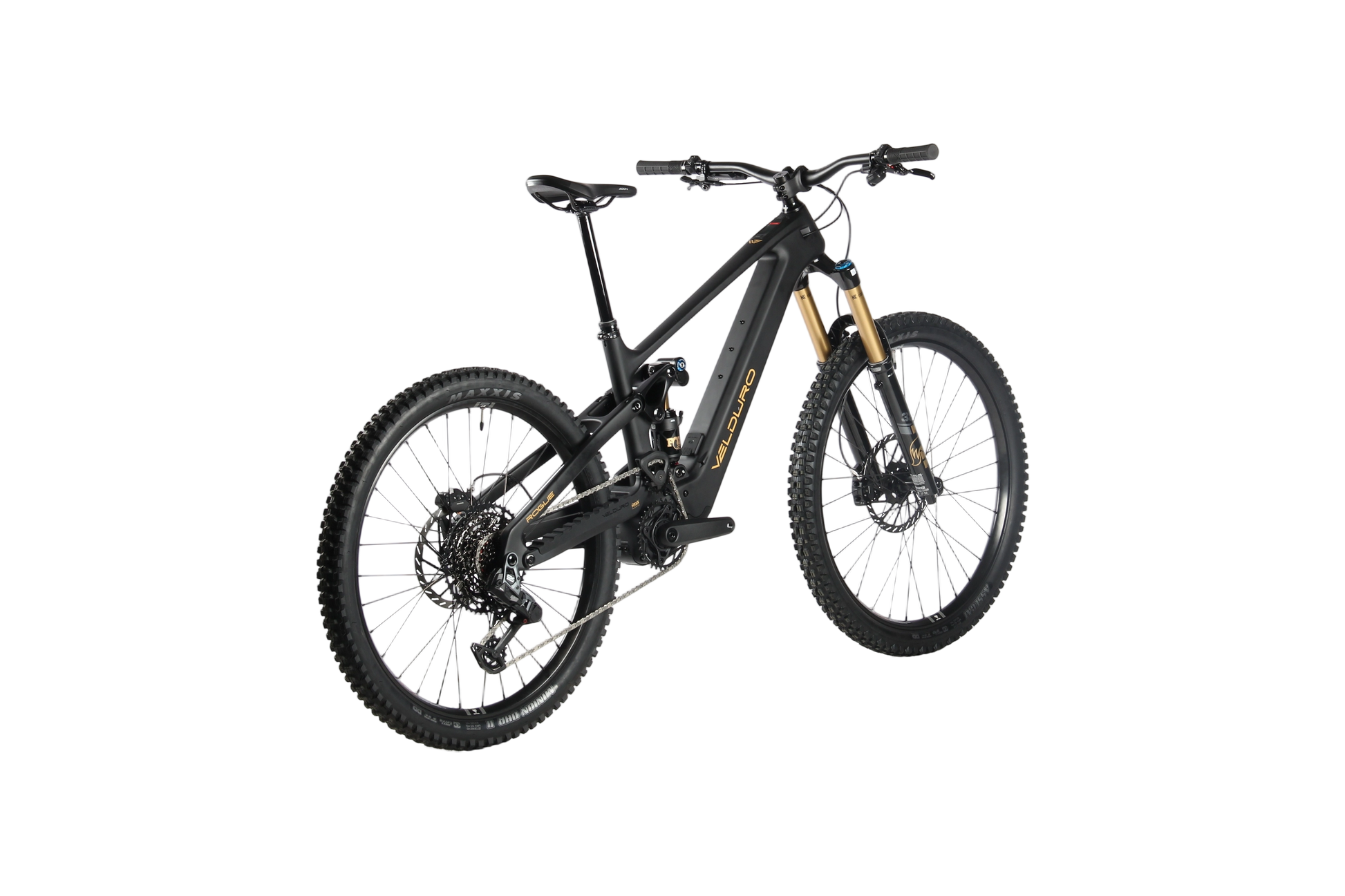

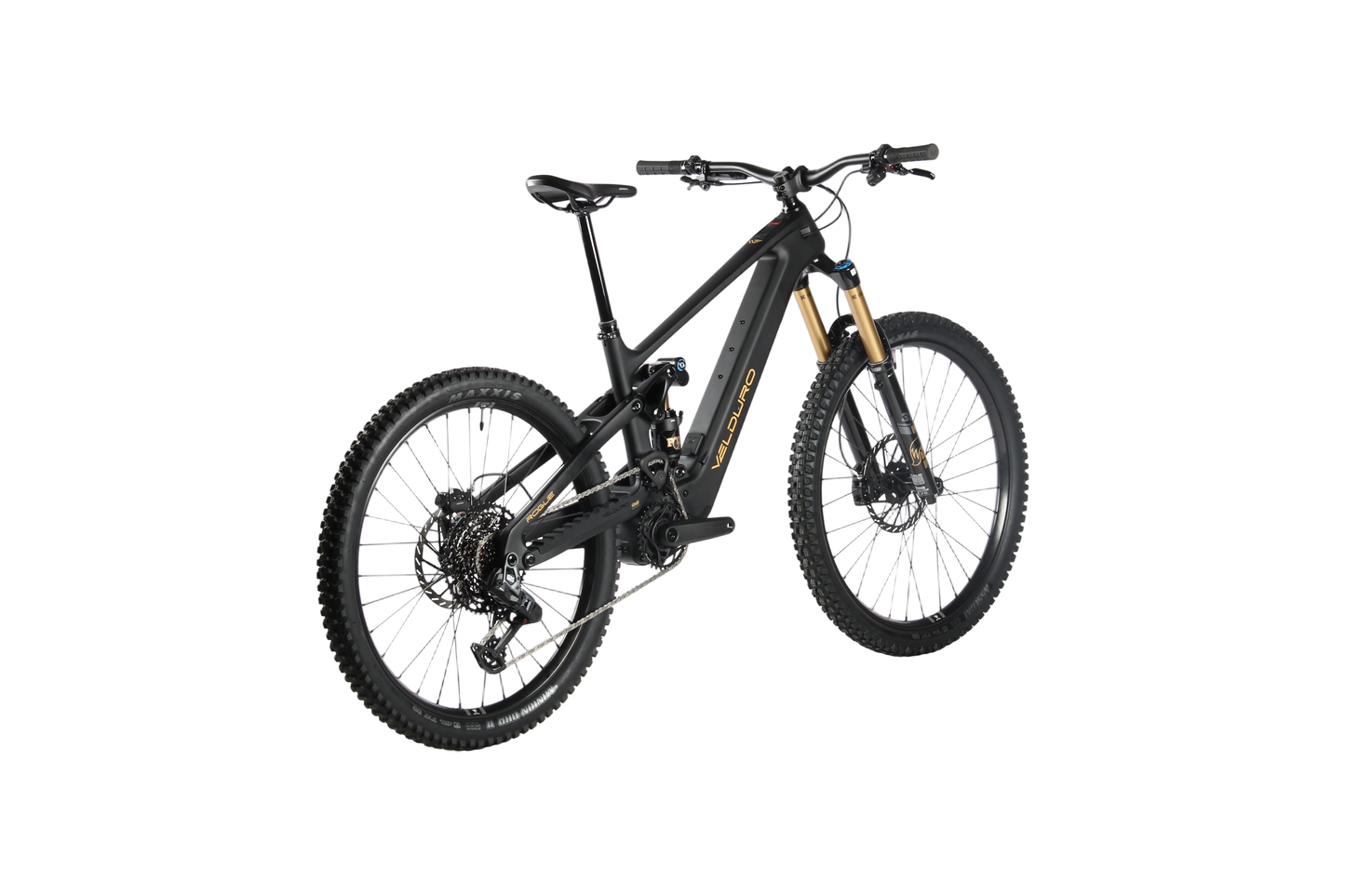

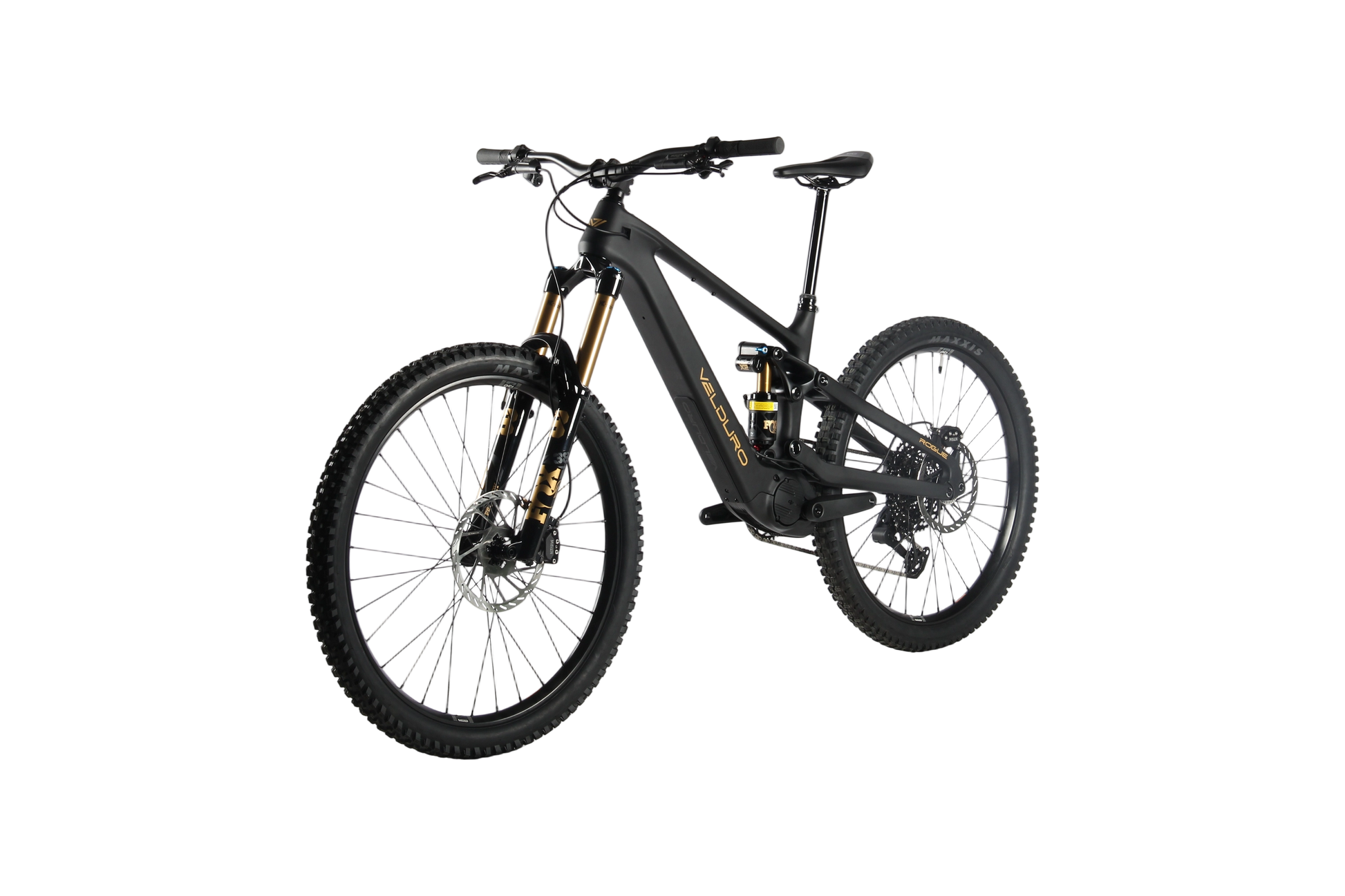

VELDURO ROGUE R COMPLETE

VELDURO ROGUE R COMPLETE

$15,469.00 AUD
$15,469.00 AUD
Sale Sold out
Taxes included.
Size

Premium Rogue build

High end parts, hand picked for performance and reliability. Dependable kit that just works, and keeps working.

Carbon fibre, 165-172mm travel, mid pivot i-track frame with a 27.5"/29" flip chip and progression adjustment.

Fox Factory suspension

Maven brakes

GX AXS transmission

Velduro carbon wheels

OneUp finishing kit

And of course, the Avinox drive unit with a 800wh battery

Big travel, strong parts, 120Nm of torque, big battery and 23kg

Available in size small, medium, large and extra large

Note: Due to worldwide component availability, specifications may change. All substitutions will be of equal quality and performance.

View full details
Pre-Order Here

SPECIFICATIONS

FRAME AND SUSPENSION

Frame: Carbon fibre enduro eMTB, 165-172mm travel, mullet or 29", oversize bearings, 12x148 axle spacing

Headset: FSA No.57 44/56

Fork: Fox 38 Factory Grip X2, 29", 170mm, 15x110

Shock: Fox X2 Factory, 205 x 65, trunnion

DRIVETRAIN

Shifter: Sram AXS pod controller

Derailleur: Sram GX transmission with power cable

Cassette: Sram XS-1275 10-52T

Chainring: Sram Eagle 104BCD 34T

Chain: Sram GX flat top

Cranks: Avinox SL Crank 155mm

BRAKES

Brakes: Sram Maven Silver

Rotors: Sram HS2 6 bolt 220mm front, 200mm rear

WHEELS AND TYRES

Wheels: Velduro e-Enduro Carbon EC-30

Rims: Carbon, F: 29, R: 27.5, 30mm internal width

Hubs: Alloy, 28H, 6 bolt, sealed cartridge bearing, straight pull; F: 2 bearing, 15x110; R: 4 bearing, 148x12, 78T XD

Spokes: Sapim e-light straight pull

Tyres: F: Assegai 29x2.5 3CG/TR/DD, R: Minion DHRII 27.5x2.4 3CT/TR/DD

Tubeless compatible but ships with tubes

CONTROLS

Handlebar: OneUp Alloy 35D 800L 35R

Stem: OneUp 42mm

Grips: Velduro Enduro

Seatpost: OneUp Dropper V3 31.6 S:180mm, M/L:210mm, XL:240mm

Saddle: Fizik Terra Aidon X5 145mm

Dropper lever: OneUp Dropper Lever V3.1

MOTOR AND BATTERY

Motor: DJI Avinox M1 250W 105Nm, boost to 1000W 120Nm

Battery: DJI Avinox 36V 800Wh

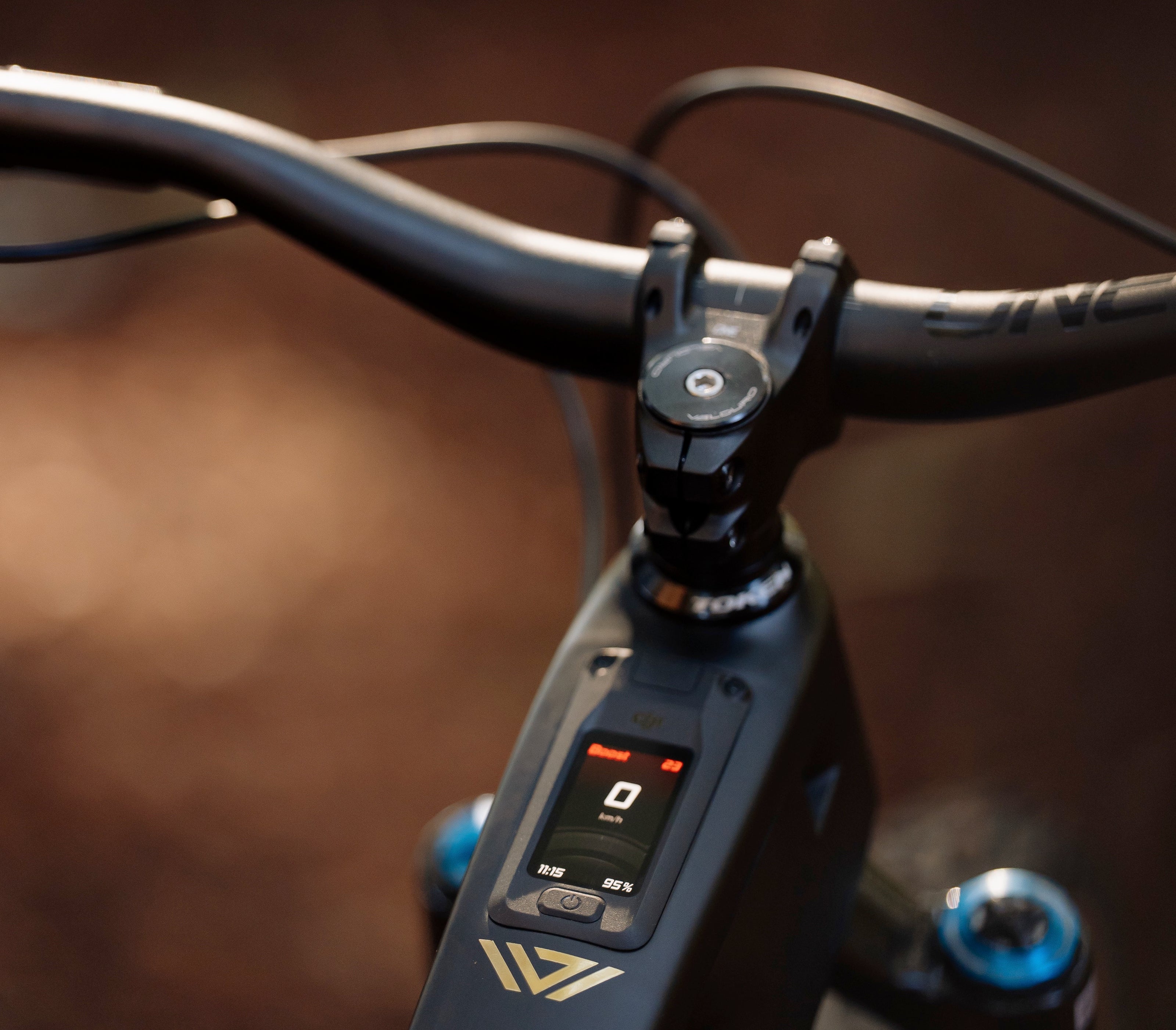

Display: DJI AVinox 2" OLED

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W

GEOMETRY

Section image
29" or MX wheels, standard shock position S M L XL
A Seat tube length (mm) 390 410 430 465
B Head tube angle 63.5° 63.5° 63.5° 63.5°
C Top tube length (mm) 573.5 599.5 624 652
D Reach (mm) 440 466 485 515
E Actual seat tube angle 75.5° 75.5° 75.5° 75.5°
F Seat tube offset (mm) 30 30 30 30
G Effective seat tube angle 78° 78° 78° 78°
H Chainstay length unsagged (mm) 440 440 440 440
H Chainstay length MX at 30% sag (mm) 450 450 450 450
H Chainstay length 29" at 30% sag (mm) 448 448 448 448
I BB drop from MX rear wheel (mm) 12 12 12 12
J BB drop from front wheel (mm) 31 31 31 31
K Head tube length (mm) 110 110 120 125
L Axle to crown (mm) 584 584 584 584
M Fork offset (mm) 44 44 44 44
N Trail (mm) 140.1 140.1 140.1 140.1
O Stack (mm) 632.5 632.5 641.4 645.9
P Wheelbase (mm) 1230 1265 1300 1335
Recommended rider height (cm) 160-172 172-182 180-188 185-195
