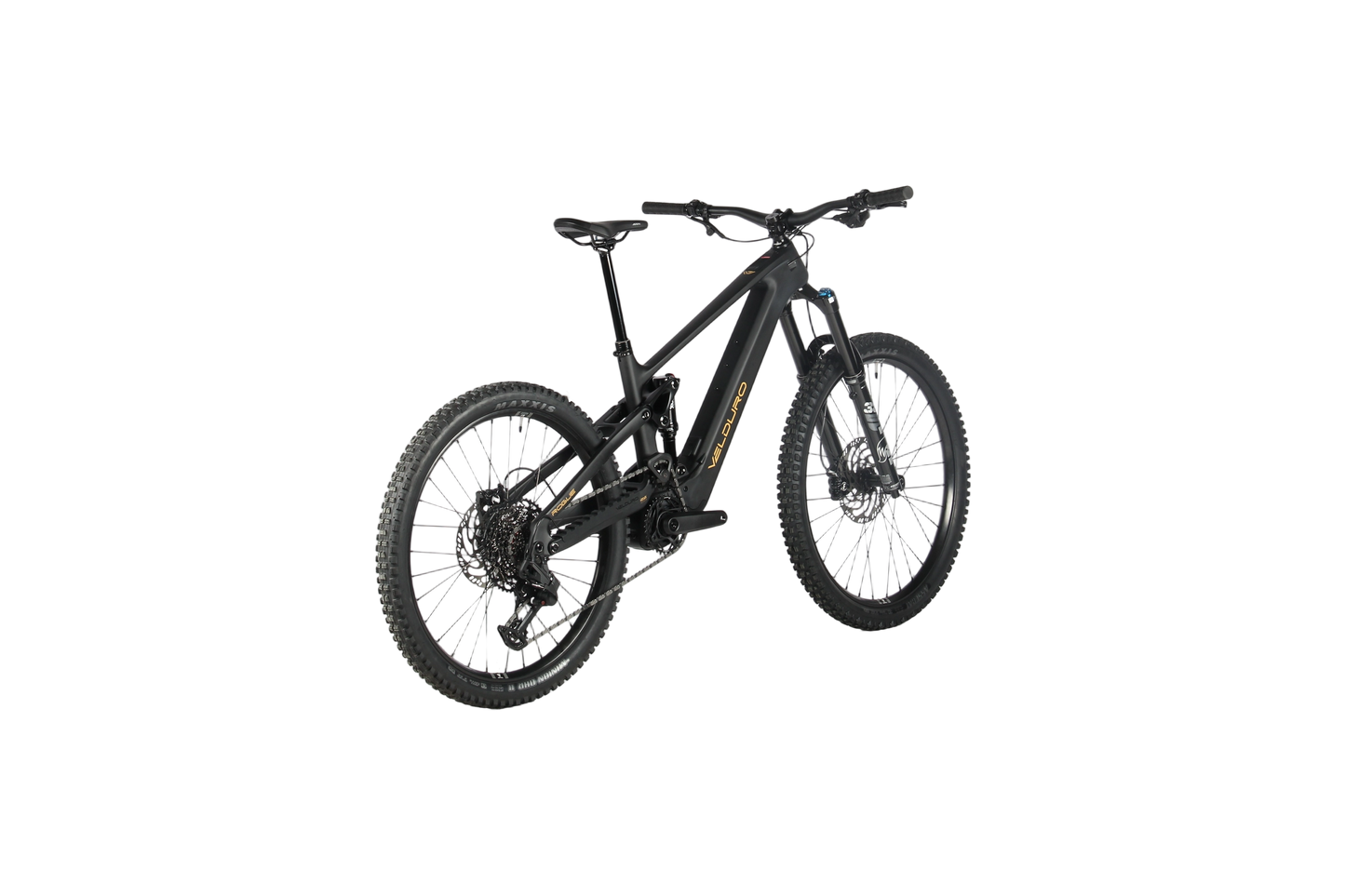

VELDURO ROGUE X COMPLETE
VELDURO ROGUE X COMPLETE
Out of stock
Couldn't load pickup availability
Standard Rogue build
IF YOUR SIZE IS SOLD OUT PRE ORDER WITH ETA HERE
Save some cash without skimping on performance. Solid parts, hand picked for performance and reliability. Dependable kit that just works, and keeps working.
Carbon fibre, up to 172mm travel, mid pivot i-track frame with a 27.5"/29" flip chip and progression adjustment.
Fox suspension
Magura brakes
Eagle 70 Transmission
Velduro finishing kit
And of course, the Avinox drive unit with a 800Wh battery.
Big travel, strong parts, big torque and a big battery.
Note: Due to worldwide component availability, specifications may change. All substitutions will be of equal quality and performance.
Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas
SPECIFICATIONS
FRAME AND SUSPENSION
DRIVETRAIN
BRAKES
WHEELS AND TYRES
CONTROLS
MOTOR AND BATTERY
GEOMETRY
| 29" or MX wheels, standard shock position | S | M | L | XL | |
| A | Seat tube length (mm) | 390 | 410 | 430 | 465 |
| B | Head tube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| C | Top tube length (mm) | 573.6 | 599.6 | 623.9 | 652 |
| Effective top tube length (mm) | 582 | 604 | 623 | 647.5 | |
| D | Reach (mm) | 440 | 466 | 485 | 515 |
| E | Actual seat tube angle | 75.5° | 75.5° | 75.5° | 75.5° |
| F | Seat tube offset (mm) | 30 | 30 | 30 | 30 |
| G | Effective seat tube angle | 78° | 78° | 78° | 78° |
| H | Chainstay length unsagged (mm) | 440 | 440 | 440 | 440 |
| H | Approx. rear centre growth MX 30% sag (mm) | 10 | 10 | 10 | 10 |
| H | Approx. rear centre growth 29" at 30% sag (mm) | 8 | 8 | 8 | 8 |
| I | BB drop from MX rear wheel (mm) | 10.5 | 10.5 | 10 | 10 |
| J | BB drop from front wheel (mm) | 34 | 34 | 34 | 34 |
| BB height (mm) | 343.5 | 343.5 | 344 | 344 | |
| K | Head tube length (mm) | 110 | 110 | 120 | 125 |
| L | Axle to crown (mm) | 584 | 584 | 584 | 584 |
| M | Fork offset (mm) | 44 | 44 | 44 | 44 |
| N | Trail (mm) | 140 | 140 | 140 | 140 |
| O | Stack (mm) | 634 | 634 | 643.5 | 648 |
| P | Wheelbase (mm) | 1229 | 1255 | 1276 | 1311 |
| Max seat post insertion (mm) | 260 | 280 | 300 | 320 | |
| Standover (mm) | 691.5 | 702.5 | 723 | 726 | |
| Recommended rider height (cm) | 160-172 | 172-182 | 180-188 | 185-195 |
