VELDURO ROGUE FRAME

VELDURO ROGUE FRAME

$7,739.00 AUD
$7,739.00 AUD
Sale Sold out
Taxes included.
Size
Shock

Your dream build Rogue starts here

Transfer parts from another bike or start from the ground up.

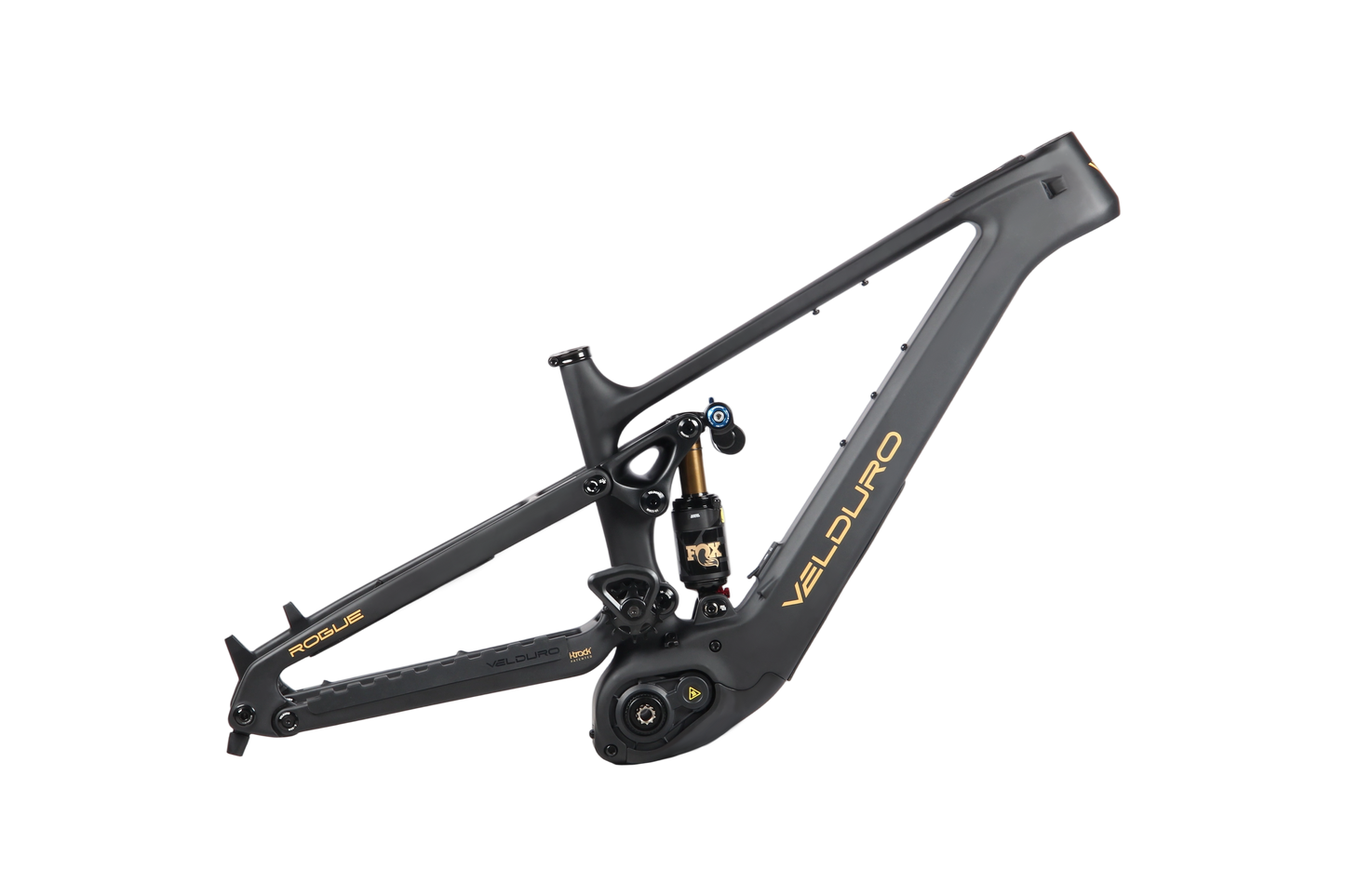

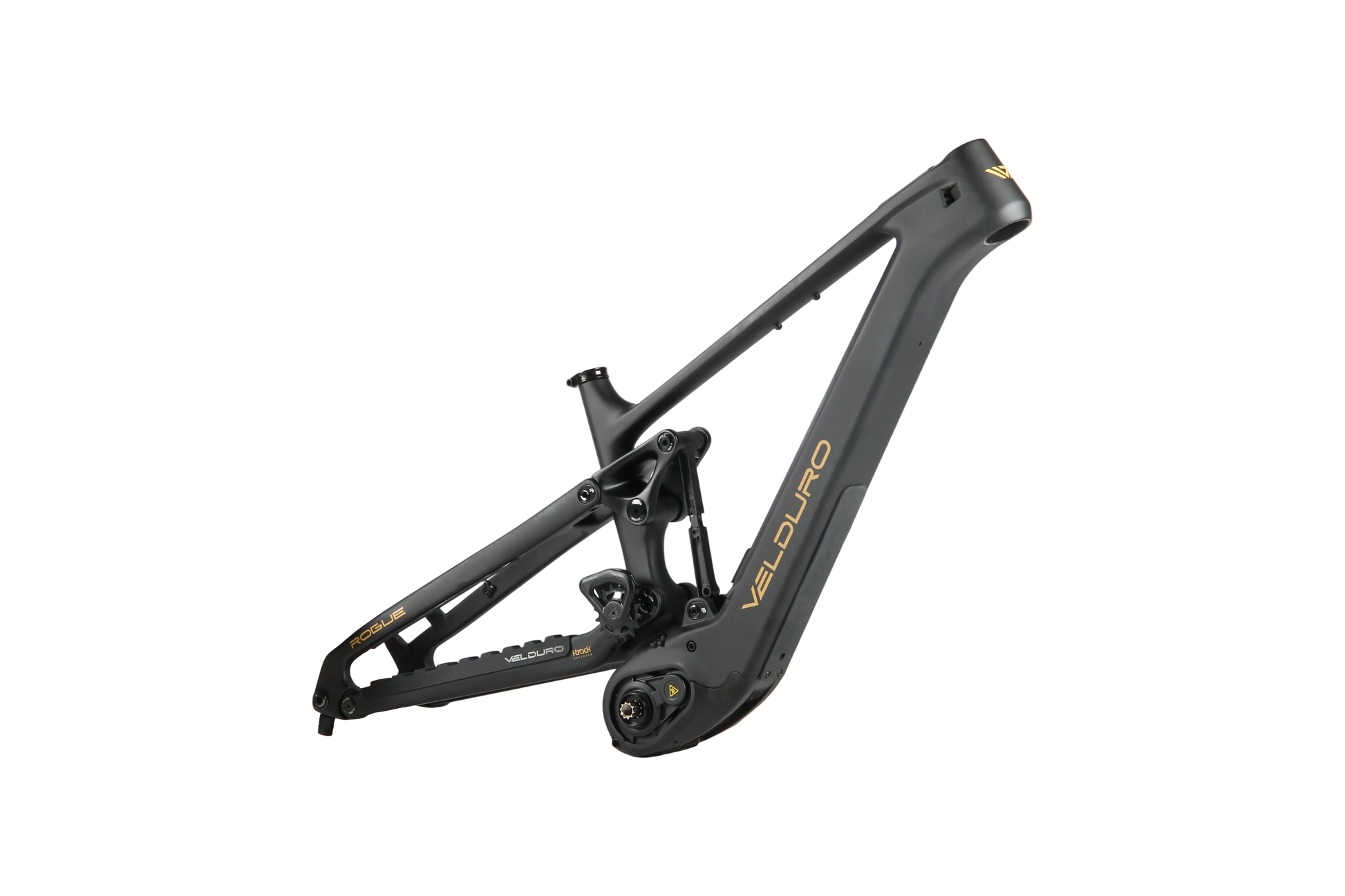

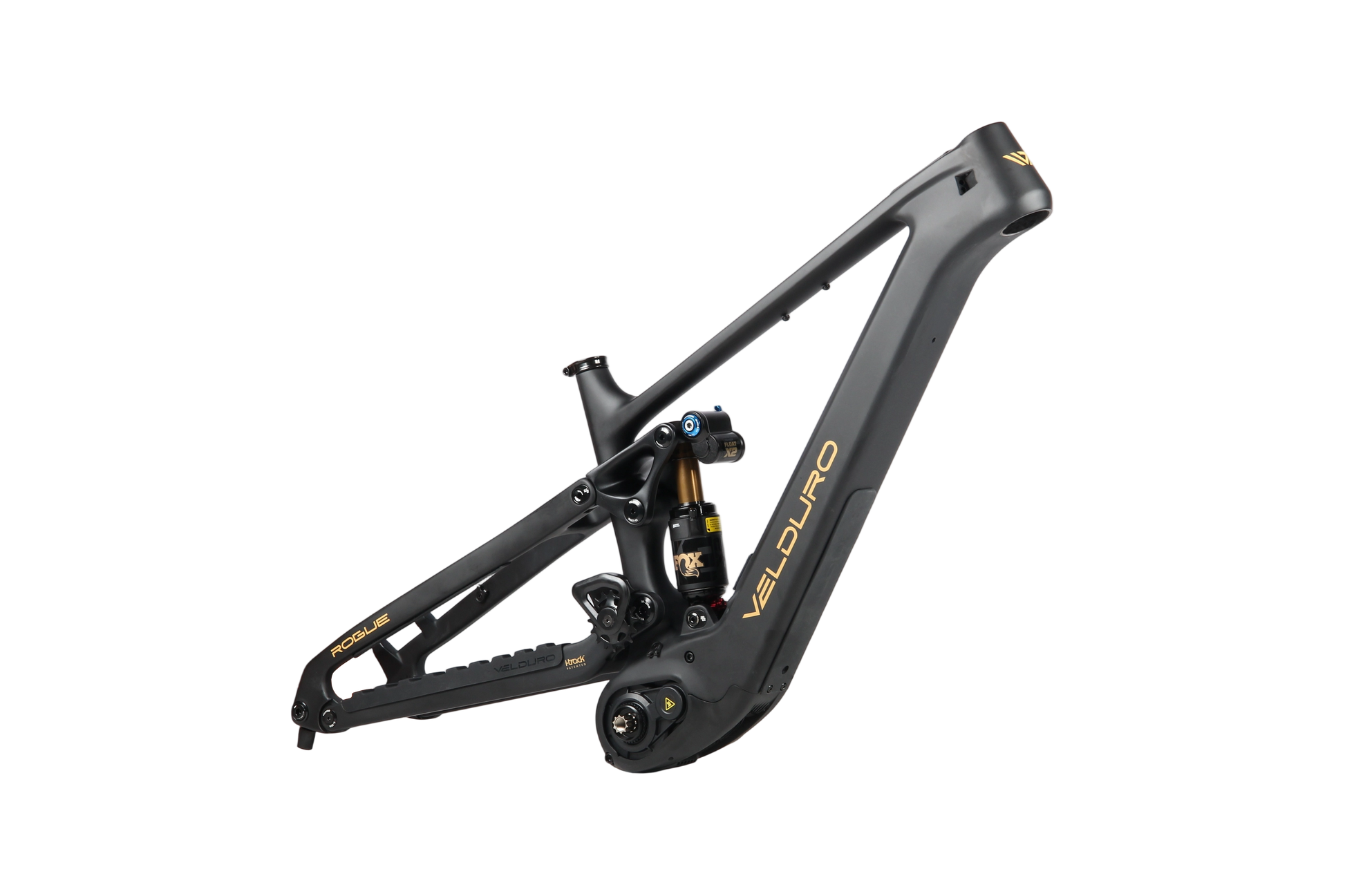

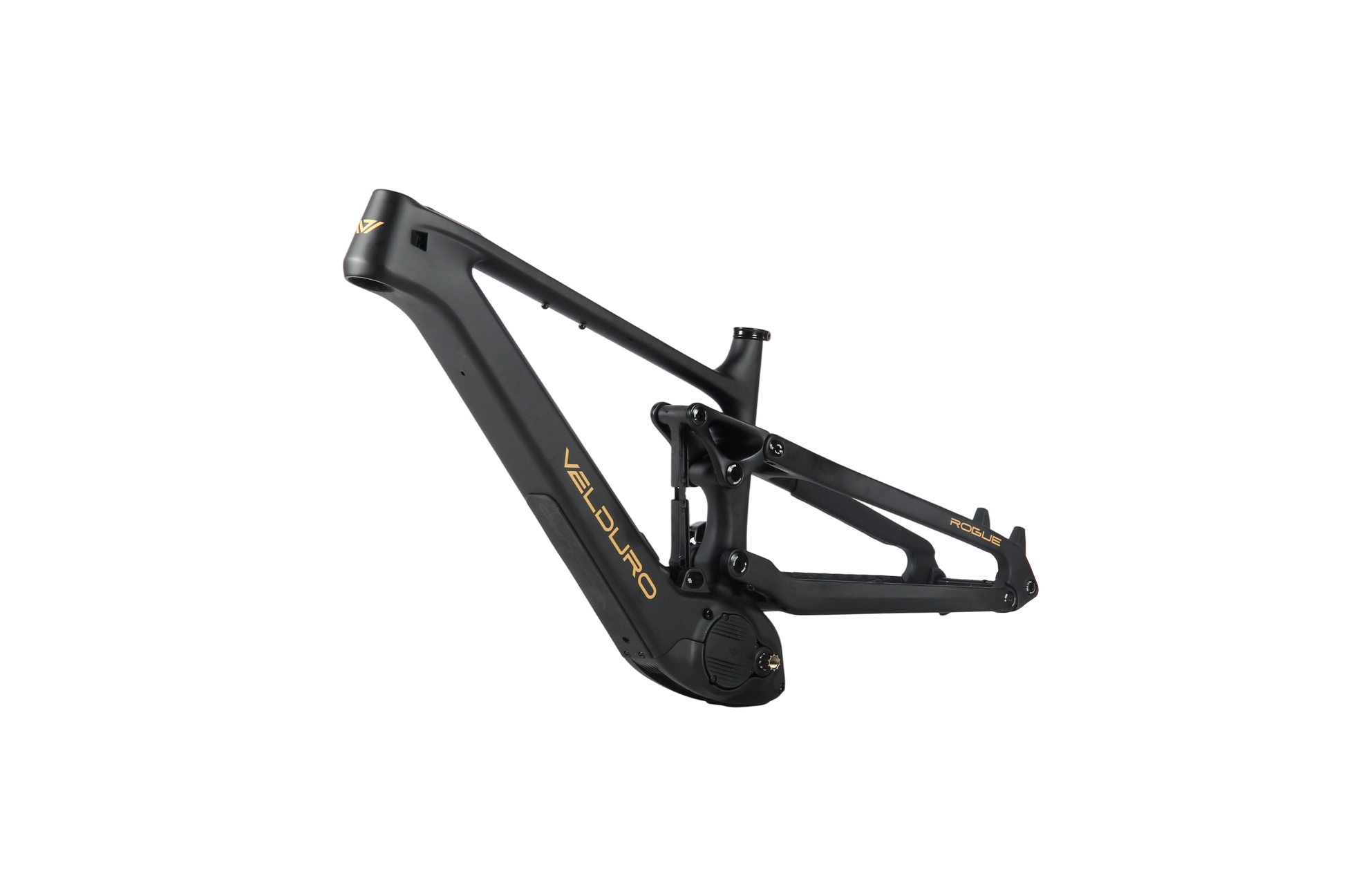

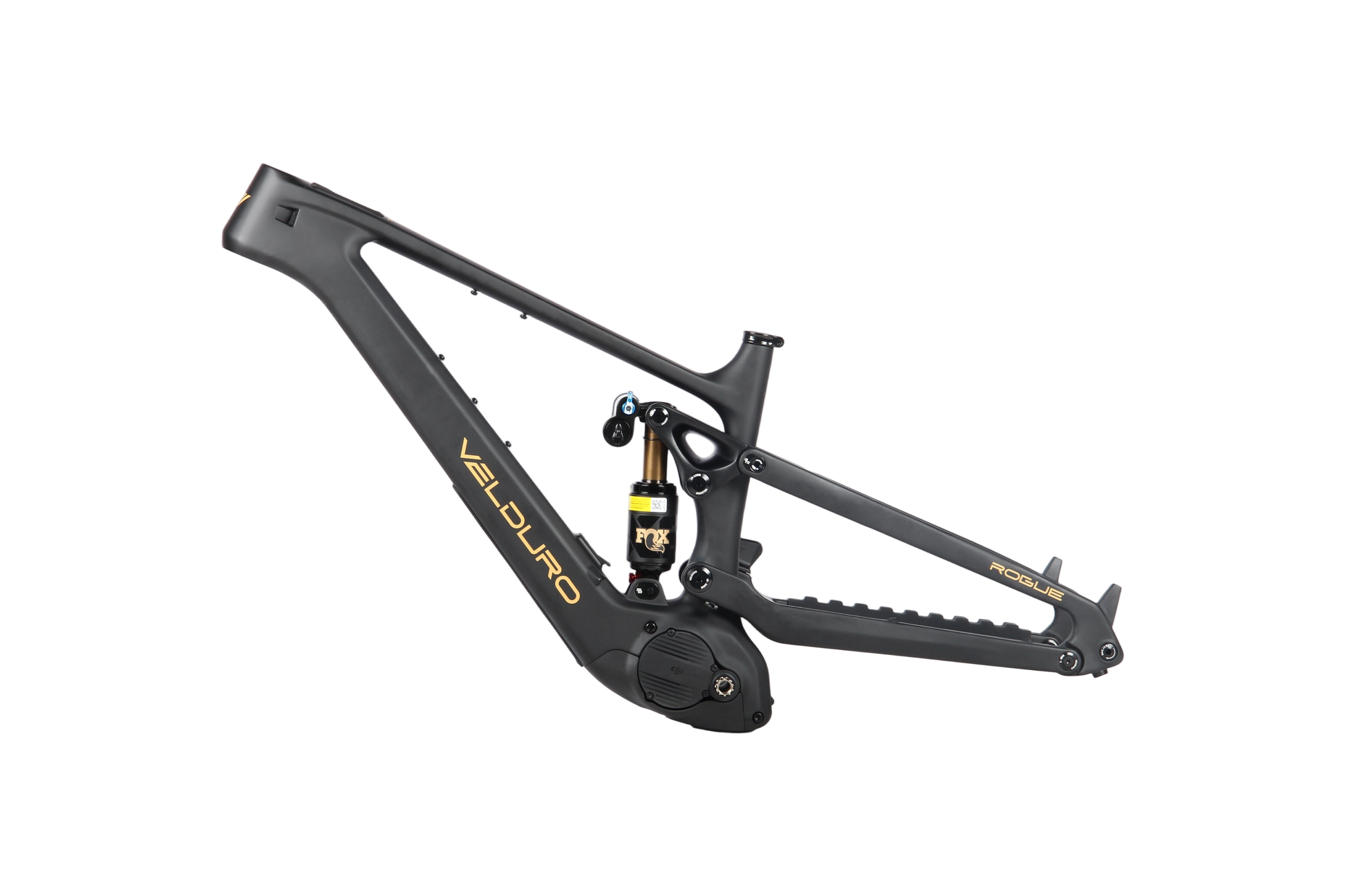

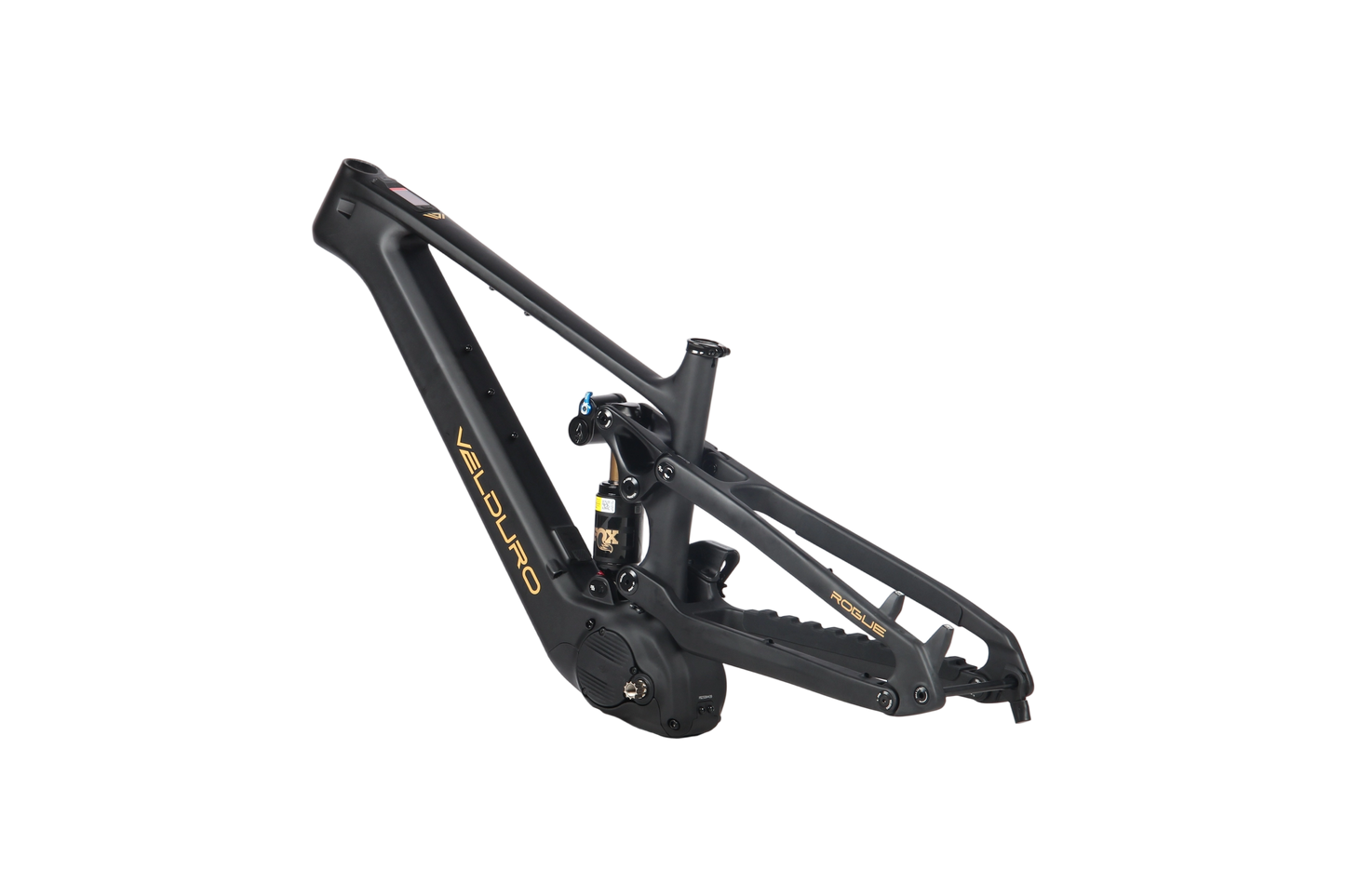

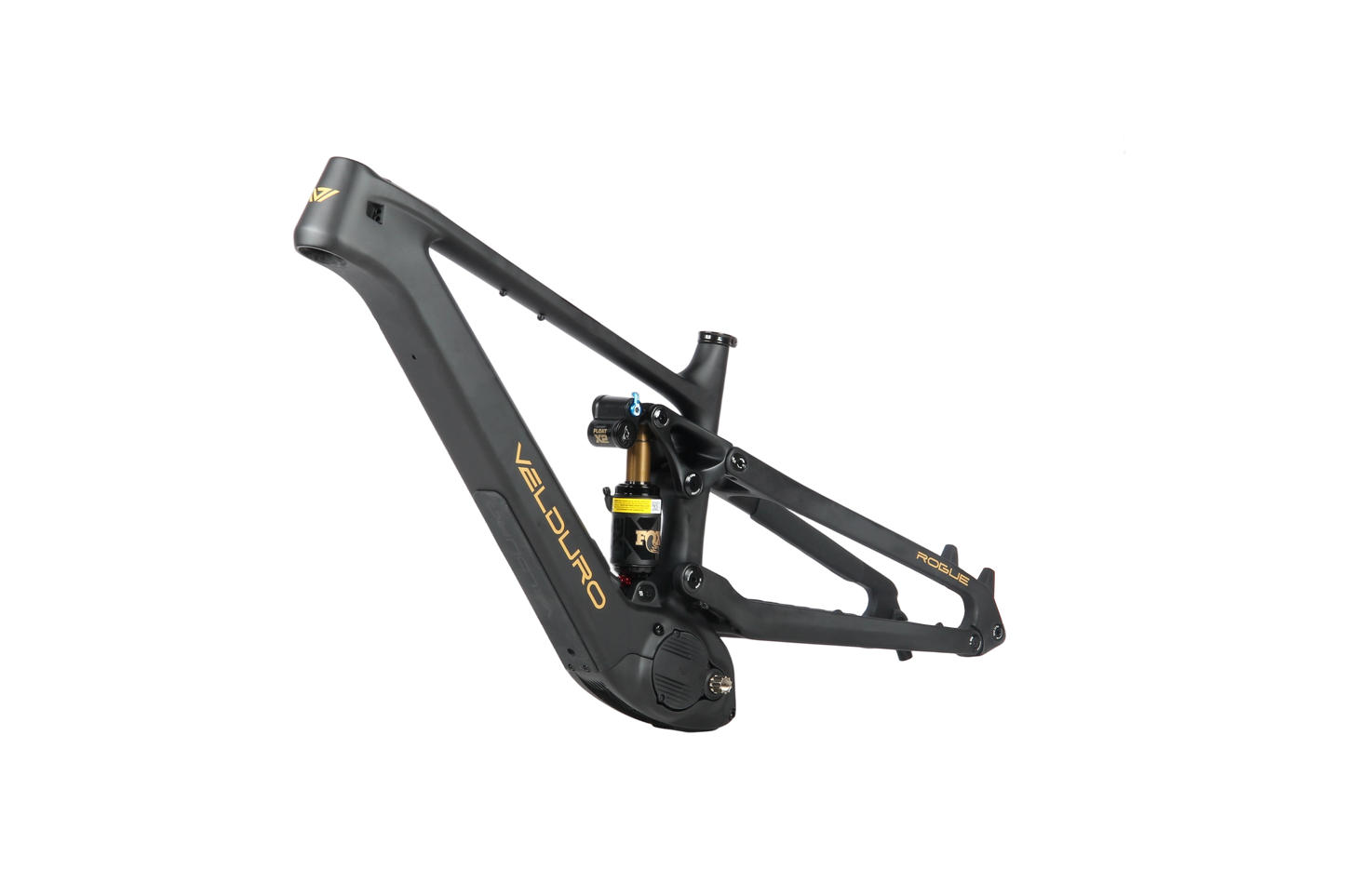

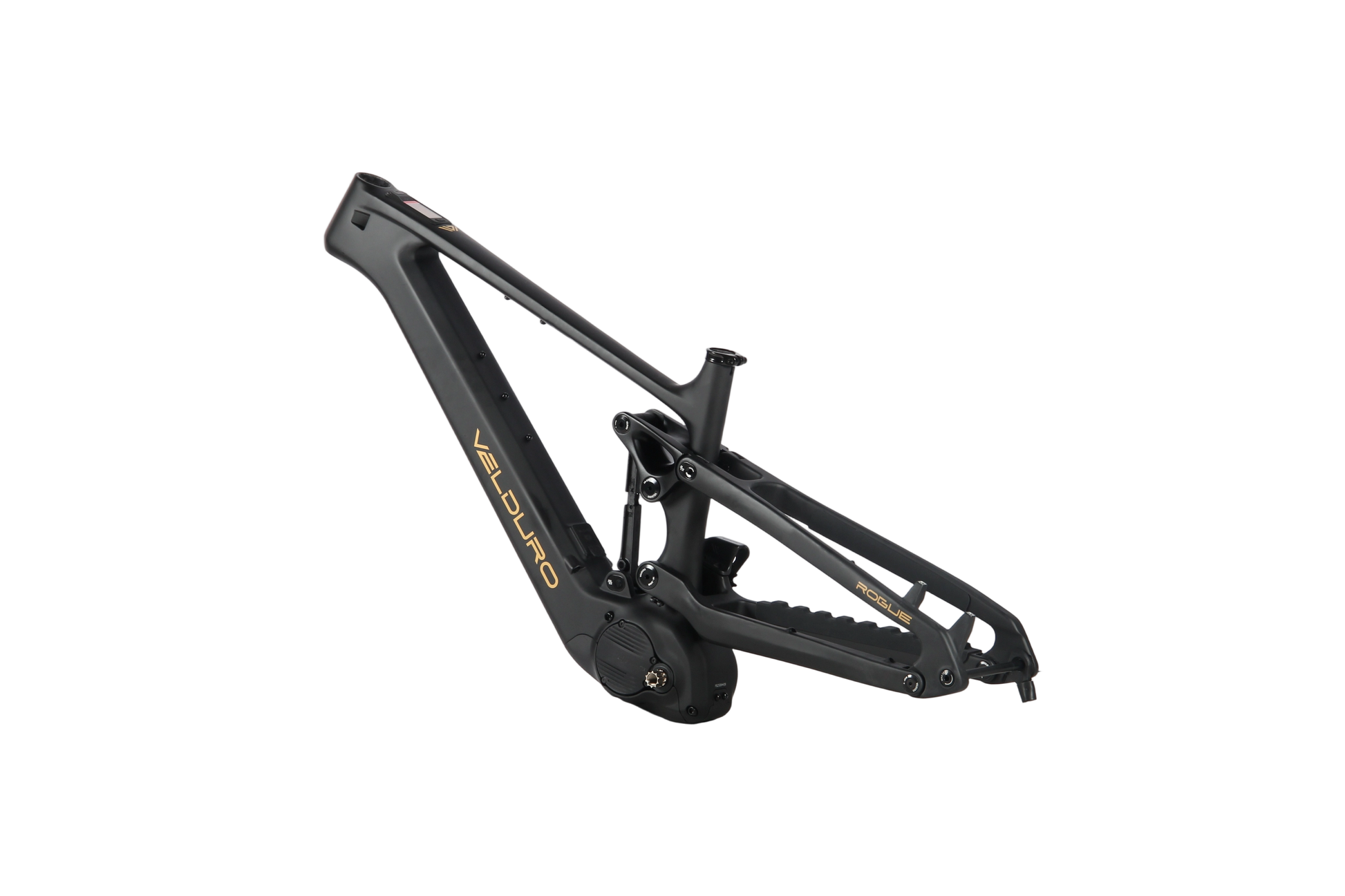

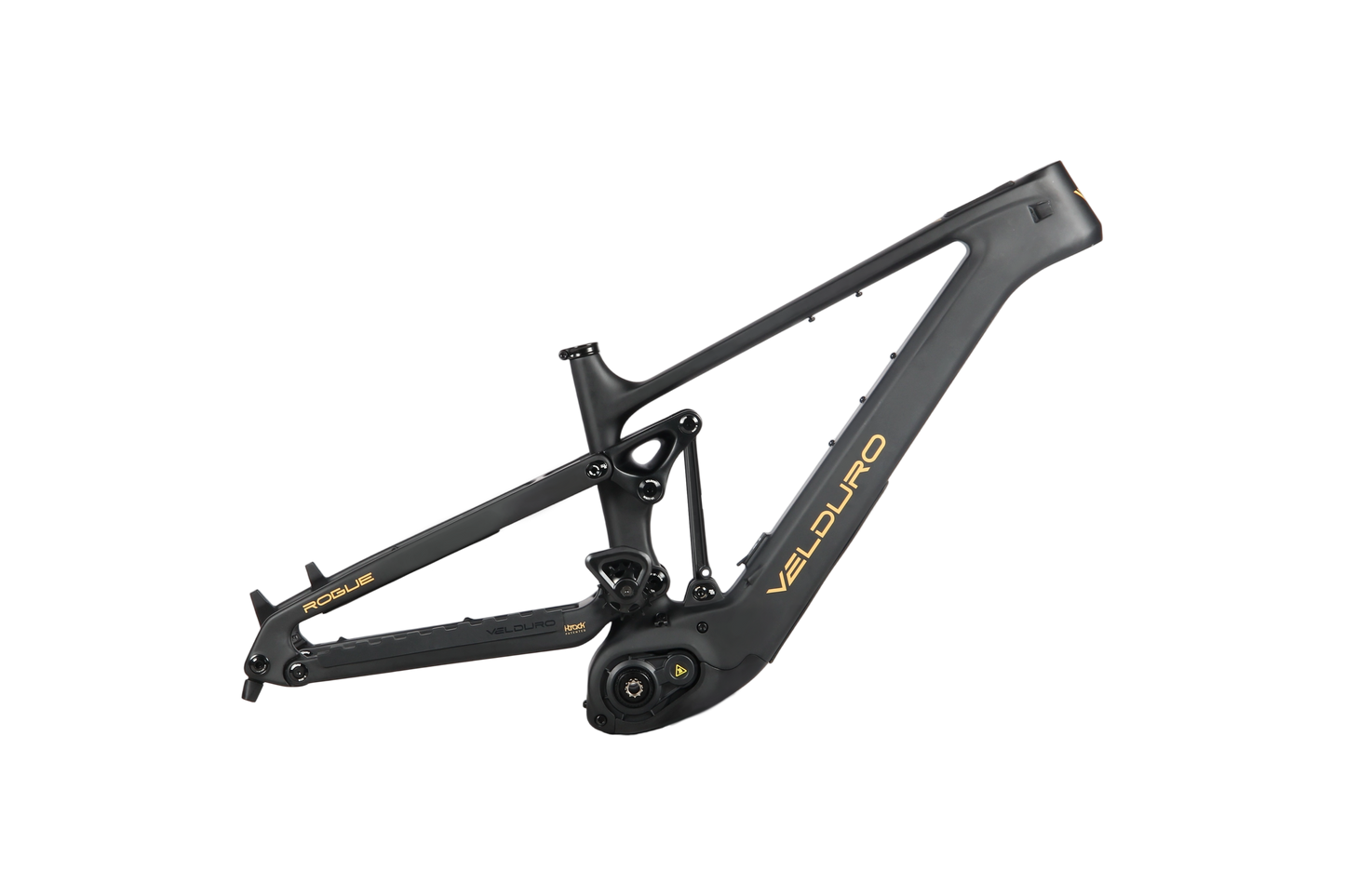

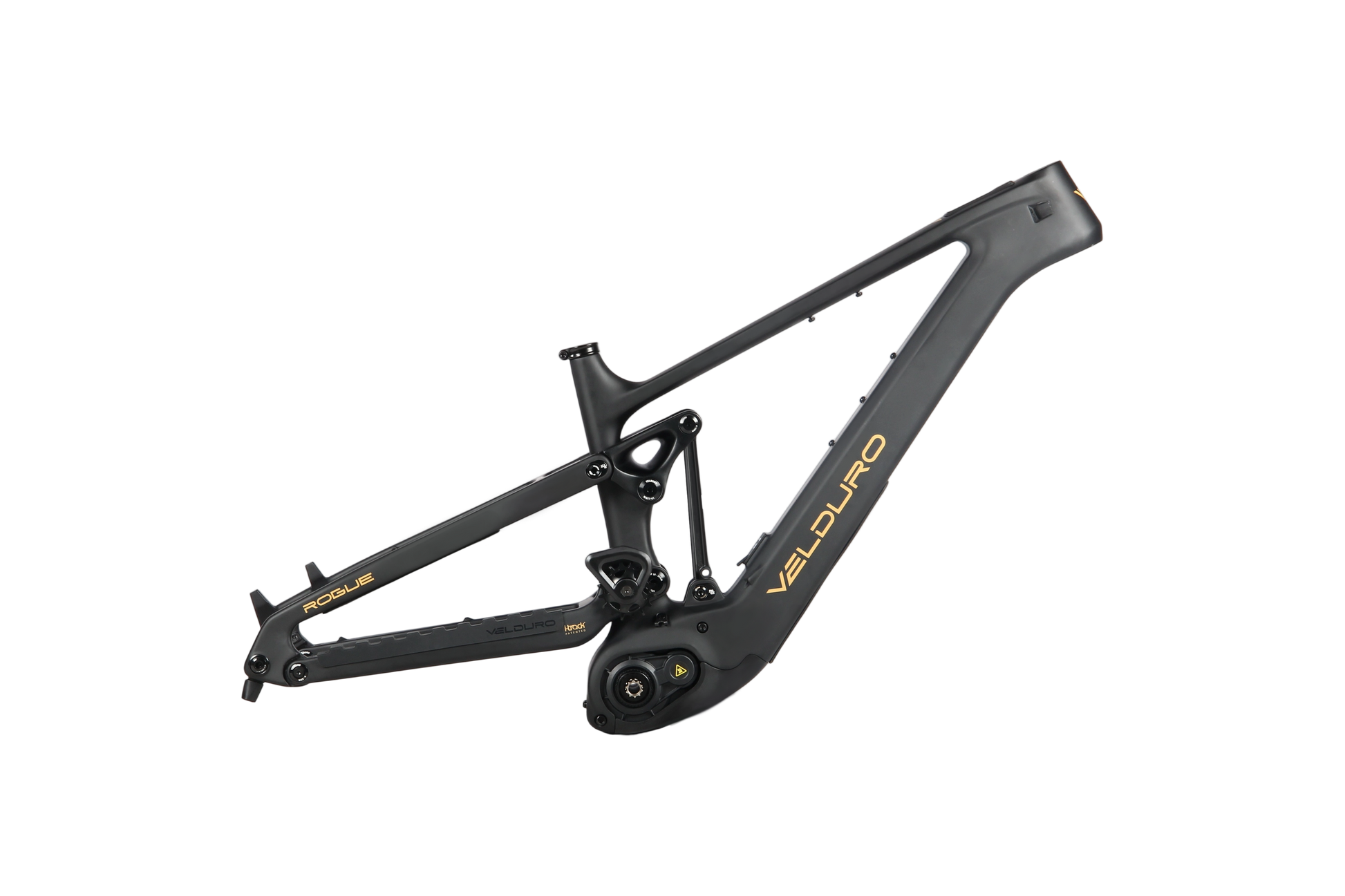

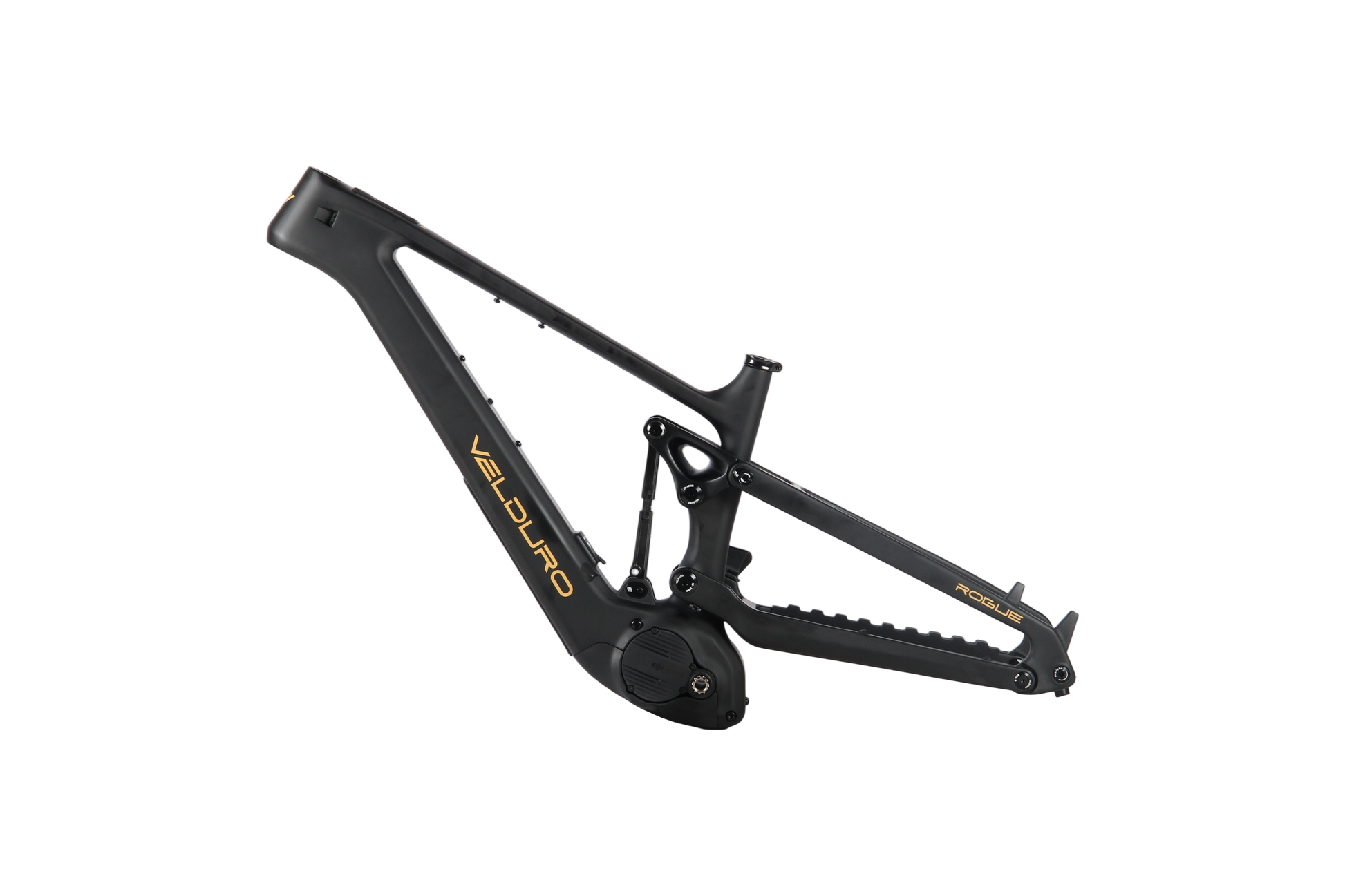

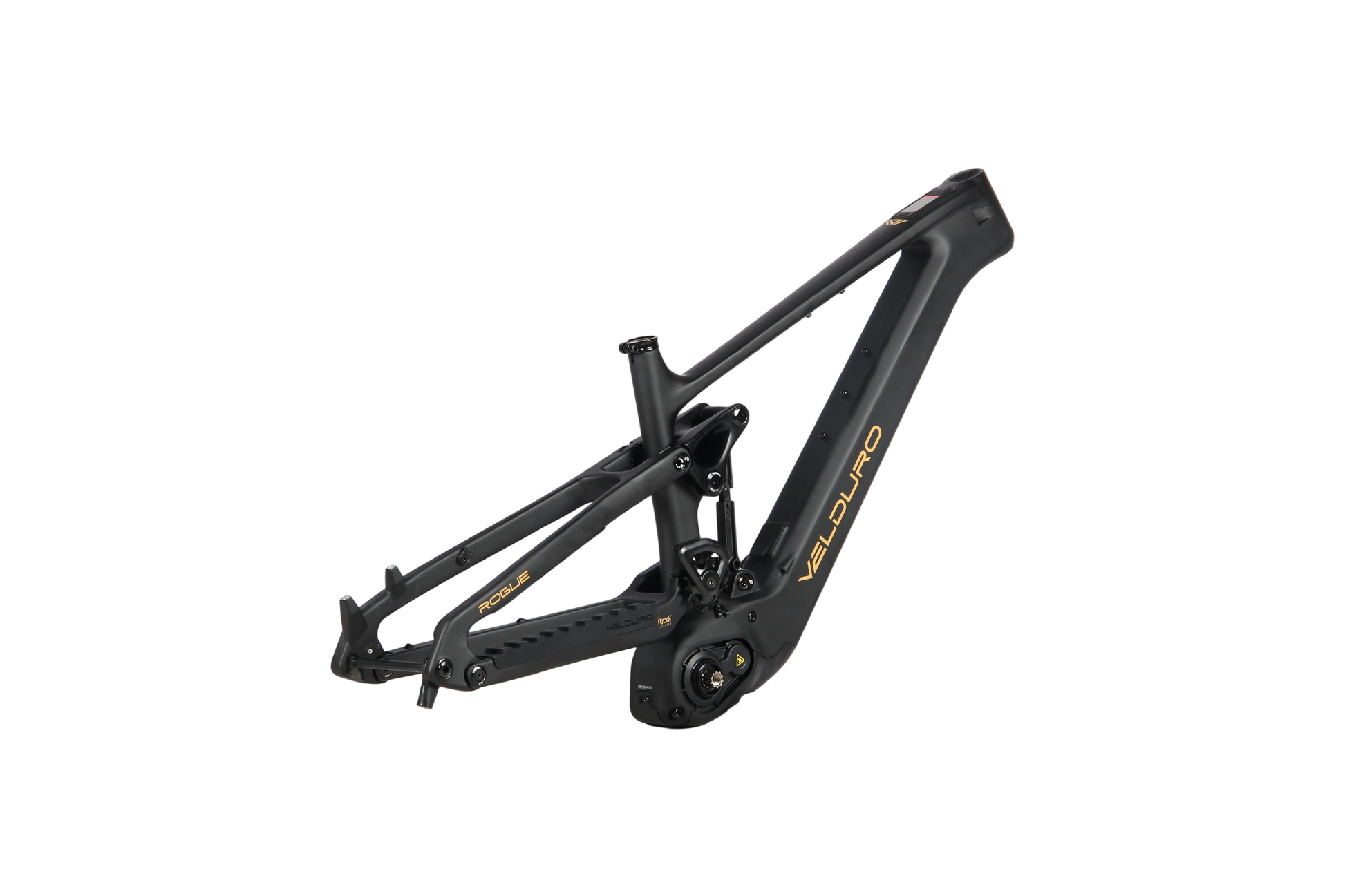

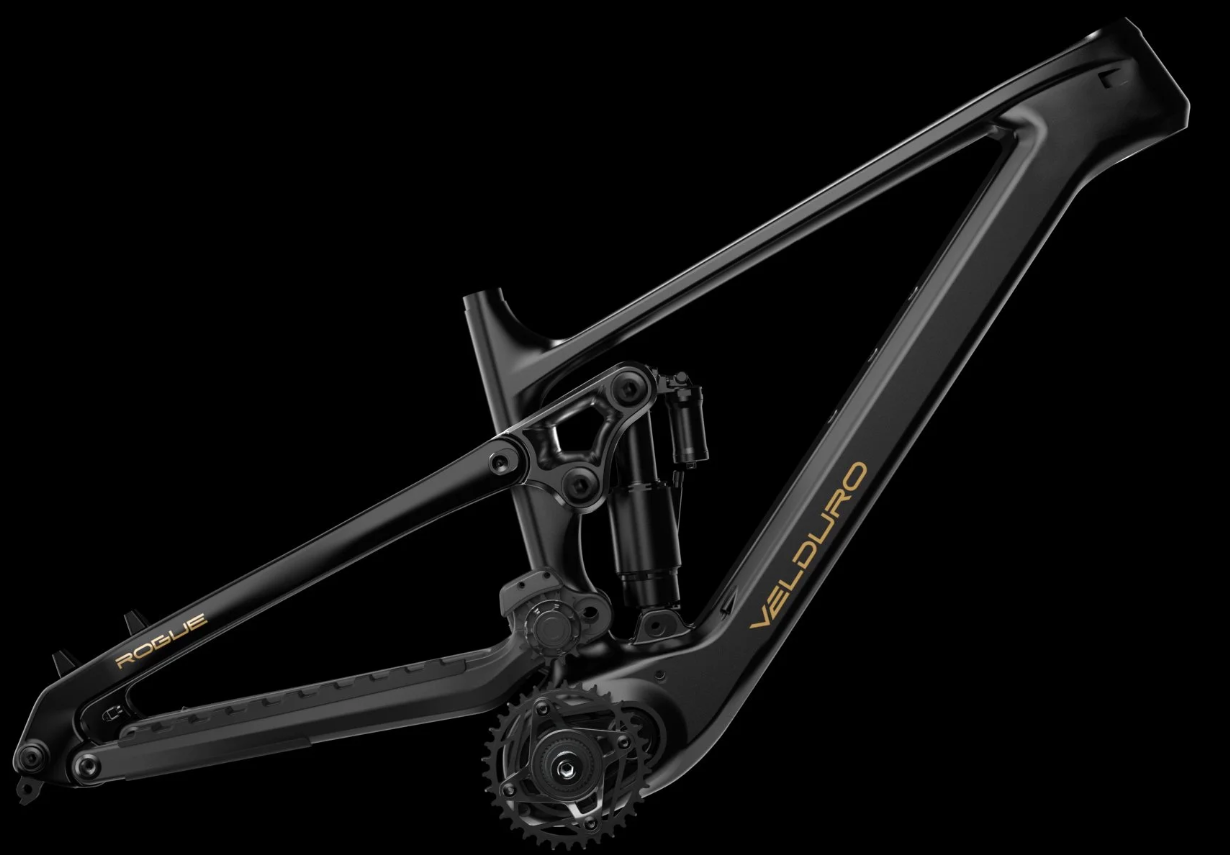

Carbon fibre, 165-172mm travel, mid pivot i-track frame with a 27.5"/29" flip chip and progression adjustment.

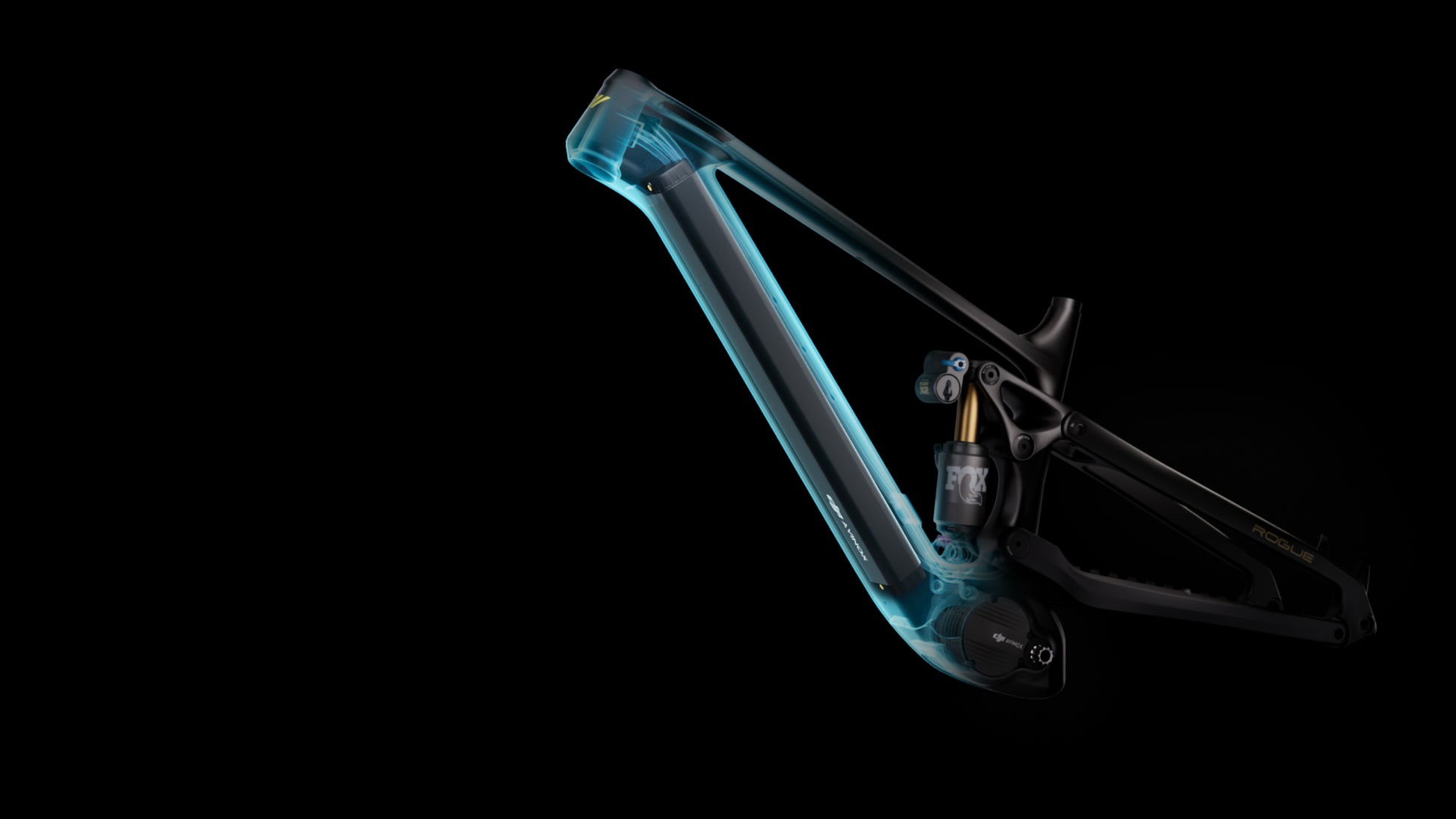

Avinox drive unit with a 800wh battery, Avinox display.

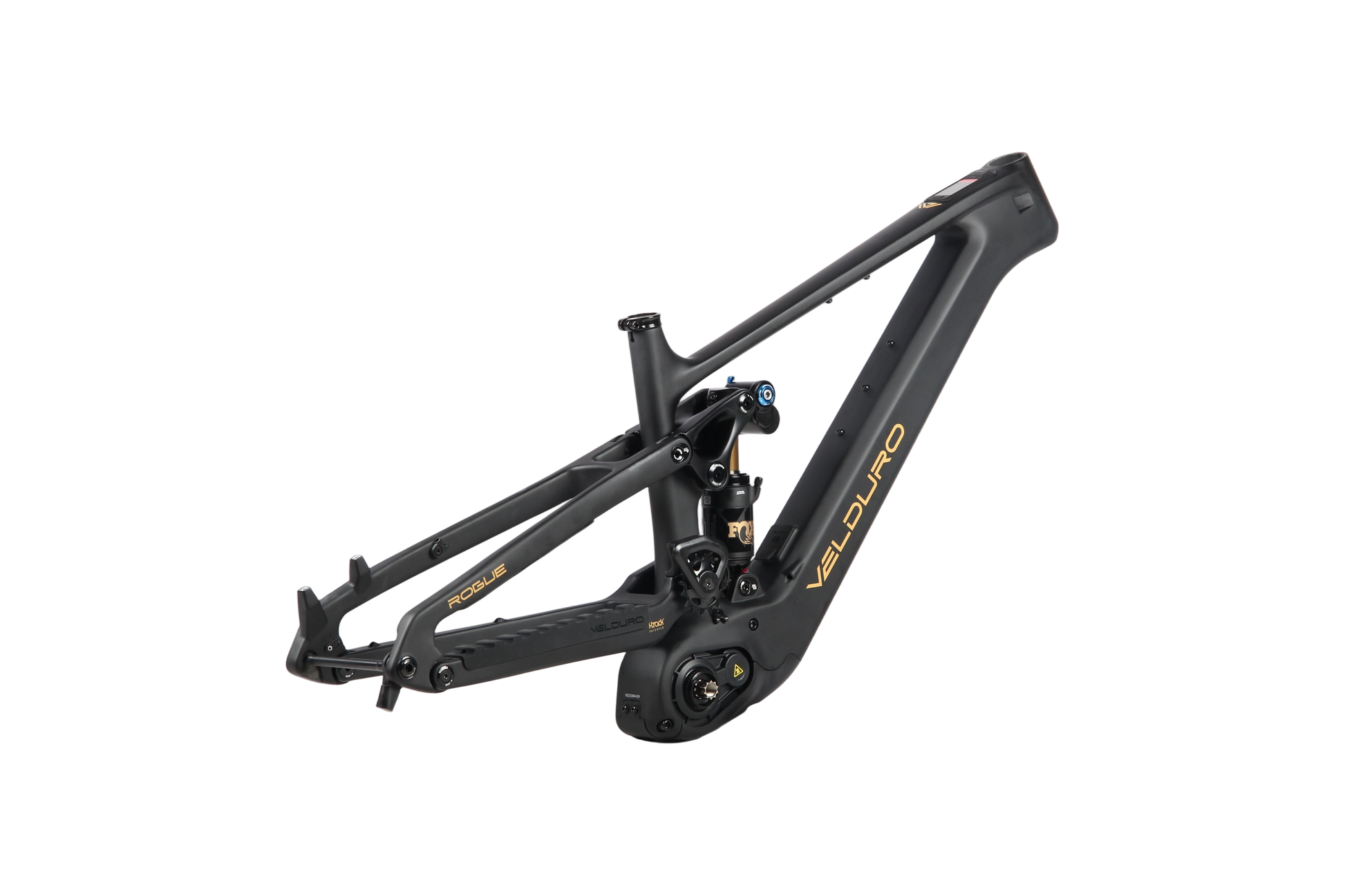

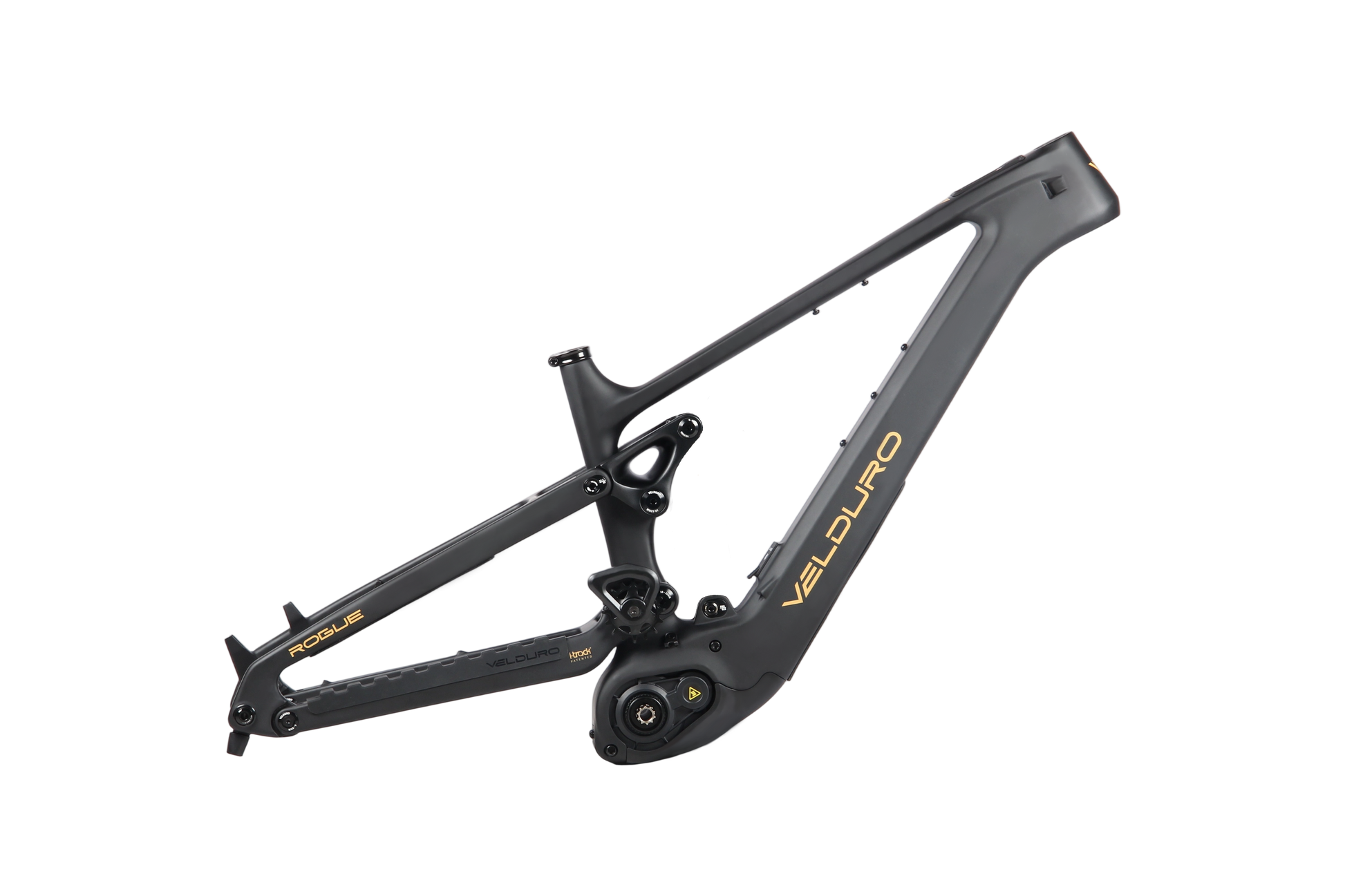

BYO shock or add on a FOX FLOAT X2 Factory with a custom tune.

Available in size small, medium, large and extra large.



View full details
Pre-Order Here

SPECIFICATIONS

FRAME AND SUSPENSION

Frame: Carbon fibre enduro eMTB, 165-172mm travel, mullet or 29", oversize bearings, 12x148 axle spacing

Headset: FSA No.57 44/56

Small parts:

  • rear axle
  • UDH
  • bottle cage bolts
  • seat post clamp
  • cable lugs

DRIVETRAIN

Cranks: Avinox ISIS 155mm

Chainring: 104 BCD spider with lock

BRAKES

WHEELS AND TYRES

CONTROLS

MOTOR AND BATTERY

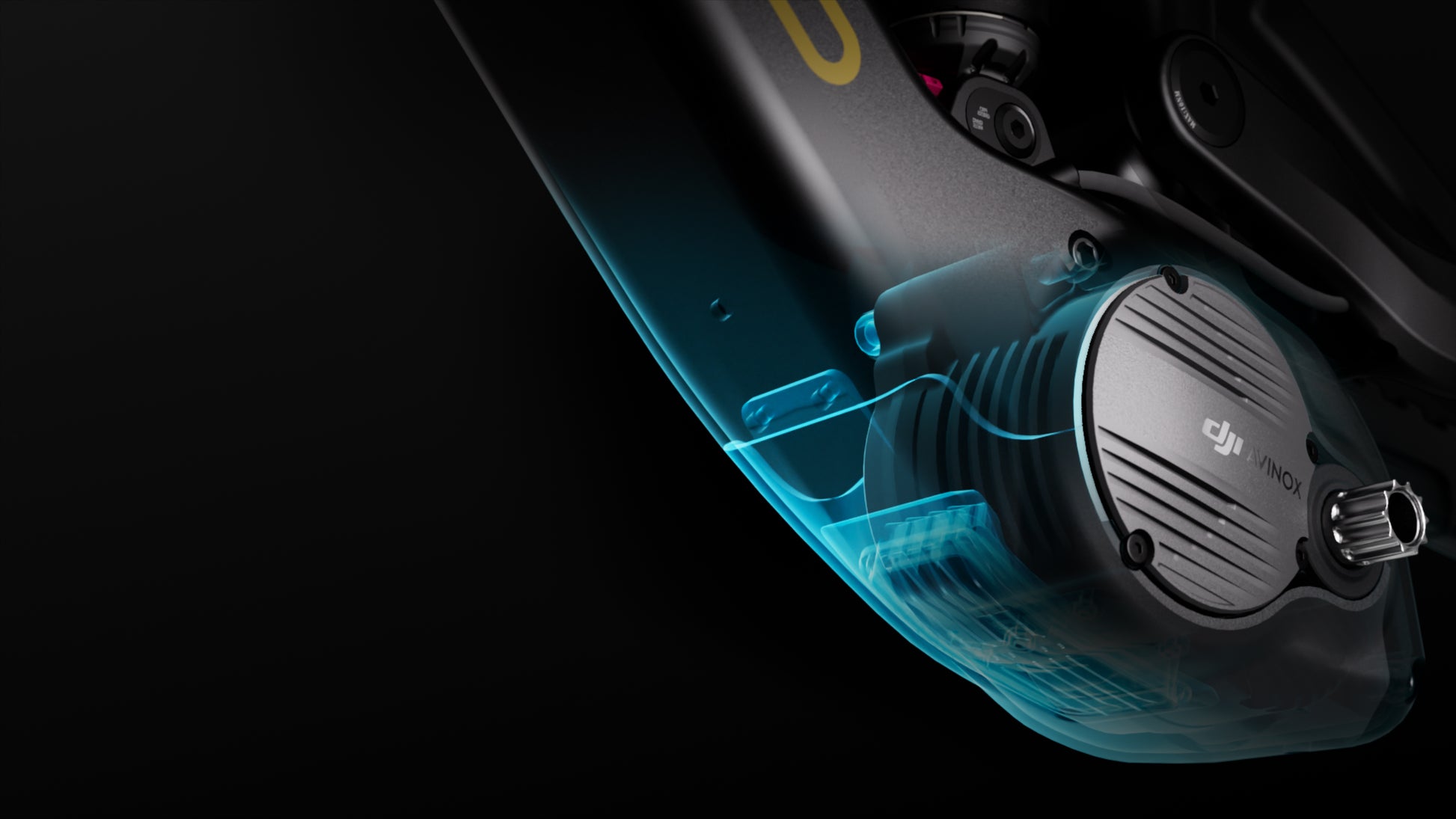

Motor: DJI Avinox M1 250W 105Nm, boost to 1000W 120Nm

Battery: DJI Avinox 36V 800Wh

Display: DJI AVinox 2" OLED

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W

Speed sensor and cables: included

GEOMETRY

Section image
29" or MX wheels, standard shock position S M L XL
A Seat tube length (mm) 390 410 430 465
B Head tube angle 63.5° 63.5° 63.5° 63.5°
C Top tube length (mm) 573.5 599.5 624 652
D Reach (mm) 440 466 485 515
E Actual seat tube angle 75.5° 75.5° 75.5° 75.5°
F Seat tube offset (mm) 30 30 30 30
G Effective seat tube angle 78° 78° 78° 78°
H Chainstay length unsagged (mm) 440 440 440 440
H Chainstay length MX at 30% sag (mm) 450 450 450 450
H Chainstay length 29" at 30% sag (mm) 448 448 448 448
I BB drop from MX rear wheel (mm) 12 12 12 12
J BB drop from front wheel (mm) 31 31 31 31
K Head tube length (mm) 110 110 120 125
L Axle to crown (mm) 584 584 584 584
M Fork offset (mm) 44 44 44 44
N Trail (mm) 140.1 140.1 140.1 140.1
O Stack (mm) 632.5 632.5 641.4 645.9
P Wheelbase (mm) 1230 1265 1300 1335
Recommended rider height (cm) 160-172 172-182 180-188 185-195
Learn more about the Rogue platform
